Quick Details
-
Model Number:
-
NT6V7AH
-
Battery Size:
-
151*34*94*99mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
1.07kg
-
Size:
-
151*34*94*99mm
-
Certificate:
-
CE,ROHS, UL,ISO,MSDS
-
Cycle use:
-
7.30-7.50V
-
Standby use:
-
6.75-6.90V
-
initial current:
-
less than 2.1A
-
Design Life:
-
3
-
Carton/pcs:
-
12
-
Usage:
-
emergency lighting system/solar panel
-
Color:
-
Black/White/Grey
-
Certification:
-
CE,ROHS,UL,ISO,MSDS
-
Warranty:
-
1-2years
Quick Details
-
Anode Material:
-
/
-
Application:
-
Toys, Power Tools, Home Appliances, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
NEATA
-
Model Number:
-
NT6V7AH
-
Battery Size:
-
151*34*94*99mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
1.07kg
-
Size:
-
151*34*94*99mm
-
Certificate:
-
CE,ROHS, UL,ISO,MSDS
-
Cycle use:
-
7.30-7.50V
-
Standby use:
-
6.75-6.90V
-
initial current:
-
less than 2.1A
-
Design Life:
-
3
-
Carton/pcs:
-
12
-
Usage:
-
emergency lighting system/solar panel
-
Color:
-
Black/White/Grey
-
Certification:
-
CE,ROHS,UL,ISO,MSDS
-
Warranty:
-
1-2years
PRODUCT FEATURE
Long service time, sufficient power, able to support the use of equipment for a long time.
APPLICATION FIELD
Our batteries are widely used in solar systems, UPS systems, safety systems and control system, telecommunication equipments and electronic appliance inverter, etc.

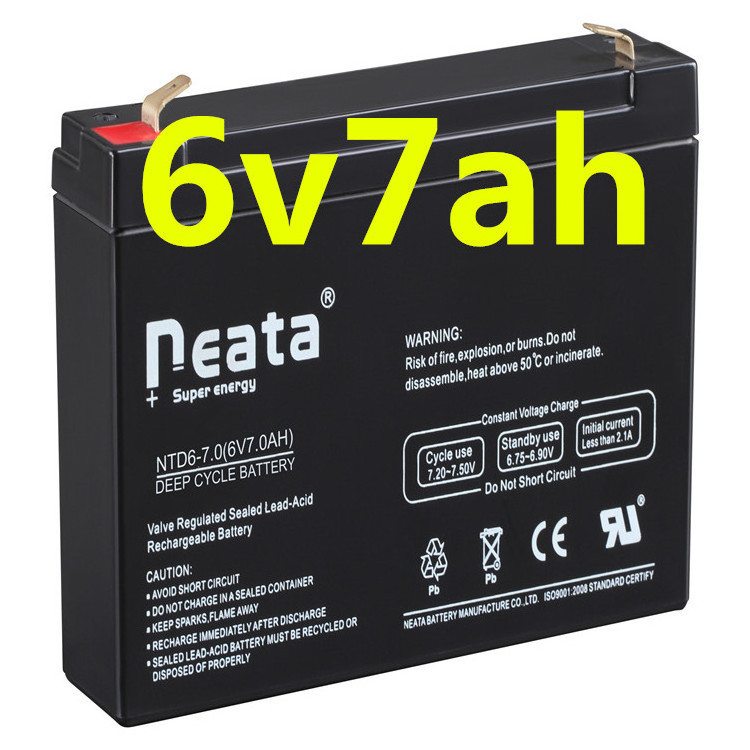

Products Description
|
Nominal Voltage
|
|
|
6V
|
||
|
Nominal Capacity (20 hour rate)
|
|
|
7.0Ah
|
||
|
Capacity
25℃(77°F)
|
|
20 hour rate (0.35A)
|
7.0Ah
|
||
|
|
|
10 hour rate (0.665A)
|
6.65Ah
|
||
|
|
|
5 hour rate (1.12A)
|
5.6Ah
|
||
|
|
|
1 hour rate (4.55A)
|
4.55Ah
|
||
|
Internal Resistance
|
|
Full Charged Battery 25℃(77°F)
|
≤30mΩ
|
||
|
Cyclic Life
|
|
50%(C20) Depth of discharge
|
800Times
|
||
|
Float Life
|
|
25℃(77°F) Float charge at 6.9V
|
About 3-5 Years
|
||
|
Capacity affected by Temperature
(20 hour )
|
|
40℃ (104°F)
|
102%
|
||
|
|
|
25℃ (77°F)
|
100%
|
||
|
|
|
0℃ (32°F)
|
85%
|
||
|
|
|
-15℃ (5°F)
|
65%
|
||
|
Self-Discharge
25℃(77°F)
|
|
Capacity after 3 month storage
|
90%
|
||
|
|
|
Capacity after 6 month storage
|
80%
|
||
|
|
|
Capacity after 12 month storage
|
62%
|
||
|
Charge (Constant Voltage) 25℃(77°F)
|
Cycle
|
Initial Charging Current Less than 2.1A
Voltage7.30-7.50V
|
|
||
|
|
Float
|
Voltage 6.75-6.90V
|
|
||
|
Battery
(L×W×H)
|
mm
|
151×34×99
|
|
|
|
inch
|
5.95×1.34×3.90
|
|
|
Box
(L×W×H)
|
mm
|
345×318×122
|
|
|
|
inch
|
13.6×12.6×4.81
|
|
|
Quantity Per Box
|
|
18 PCS
|
|
|
Net weight Per Cell
|
|
1.1Kg±20g
|
|
|
Net weight Per Box
|
|
19.8 Kg
|
|
|
Gross Weight
|
|
20 Kg
|
|
|
Component
|
Positive plate
|
Negative plate
|
Container
|
Safety valve
|
Terminal
|
Separator
|
Electrolyte
|
|
Raw Material
|
Lead dioxide
|
Lead
|
ABS
|
Rubber
|
Copper
|
Fiberglass
|
Sulfuric acid
|
