Quick Details
-

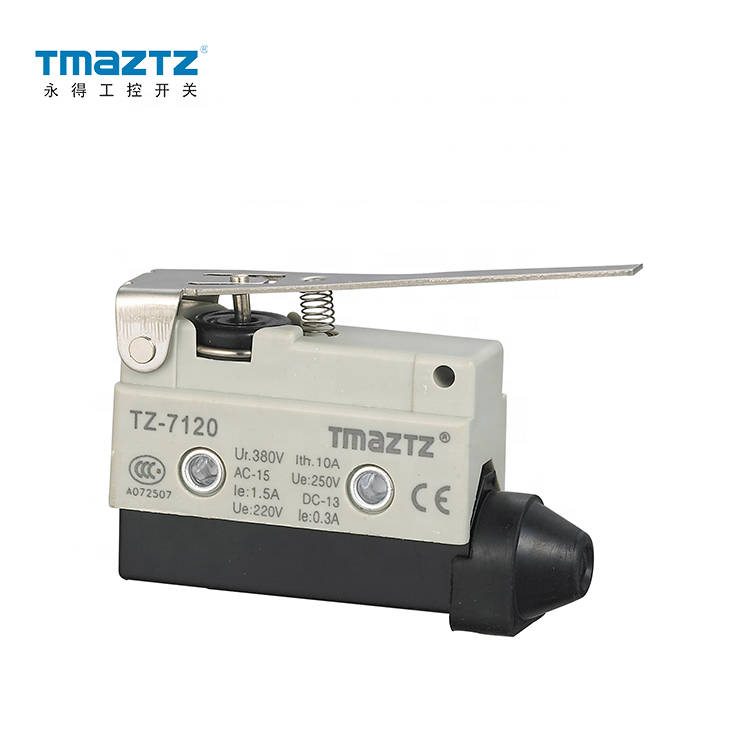

Model Number:
-
TZ-7120
-
Protection Level:
-
IP40
-
Operating Temperature:
-
-10℃-80℃
-
Max. Current:
-
10A
-
Certification:
-
CCC
Quick Details
-
Max. Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TMAZTZ
-
Model Number:
-
TZ-7120
-
Protection Level:
-
IP40
-
Operating Temperature:
-
-10℃-80℃
-
Max. Current:
-
10A
-
Certification:
-
CCC
|
Model No. |
TZ-7120 |
|
OF(Max.) |
600g |
|
RF(Min.) |
100g |
|
PT(Max.) |
2.0mm |
|
OT(Min.) |
5.0mm |
|
MD(Max.) |
0.8mm |
|
OP(mm) |
21.8±1.2 |
|
Operation speed |
0.01mm-50cm/sec |
|
Operating frequency |
Mechanical: 120times/minute, Electrical: 30 times/minute |
|
Contact resistance |
15mΩ max.(initial value) |
|
Insulation resistance |
100mΩ min.(at 500VDC) |
|
Dielectric strength |
1000VAC,50/60HZ for 1 minute between terminals of the same polarity |
|
1500VAC,50/60 HZ for 1 minute between currentcarrying and non-current carrying metal parts |
|
|
1500VAC,50/60 HZ for 1 minute between each terminal and ground |
|
|
Vibration |
10-55HZ,1.5mm double amplitude |
|
Ambient temperature |
-10-80 ℃ with no icing |
|
Life |
Mechanical: 10,000,000 operations above;Electrical: 500,000 operations above |
