- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
SKY2000-NOX
-
Detected gas:
-
Nitrogen Oxide (NOX)
-
Measure range:
-
0-10ppm,0-20ppm,0-50ppm,0-100ppm,0-500ppm,0-1000ppm,0-2000ppm
-
Sampling method:
-
Pumping suction
-
Alarm type:
-
Sound, light, vibration
-
Color:
-
Yellow, OEM
-
Size:
-
205*75*32mm
-
Weight:
-
300g
-
Charging method:
-
AC adapter, USB cable
-
Packing:
-
Aluminum alloy suitcase
Quick Details
-
Type:
-
Gas detector
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YuanTe
-
Model Number:
-
SKY2000-NOX
-
Detected gas:
-
Nitrogen Oxide (NOX)
-
Measure range:
-
0-10ppm,0-20ppm,0-50ppm,0-100ppm,0-500ppm,0-1000ppm,0-2000ppm
-
Sampling method:
-
Pumping suction
-
Alarm type:
-
Sound, light, vibration
-
Color:
-
Yellow, OEM
-
Size:
-
205*75*32mm
-
Weight:
-
300g
-
Charging method:
-
AC adapter, USB cable
-
Packing:
-
Aluminum alloy suitcase

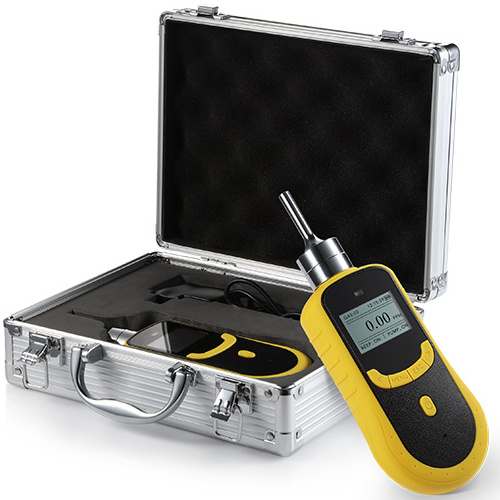

NOX exhaust gas analyzer
Characteristics & Functions
1. LCD dot matrix display, the gas type, unit, concentration, local time, temperature and max measure value (optional) can be showed on the screen.
2. Support Chinese and English operation, easy to shift.
3. The gas concentration unit PPM and mg/m3 can be shifted quickly.
4. Explosion-proof certification, explosion-proof grade: Exia Ⅱ CT4.
5. Monitor the NOX concentration in environment and enclosed space and alarm.
6. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.
7. One press to restore factory setting, free from the bother of mis-operation.
8. With temperature and pressure compensation, to realize gas concentration compensation under conditions of different temperatures or pressures.
9. Two stages alarm with sound and light, alarm point is settable.
10. Rechargeable lithium polymer battery of large capacity.
Specification
|
Gas Detected |
Nitrogen Oxide (NOX) exhaust gas |
||
|
Detection principle |
Electrochemistry |
||
|
Sampling Method |
Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection. |
||
|
Measure Range |
0-10ppm, 0-20ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-2000ppm, 0-5000ppm (range is optional and can be customized) |
||
|
Resolution |
0.001ppm(0-10ppm), 0.01ppm ( 0-20ppm, 0-50ppm, 0-100ppm), 0.1ppm( 0-500ppm), 1ppm( 0-1000ppm and above) |
||
|
Precision |
≤± 2% F.S. |
||
|
Signal Output |
High-speed data transmission by USB, available for data downloading and printing (optional function) |
||
|
Response Time |
≤10S |
Recovery Time |
≤10S |
|
Repeatability |
≤±1% |
Linearity error |
≤±1% |
|
Zero shift |
≤±1%(F.S/year) |
Display |
LCD dot matrix display |
|
Operating language |
Chinese/English |
Gas unit |
Units are switchable |
|
Temperature |
-40 ℃ ~70 ℃ |
Humidity |
0-95%RH |
|
Explosion-Proof |
Exia Ⅱ CT4 |
Degree of protection |
IP66 |
|
Alarm mode |
Sound, light, vibration |
Operating time |
100h(pump off) |
|
Dimensions |
205*75*32mm |
Weight |
300g |
Company Profile
Shenzhen YuanTe Technology Co., Ltd. is a high-tech enterprise integrated research and development, manufacturing and service of gas detectors and gas analyzers. By independent research and development, cooperative development and learning the latest developed countries’ technologies, YuanTe has guaranteed its leading position domestically and in line with foreign counterparts in its products and technologies. We welcome distribution agent, OEM, ODM. YuanTe would like to join hands with you to create a better future.
Our service:
1. For all our customers, we guarantee one year warranty, and life-long maintenance.
2.All inquiries will be replied in 24 hours.
3.We will provide technical support, our engineers will help to solve the problems you met.
4.We can provide OEM service.
5.We are manufacturer with own factory, welcome to visit our factory.
6.All products will be well checked and well packed before shipment, and qualification certificate will be provided.
