Quick Details
-
Dimension(L*W*H):
-
2800*2400*2700
-
Weight (T):
-
7 T
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
11
-
Max. Table Load(kg):
-
500 kg
-
Feed Speed(mm/min):
-
1 - 24 mm/min
-
Rapid Feed Speed(m/min):
-
24
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TENGDONG
-
Voltage:
-
380V
-
After-sales Service Provided:
-
Online support
-
Spindle center to column surface:
-
600mm
-
Spindle speed range:
-
8000rpm
-
Spindle diameter:
-
150mm
-
Spindle taper:
-
BT40/BT50
-
Spindle motor power:
-
11
-
Magazine capacity:
-
16/24/24
-
Weight:
-
6700
-
Certification:
-
ISO CE
-
Power:
-
11KW
Quick Details
-
Number of Axes:
-
4
-
Table Travel (X) (mm):
-
1000
-
Table Travel (Y) (mm):
-
500
-
Dimension(L*W*H):
-
2800*2400*2700
-
Weight (T):
-
7 T
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
11
-
Max. Table Load(kg):
-
500 kg
-
Feed Speed(mm/min):
-
1 - 24 mm/min
-
Rapid Feed Speed(m/min):
-
24
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TENGDONG
-
Voltage:
-
380V
-
After-sales Service Provided:
-
Online support
-
Spindle center to column surface:
-
600mm
-
Spindle speed range:
-
8000rpm
-
Spindle diameter:
-
150mm
-
Spindle taper:
-
BT40/BT50
-
Spindle motor power:
-
11
-
Magazine capacity:
-
16/24/24
-
Weight:
-
6700
-
Certification:
-
ISO CE
-
Power:
-
11KW
Product Description

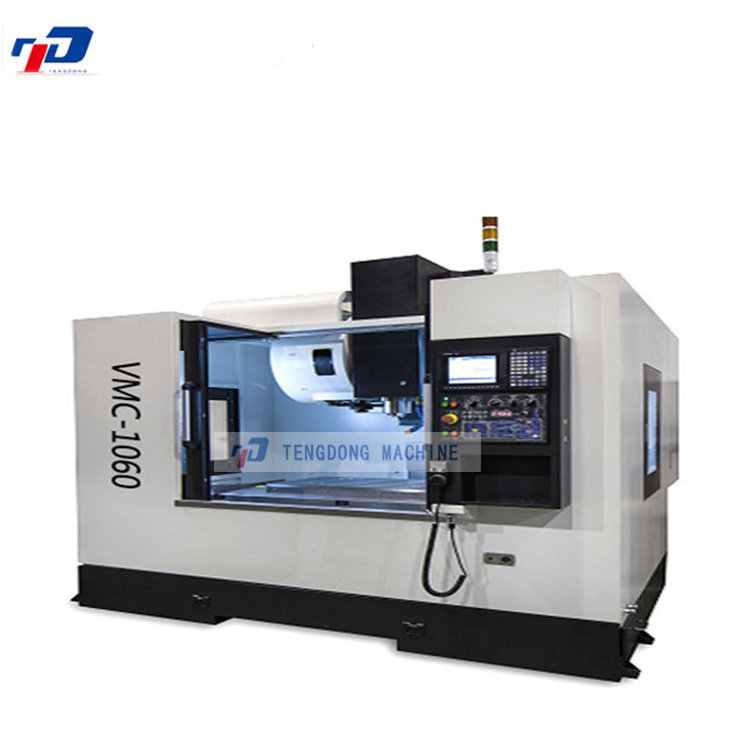

High precision vertical machine center VMC1060
CNC milling machine
CNC milling machine
Features:
1. the basic pieces of high-strength cast iron and by aging treatment to ensure the stability of precision;
2. X / Y / Z three-way feed with large pitch high-precision high-strength ball screw feed speed; servo motor using flexible
coupling and screw lead directly to ensure the stability of the machine;
3. the screw for the pre-stretch the pole greatly reducing the thermal deformation of the positioning accuracy of the impact.
Standard configuration: KND2000
Select the configuration : Siemens 828D
Mitsubishi
FANU OI mate MD
GSK
2. X / Y / Z three-way feed with large pitch high-precision high-strength ball screw feed speed; servo motor using flexible
coupling and screw lead directly to ensure the stability of the machine;
3. the screw for the pre-stretch the pole greatly reducing the thermal deformation of the positioning accuracy of the impact.
Standard configuration: KND2000
Select the configuration : Siemens 828D
Mitsubishi
FANU OI mate MD
GSK
Specification
|
Table size
|
mm
|
1200X600
|
|
Table Maximum load
|
kg
|
600
|
|
X/Y/Z axis travel
|
mm
|
1000X600X600
|
|
Distance between spindle center and column surface
|
mm
|
650
|
|
Distance between spindle end face and worktable surface
|
mm
|
100-700
|
|
X/Y/Z max. feed speed
|
mm/min
|
10000
|
|
X/Y/Z max. rapid traverse
|
m/min
|
24/24/20
|
|
Max. spindle speed
|
r/min
|
8000
|
|
Spindle taper
|
|
BT40
|
|
Spindle motor
|
kw
|
11/15
|
|
X/Y/Z axis servo motor
|
kw
|
2.5/2.5/2.5
|
|
X/Y/Z motor connection
|
|
direct
|
|
X/Y/Z guid rail form
|
|
3 axis linear guide
|
|
T slot (number-width-pitch)
|
|
5-18-100
|
|
Repeat Positioning Accuracy
|
mm
|
±0.003
|
|
Tools type
|
|
Armless: 16/arm:24
|
|
Max. Tool weight
|
kg
|
8
|
|
Max tool length
|
mm
|
250/350
|
|
Eletric Capacity
|
KVA
|
16
|
|
Machine Dimension
|
mm
|
3300x2550x2800
|
|
Machine weight
|
kg
|
7500
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Tengdong Machine Tool Co., Ltd. is a set of lathes, milling machines, drilling machines, planers, presses and other machine tool
equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies
equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies
