Quick Details
-
Network:
-
Network
-
Product Name:
-
360 PIR Motion Sensor
-
Usage:
-
Human movement detector
-
Working Voltage:
-
12v
-
Detecting Distance:
-
10m
-
Detecting Angle:
-
360° full angle
-
Working Current:
-
8mA~25mA
-
Installation:
-
2.4 ~ 3.6m height
-
Warranty:
-
2 Years
-
Certification:
-
CE
-
Size:
-
86*86*25mm
Quick Details
-
Place of Origin:
-
Shenzhen,China
-
Brand Name:
-
Prosec/Neutral/OEM brand
-
Model Number:
-
PR-360
-
Network:
-
Network
-
Product Name:
-
360 PIR Motion Sensor
-
Usage:
-
Human movement detector
-
Working Voltage:
-
12v
-
Detecting Distance:
-
10m
-
Detecting Angle:
-
360° full angle
-
Working Current:
-
8mA~25mA
-
Installation:
-
2.4 ~ 3.6m height
-
Warranty:
-
2 Years
-
Certification:
-
CE
-
Size:
-
86*86*25mm
Product Description

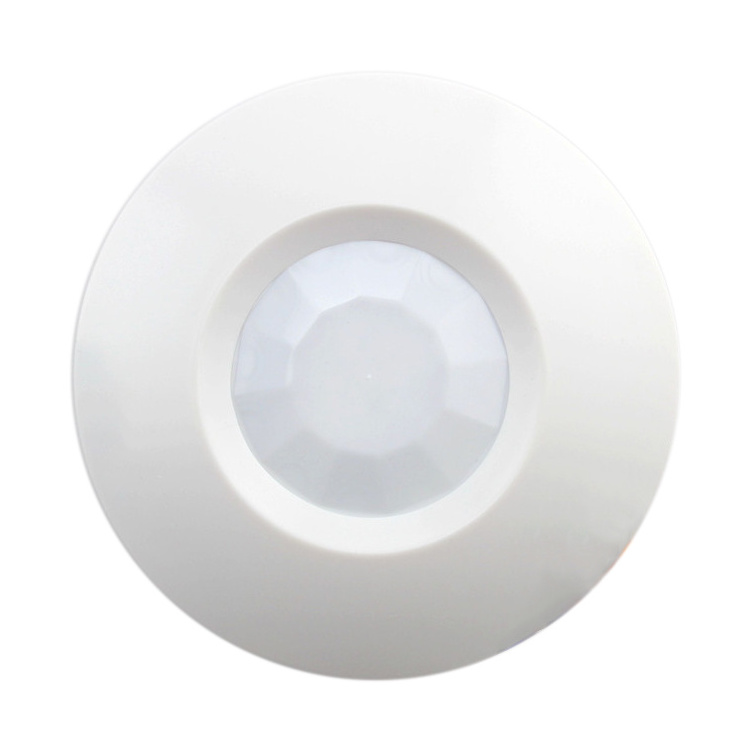

360 PIR Sensor
: The ceiling detector has a unique and durable spherical lens that can provide 360-degree detection. Unique patented temperature compensation and anti-
photometric detection circuit.
As for the change of local signal caused by curtain and small animal, it also has a high endurance. The ability to prevent false positives is far beyond other similar products.
Hogar Ceiling Mounted PIR Detector Passive Infrared Sensor 360 degree Full
Angle PIR Motion Sensor Alarm Wired 12V PIR Detector
Specification
|
Model
|
PR-360 ceiling mounted PIR detector
|
|
Working voltage
|
12V
|
|
Working current
|
8mA~25mA
|
|
Detection distance
|
10m
|
|
Detecting angle
|
360°
|
|
Alarm output
|
NC
|
|
Installation
|
1.8m~2.4m(on wall or conner)
|
|
Working temperature
|
-10°C-50°C
|
|
Anti-EMI
|
>20V/M(20MHz-1000MHz)
|
|
Anti-light interference
|
>9000LUX
|
|
Dimension
|
86*86*25mm
|
|
Sensor
|
Dual noise-free pyroelectric infrared transducer
|
