Quick Details
-
Product name:
-
Desktop Secure 4-Port DP KVM Switch
-
Auto Scan:
-
Yes
-
Data rate:
-
21.6Gbps
-
Beep Sound:
-
On/Off
-
Max. Resolution:
-
Up to 3840x2160@60Hz
-
Auto scan interval:
-
1~250 Seconds
-
Product Dimensions:
-
188 (L) x 72.5 (W) x 35.3 (H) mm
-
Casing material:
-
Aluminum Alloy
-
ESD protection:
-
Human body model - ±8kV (Air-gap discharge)
-
KVM Types:
-
Semi-DDM USB KVM
Quick Details
-
Model Number:
-
PKS0401A10
-
Brand Name:
-
TESmart
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Desktop Secure 4-Port DP KVM Switch
-
Auto Scan:
-
Yes
-
Data rate:
-
21.6Gbps
-
Beep Sound:
-
On/Off
-
Max. Resolution:
-
Up to 3840x2160@60Hz
-
Auto scan interval:
-
1~250 Seconds
-
Product Dimensions:
-
188 (L) x 72.5 (W) x 35.3 (H) mm
-
Casing material:
-
Aluminum Alloy
-
ESD protection:
-
Human body model - ±8kV (Air-gap discharge)
-
KVM Types:
-
Semi-DDM USB KVM
Product Description
4-Port DP KVM Switch
This 4-Port DP KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to share one set of keyboard, mouse and monitor with two PCs.
Features
⭐Using only 1 set of keyboard, mouse and monitor to control 4 PCs.
⭐Support resolution up to 3840*2160@60Hz.
⭐Support auto switching to monitor computers in a specified time interval.
⭐Available to use keyboard and mouse without any delay after switching inputs.
⭐Support hot plug, connect or disconnect devices to the KVM switch at any time without turning off devices.
⭐Support front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs.
⭐With extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to computer.
⭐With EDID emulators in each input port, keep PCs always having correct display information.
⭐Support mouse and keyboard pass through mode to improve KM compatibility.

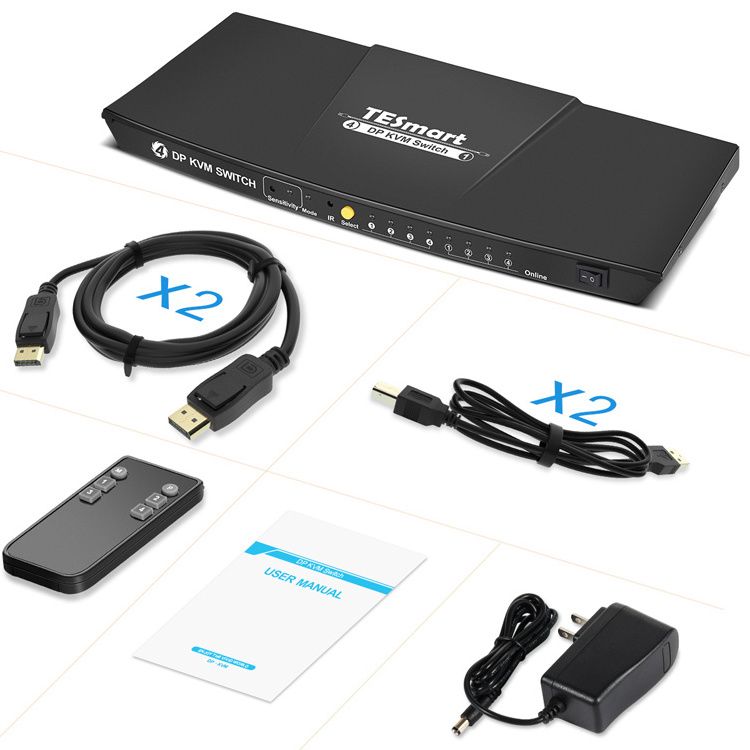

Packing list
1 * 4-Port DP KVM Switch
1 * DC 5V Power Adapter
1 * IR Remote Control
1 * Quick-Start Guide
Specification
|
PKS0401A10
|
4-Port DP KVM Switch
|
|
||
|
Functionality:
|
|
|
||
|
Auto Scan
|
Yes
|
|
||
|
Port selection
|
Front panel buttons
|
Yes
|
||
|
|
Keyboard hotkeys
|
Yes
|
||
|
|
IR remote control
|
Yes
|
||
|
|
Mouse gesture
|
Yes
|
||
|
|
Console commands
|
No
|
||
|
Technical:
|
|
|
||
|
Resolution
|
Up to 3840x2160@60Hz
|
|
||
|
Auto to get EDID
|
Yes
|
|
||
|
Data rate
|
18 Gbps
|
|
||
|
Auto scan interval
|
1~250 Seconds
|
|
||
|
Beep Sound
|
On/Off
|
|
||
|
OSD
|
No
|
|
||
|
Supported OS
|
Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system
|
|
||
|
Console ports
|
Keyboard emulation
|
1 * USB Type A
|
||
|
|
Mouse emulation
|
1 * USB Type A
|
||
|
|
USB 2.0 Hub ports
|
1 * USB Type A
|
||
|
|
Video /Audio
|
1 * DisplayPort Type A
|
||
|
|
RS232
|
NA
|
||
|
|
LAN
|
NA
|
||
|
System ports
|
USB Data
|
4 * USB Type B
|
||
|
|
Video / Audio
|
4 * DisplayPort Type A
|
||
|
ESD protection
|
Human body model - ±8kV (Air-gap discharge)
|
|
||
|
Mechanical:
|
|
|
||
|
Casing material
|
Aluminum Alloy
|
|
||
|
Product Dimensions
|
300 (L) x 117 (W) x 30 (H) mm
|
|
||
|
Item Weight
|
800g
|
|
||
