Quick Details
-
Positioning Accuracy (mm):
-
0.1 mm
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
180 mm
-
Repeatability (X/Y/Z) (mm):
-
0.1 mm
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
382*314*224mm
-
Weight (KG):
-
7.5
-
Product Name:
-
CNC 3018 Pro
-
Control System:
-
GRBL control
-
Spindle:
-
775 spindle motor (12-36V)24V 10000r/min
-
Supported System:
-
Windows XP,win 7,win8,win10
-
Frame Size:
-
420*355*280mm
-
Lead Screw:
-
T8 lead screw,lead 4mm
-
Step Motor:
-
42 step motor 1.3A 0.25N.M
-
Chuck Specification:
-
ER11 3.175MM
-
Construction:
-
Aluminum+Bakelite
-
Power Supply:
-
24V 5A
Quick Details
-
Working Table Size(mm):
-
300*180mm
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 10000 rpm
-
Positioning Accuracy (mm):
-
0.1 mm
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
180 mm
-
Repeatability (X/Y/Z) (mm):
-
0.1 mm
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
382*314*224mm
-
Weight (KG):
-
7.5
-
Product Name:
-
CNC 3018 Pro
-
Control System:
-
GRBL control
-
Spindle:
-
775 spindle motor (12-36V)24V 10000r/min
-
Supported System:
-
Windows XP,win 7,win8,win10
-
Frame Size:
-
420*355*280mm
-
Lead Screw:
-
T8 lead screw,lead 4mm
-
Step Motor:
-
42 step motor 1.3A 0.25N.M
-
Chuck Specification:
-
ER11 3.175MM
-
Construction:
-
Aluminum+Bakelite
-
Power Supply:
-
24V 5A
CNC Accessories
We offer additional options for your convenience, including Offline controllers, Drilling bits, and ER11 Collets. If you require any of these items, please feel free to contact our customer service for the latest pricing information.
Feature
2-In-1 Design
Replacing the spindle with a suitable power head, The CNC 3018 PRO can be used as a CNC Router or a Engraver.
Easy to Assembly
All the parts are in the package. It only takes 20-60 minutes to assemble it.
Offline Controller
Take control of your 3018-PRO Desktop CNC machine with offline control, provide manual control of your mill without any computer.
Upgraded Control Board
Integrated Driver Chip + Fixed Heat Sink + External Fan + Sturdy Case to extend the life of the control board. Self-contained short circuit protection to prevent it from burning due to overload.
High Quality and Affordable
Make more with the 80% aluminum body and take advantage of the added stability for milling a wider range of materials.
Specification
|
Control Software
|
GRBL Control
|
|
Construction
|
Aluminum + Plastic
|
|
Working Area
|
300*180*45mm
|
|
Spindle
|
775 spindle motor (12-36V) 24V 10000r/min
|
|
Chuck Specification
|
ER11 3.175MM (0-7mm can be equipped)
|
|
Drill Bits
|
Diameter:3.175mm Tip:0.1mm Length:26mm
|
|
Step Motor
|
42step motor 1.3A 0.25N.M
|
|
Power Supply
|
24V 5A
|
|
Supported System
|
Windows XP, win 7, win8, win10
|
|
Laser (options)
|
1W 2.5W 3W 5.5W 7W 10W 15W optional
|
|
Interface
|
USB
|
|
Processing instructions
|
CNC: G-CODE, TAB, NC, NCC files / Laser G-CODE, JPG, DXF files
|
Details Images

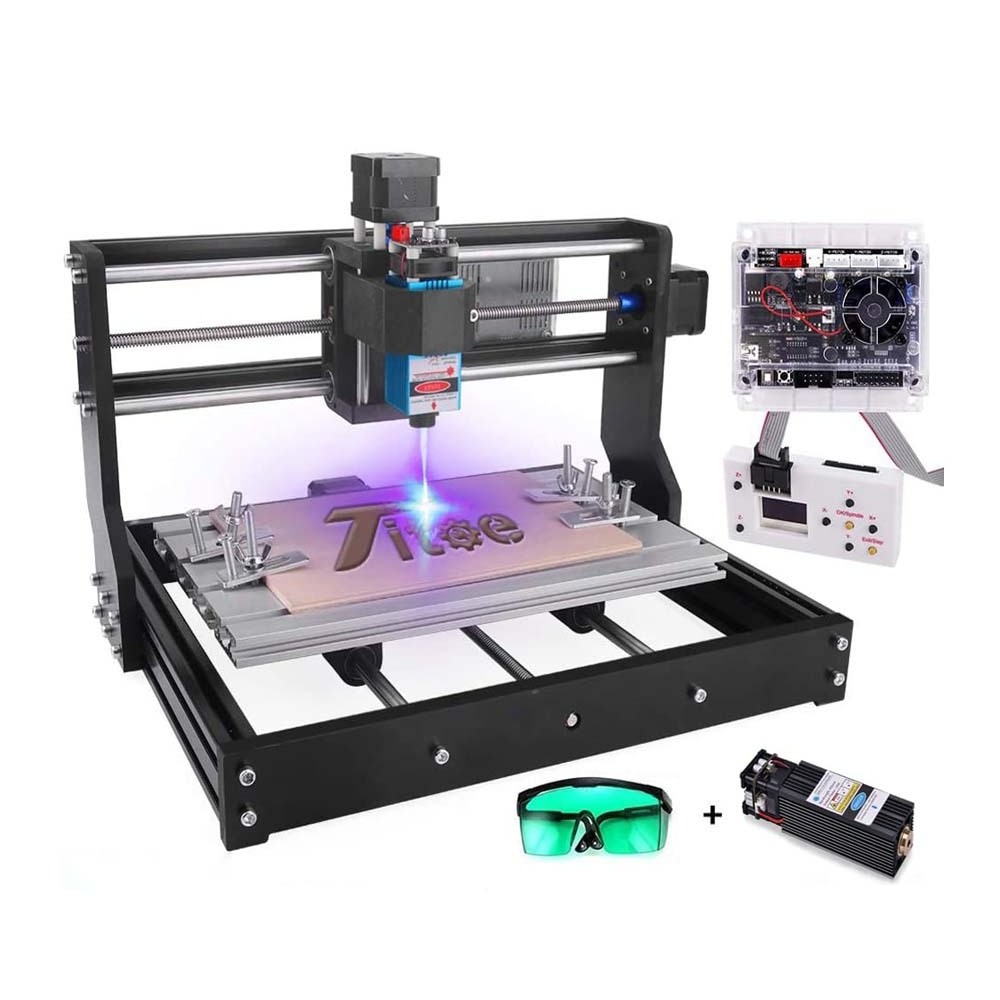

The CNC 3018 Pro with Laser Module
Designed for the absolute beginner, this model is a great tool for starting CNC learning. If wood-working is your hobby, you can use it to add features like curved words and exquisite patterns. If you are a student just learning CNC, it can help you engrave models which you are coding and designing.
CNC 3018pro Machine with Spindle Module
775 DC Motor Spindle
Grbl Software
CNC 3018pro Machine with Spindle Module
• Suitable for carve wood, plastic, acrylic, PCB CCL, soft metal like copper and aluminum and other like materials, but can not carve hard metal, jade and other hard materials.
• You will find the cnc 3018 pro is an excellent tool which allows you to try your DIY ideas on an inexpensive platform without the risk of damaging expensive equipment.
775 DC Motor Spindle
• Speed: 10000/min
• Rated Current: 1.5A
• Voltage: 24V
• High speed and high performance
Grbl Software
•It can support G-file not picture, such as nc, ncc, ngc, tap, tax.Port:Com*and Com # for option. If the first one does not work, you can choose the second one.Or check the manual.
Note:
•It does not re present the actual speed, and it represents the ratio.And this percentage is not linear.
•100 = 100/1000-------10%
•1000 = 1000/1000------100% max
Sturdy machine frame
Upadate Control Board
Offline Control
Sturdy machine frame
Sturdy aluminum and nylon, make the machine more work more stable, run and engrave better, one-piece molding, easy to install.We provide assembly video.
Upadate Control Board
GRBL 1.1 , The new control board adds fixed heat sink and external fan, as well as a sturdy shell, which greatly extends the
service life of the control board.
service life of the control board.
Offline Control
With offline controller module, you can control the CNC router without connecting to the computer. The computer and the controller can not be used at the same time.
Portfolio
Packaging Detail
Our Factory
Guangzhou Lingyue Technology Co.,LTD which is located in Guangzhou,China,is a leading manufacturer of Mini Desktop CNC Engraving Machine.We have lots of regular customers from home and abroad since 2015. They keep working with us not only for our cost-effective products,but also for our service. We have our own R&D Department,strict Quality Control Department,Sales & Services Department. No matter you are an enthusiastic hobbyist of CNC, or you want to start CNC business, our factory will be your best choice in the industry.
FAQ
1. Are you manufacturer or trading company?
we are manufacturer and we have our own factory.
2. Does this machine need to be assembled when I receive it?
This machine comes as a kit. You need to assemble it yourself. All tools and part are included in the kit. We will provide you the detailed manual.
3.What is the minimum order quantity for your products?
MOQ starts from ONE piece .
4.Which type of computer system can run its software?
The software only supports the Windows system.
5.How long is your delivery time?
Normally 3-5working days after receiving your payment;
For special requirement orders, delivery time is negotiable.
6. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
