Quick Details
-
Application:
-
Apartment
-
Design Style:
-
Traditional
-
Type:
-
Masonry Frame
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shuangma
-
Model Number:
-
BF.FL
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Apartment
-
Design Style:
-
Traditional
-
Type:
-
Masonry Frame
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shuangma
-
Model Number:
-
BF.FL
Product Description

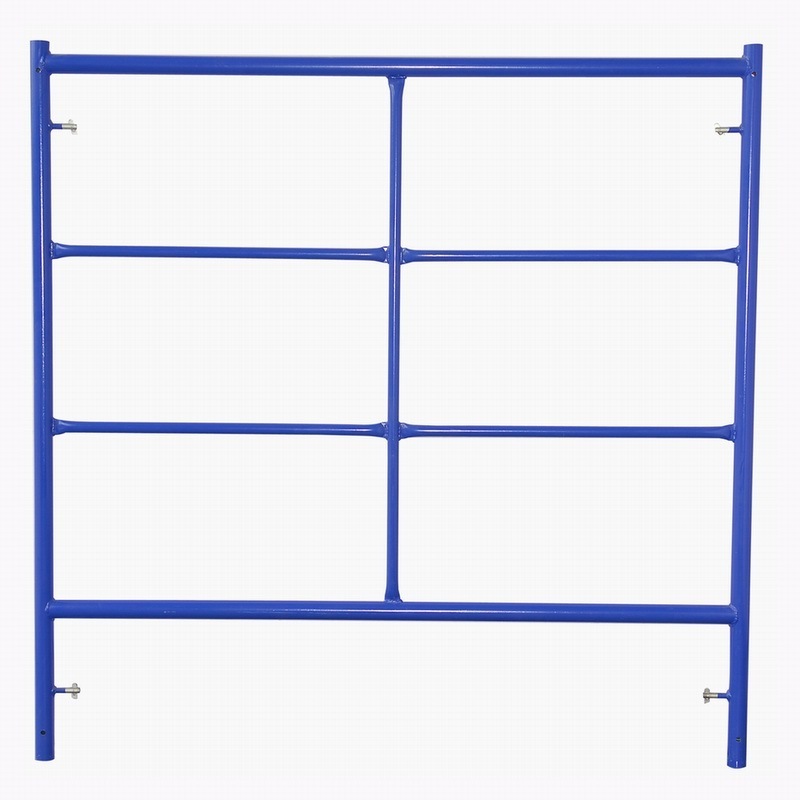

American Waco Style Flip Lock Series Scaffolding Frame
Flip Lock Series Mason Frames are used for plastering and outdoor access scaffolding for building construction, the featuers as bellow:
* Material Specification: Steel grade Q235/Q345, frame leg OD.42x2.3mm (OD.1.625"x0.09" thickness)
* Frame Width: 1524mm(5'), 1219mm(4'), 914mm(3')
* Locking Device: Flip Lock
* First lock down 178mm(7") on frame leg
* Locking Space: 1219mm(4'), 914mm(3'), 813mm(32"), 610mm(2')
* Finishing options: Hot dip galv, painting, powder coating
5'x6'7" Flip Lock Scaffold Frame Set includes bellow components:
SBF.567 5'X6'7" FRAMES:
2PCS
BR.PH104 10'X4' CROSS BRACES:
2PAIRS
CP3 COUPLING PIN W/ 1/8" COLLAR:
4PCS
SBJ.34060 24"SOLID BASE JACK:
4PCS
Masonry Frame / Box Frame with Flip Lock
|
Code
|
Description
|
Lock Space (A)
|
Weight(kg)
|
Weight(lbs)
|
|
SBF.FL.551
|
5'x5'1" Single Box Frame
|
48"
|
17.20
|
37.93
|
|
SBF.FL.567
|
5'x6'7" Single Box Frame
|
48",30"
|
19.68
|
43.39
|
|
DBF.FL.551
|
5'x5'1" Double Box Frame
|
48"
|
18.70
|
41.23
|
|
DBF.FL.567
|
5'x6'7" Double Box Frame
|
48",30"
|
21.18
|
46.70
|
|
SBF.FL.531
|
5'x3'1" Single Box Frame
|
24"
|
13.00
|
28.67
|
|
SBF.FL.541
|
5'x4'1" Single Box Frame
|
36"
|
14.71
|
32.44
|
|
DBF.FL.531
|
5'x3'1" Double Box Frame
|
24"
|
13.75
|
30.32
|
|
DBF.FL.541
|
5'x4'1" Double Box Frame
|
36"
|
15.47
|
34.11
|
Snap On Cross Brace / X-Braces for Scaffolding Frames
|
Code
|
Size BxA (Metric)
|
Size BxA (Imperial)
|
Weight(kg)
|
Weight(lbs)
|
|
BRPH.104
|
3048x1219mm
|
10'x4'
|
6.91
|
15.24
|
|
BRPH.103
|
3048x914mm
|
10'x3'
|
6.70
|
14.77
|
|
BRPH.102
|
3048x610mm
|
10'x2'
|
6.55
|
14.44
|
|
BRPH.84
|
2438x1219mm
|
8'x4'
|
5.76
|
12.70
|
|
BRPH.83
|
2438x914mm
|
8'x3'
|
5.51
|
12.15
|
|
BRPH.82
|
2438x610mm
|
8'x4'
|
5.32
|
11.73
|
|
BRPH.74
|
2134x1219mm
|
7'x4'
|
5.21
|
11.49
|
|
BRPH.73
|
2134x914mm
|
7'x3'
|
4.96
|
10.94
|
|
BRPH.72
|
2134x610mm
|
7'x2'
|
4.71
|
10.39
|
Specification
|
item
|
value
|
|
Type of Scaffolding
|
Mason Frame Scaffolding
|
|
Warranty
|
3 years
|
|
After-sale Service
|
Online technical support
|
|
Project Solution Capability
|
graphic design, 3D model design, total solution for projects
|
|
Application
|
Commercial/residential building, access scaffolding platform
|
|
Design Style
|
Modern
|
|
Model Number
|
BF.FL.
|
|
Brand Name
|
SHUANGMA
|
|
Place of Origin
|
Guangzhou, China
|
|
Material
|
Q235/Q345 Steel
|
|
Tubes and Thickness
|
Frame Leg: O.D 42mm, thickness 2.3mm (O.D 1.625"x0.09"t)
|
|
Frame Width
|
3', 4', 5'
|
|
Type of Welding
|
CO2 protected welding
|
|
Surface Treatment
|
Painted, Powder Coated, galvanized
|
Our Advantages
|
1
|
35 years of scaffolding experience and construction services.
|
|
2
|
Great production capacity of more than 1000tons per month which ensure faster delivery.
|
|
3
|
Modern factory and before/after sales technical supports.
|
|
4
|
Good reputation and relationship with China's top shipyard companies.
|
|
5
|
Varied types of scaffolding supply to satisfy different demands of clients.
|
|
6
|
Has own Powder Coating production line, to provide fine coating for scaffolding.
|
Manufacturing Technique
Material and Cutting Workshop
All materials, include CHS/RHS/SHS tubes, plate, PFC , angle steel, etc, will be inspected when entering into warehouse.
Automatic Cutting Machine
The maching can cuts tubes, PFC, angle steel in bundle, and cut the materials into the set length automatically.
Automatic Hole-Punching Machine
This machine is specially designed for hole-punching. It is controlled by computer and can be automtic feed and punching.
Steel Plank Production Line
The production line is specially fabricated steel planks in 240mm wide. It automatically do plank forming, punching and cutting process.
Automatic Welding Machine
This machine is specially designed for ring lock scafold vertical welding. It can weld 6 rossettes at the same time with high efficiency and high welding quality. Also ledger welding machine can do round welding for other scaffold items, such as steel props.
Powder Coating Production Line
The production line do good coating job for scaffold items. Before coating, we do sandblasting firstly to clean the steel surface so that the powder can be well electrostatic adherence.
Quality Assurance
We take many efficient measurements to ensure our scaffolding in good quality.
Material Inspection
When materials enter into warehouse, inspection for sizes, surface, mill certificate must be checked.
Material Test
Further flattening test/flaring test shall be done when there is special requirements for the products.
Welding Penetration Test
This test is to check if the welds of ring lock scaffold and assure the safety work when in construction.
Zinc Slag Cleaning
Clean the Zinc slag of tube inside for sure the screw jack can be inserted the vertical freely.
Thickness Gauge
To check the thickness of powder coat or hot dip galvanization, ensure the scaffolds are in good coating protection.
Third Party Inspection
Third party inspection is the last inspection for scaffolding before they are shipped out.
