Quick Details
-
Brand Name:
-
SG
-
Temperature Coeffi cient (30 to 65°C):
-
0.05 to 0.075%/K
-
Operating Temperature:
-
-20 to +80°C
-
Storage Temperature:
-
-40 to +80°C
-
Spectral Sensitivity:
-
UVC, according to DVGW W294-3(2006), f1Z = 0.15
-
Weight:
-
120 g
Quick Details
-
Usage:
-
UV Sensor Probe
-
Model Number:
-
UV-DVGW
-
Place of Origin:
-
Germany
-
Brand Name:
-
SG
-
Temperature Coeffi cient (30 to 65°C):
-
0.05 to 0.075%/K
-
Operating Temperature:
-
-20 to +80°C
-
Storage Temperature:
-
-40 to +80°C
-
Spectral Sensitivity:
-
UVC, according to DVGW W294-3(2006), f1Z = 0.15
-
Weight:
-
120 g

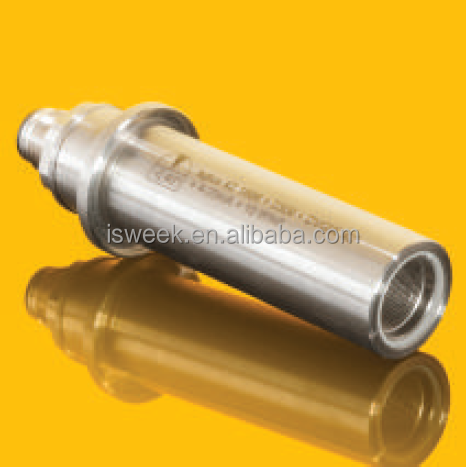

Probe type UV Sensor with 0-10V Output Signal UVC Spectral Sensitivity
Properties of this sensor
The "UV-DVGW" is a special sensor for DVGW certifi ed water purifi ers with 40° fi eld of
view. It complies with the standard DVGW W294-3(2006). The sensor contains integrated
electronics and is shielded against electromagnetic interference. Sensor confi guration
options are signal output type and measuring range. The signal output is either a voltage
of 0 to 5 V, a current of 4 to 20 mA, CAN bus interface or USB. The UV sensor is always
delivered calibrated according to DVGW requirements. A water-proof measurement
window ("WIN294") is available.
The measuring range of analog sglux UV sensors is 3 orders of magnitude corresponding to 5 mV to 5 V or 4.02 mA to 20 mA output. The highest sensitivity range is 1 nW/cm2 to 1 μW/cm2. The lowest sensitivity range is 20 mW/cm2 to 20 W/cm2. The digital sglux UV sensors contain an integrated microprocessor that converts the UV radiation into 125kbit/s digital CAN bus data. A large dynamic range of 5 orders of magnitude allows to measure low radiation and strong radiation without changing the probe. Customers may specify any range between the mentioned limits.
Page 3 of this datasheet allows to enter requirements of the needed sensor. After selection you may forward this document to factory or agent, or alternatively use the sensor probe online confi gurator. Please
contact us for assistance.
