Quick Details
-
Warranty:
-
1 year, One Year
-
Brand Name:
-
JIHPUMP
-
Model Number:
-
104KA
-
Place of Origin:
-
Chongqing, China
-
Cable Length:
-
Other
-
Outlet Size:
-
Other
-
Power:
-
Other
-
Theory:
-
Rotary Pump
-
Flow rate:
-
279ml/min
-
Color:
-
Blue, Yellow, Clear
-
Material:
-
Pump body: PA66+GF20, Pump cover: PC Pump roller: POM
-
Motor:
-
Stepper motor, DC gear motor, DC planetary gear motor
-
Tubing:
-
14# (ID1.6*OD4.8),16#(ID3.2*OD6.4), 25#(ID4.8*OD8)
-
Usage:
-
printing,lab, analytic instrument,enviromental device
Quick Details
-
Application:
-
Developing World Water Solutions, Drinking water treatment, Food and Beverage Industry, Washing and Cleaning, Wastewater Transport and Flood Control
-
Pressure:
-
Other
-
Voltage:
-
Other, 12V/24V
-
Warranty:
-
1 year, One Year
-
Brand Name:
-
JIHPUMP
-
Model Number:
-
104KA
-
Place of Origin:
-
Chongqing, China
-
Cable Length:
-
Other
-
Outlet Size:
-
Other
-
Power:
-
Other
-
Theory:
-
Rotary Pump
-
Flow rate:
-
279ml/min
-
Color:
-
Blue, Yellow, Clear
-
Material:
-
Pump body: PA66+GF20, Pump cover: PC Pump roller: POM
-
Motor:
-
Stepper motor, DC gear motor, DC planetary gear motor
-
Tubing:
-
14# (ID1.6*OD4.8),16#(ID3.2*OD6.4), 25#(ID4.8*OD8)
-
Usage:
-
printing,lab, analytic instrument,enviromental device
Corporate Strength:
Chongqing Jieheng Peristaltic Pumps Co., Ltd.
1.Peristaltic Pumps Professional Manufacturer and Supplier.
2.Focus on Peristaltic Pumps and OEM Pumps Customer Solutions for more than 16 years!
3.Million sets of peristaltic pumps been sold.
2.Focus on Peristaltic Pumps and OEM Pumps Customer Solutions for more than 16 years!
3.Million sets of peristaltic pumps been sold.
Lilian He(Europe , North and South America) :
WhatsApp:+8618983834629
Skype：+8618983834629
Email：alan@jihpump.com
April Huang( Asia and Africa ) :
WhatsApp:+8615703016080
Skype：jihpump
Email：april@jihpump.com
Products Description:
|
Features
|
|
|
|
|||
|
High precision & high performance
|
Long life and high reliability
|
Tool free tube replacement
|
Pump cover anti- dropping lock bead
|
|||
|
2 &4 rollers in option
|
3 kinds of motors in option
|
3 tube diameters
|
Various pump cover colors
|
|||
Hot Sale Products ：
|
Product Parameters
|
|
|
|
|||
|
Product Name
|

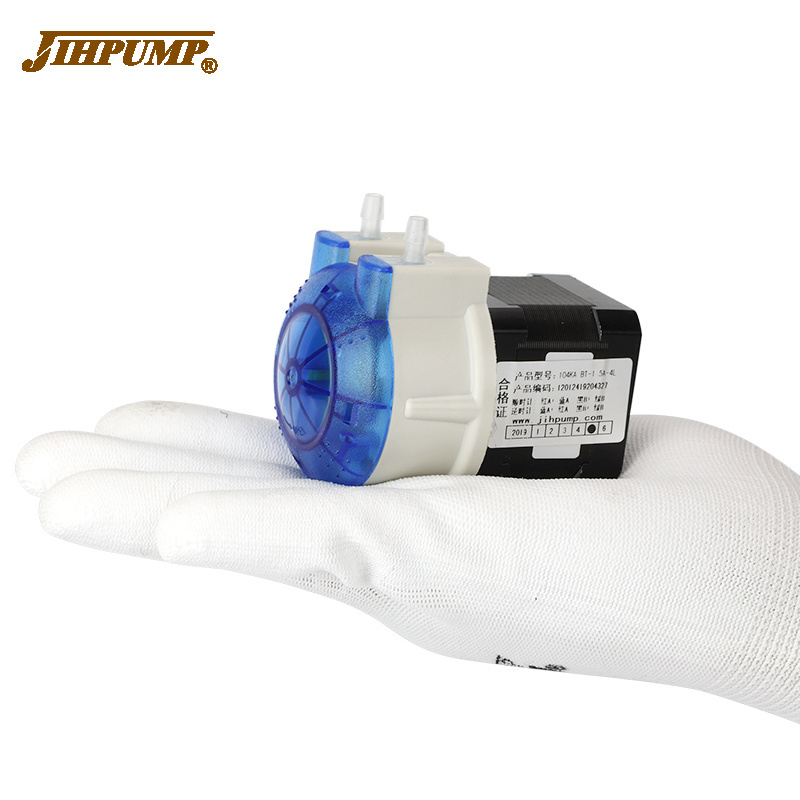

JIHPUMP 24v 12v 6v high flow easy loading pump mini micro small dosing stepper peristaltical pumps pumping peristaltic pump
|
|
|
|||
|
Product Model
|
104KA/ZL
|
104KA/ZLX
|
104KA/BT
|
|||
|
Flow Rate
|
0.6~260ml/min
|
12~258ml/min
|
30~279ml/min
|
|||
|
Motor Type
|
DC motor
|
DC Planetary Motor
|
Stepper Motor
|
|||
|
Motor Characteristics
|
1. The accuracy requirement is not high
2. Short interval operation
|
1. The accuracy requirement is not high
2. Short interval operation
|
1. Meet the requirements of high precision 2. Long time continuous operation
|
|||
|
Voltage and Current
|
DC 12V，4A/24V，2A
|
|
DC 12V,4A/24V，2A
|
|||
|
Power(W)
|
≤24W
|
≤24W
|
≤48W
|
|||
|
Motor Life
|
≥1000 hours
|
≥2000 hours
|
≥6000 hours
|
|||
|
Weight
|
170g
|
230g
|
350g
|
|||
|
The number of rollers
|
2 or 4 Rollers Optional
|
|
|
|||
|
Outlet Pressure
|
≤0.17MPa
|
|
|
|||
|
Noise
|
≤80dB
|
≤70dB
|
≤52dB
|
|||
|
Main Material
|
Pump cover: Polycarbonate ;
Wheels: Polyamide ;
Base: POM ;
Roller:POM
|
|
|
|||
|
Reference Flow (unit: ml/min,Liquid:Water)
|
|
|
|
|||
|
Product Model
|
104KA/ZL
|
104KA/ZLX
|
104KA/BT
|
|||
|
Motor Speed
|
5rpm
|
100rpm
|
300rpm
|
|||
|
Rollers
|
4
|
4
|
4
|
|||
|
Tube No.
|
Flow rate
|
/
|
/
|
|||
|
14#
|
0.5ml/min
|
12ml/min
|
30
ml/min
|
|||
|
16#
|
2ml/min
|
35ml/min
|
100ml/min
|
|||
|
25#
|
3ml/min
|
60ml/min
|
175ml/min
|
|||
JIHPUMP
has sold more than 1 million peristaltic pumps and has always provided users with products of high quality,high precision and high reliability,Meet the metering,transportation and sub packaging distribution needs of various industry applications.
Common Applications:
IVD Detection & Analysis
,
Medical testing
,
Analysis & testing equipment
,
Environmental
water quality analysis
，
Inkjet printing
，
Food seasoning distribution,
Hydroponic dosing
.
Applications Industry:
medical diagnosis, Environmental protection instrument, Analytical Instruments, Inkjet Ink, Washing Cleaning, Food and Drink, Experimental Research, Pharmaceutical Machinery, Smart Appliances, Industrial Machinery.
|
①Pump cover：Transparent pumpcover available in brown and blue
|
②Tube ：3 kinds of tube size optional
|
③Roller assembly：2-wheel flow is greater flow rate, 4-wheel pulse is lower
|
|
|
④Base：imported material high performance& high reliability
|
⑤Motor: normal DC motor; DC Planetary motor; Stepper motor
|
|
|
|
Motor selection &control method
|
|
|
|
|
||||
|
Select drive voltage and output speed according to application needs
|
|
|
|
|
||||
|
Model
|
104KA/ZL
|
104KA/ZLX
|
104KA/BT
|
|
||||
|
Motor Type
|
DC Motor
|
DC Planetary Motor
|
Stepper Motor
|
|
||||
|
DC motor control mode
|
|
|
|
|
||||
|
Constant speed operation : Control the start and stop of the pump through the power on and off
|
|
|
|
|
||||
|
Optional JZL-B Circuit board :
Product functions: start and stop, forward and reverse rotation, speed regulation Power supply power: DC 12 ~ 24V, 2A Speed regulation mode 1: built in potentiometer speed regulation Speed regulation mode 2: external potentiometer speed regulation (optional) Suitable motors: 28, 32, 36, 37, tt-555, rg50
|
|
|
|
|
||||
|
Four stepper motor control driver boards are optional
|
|
|
|
|
||||
|
Stepper motor cannot be powered on directly andneeds to be equipped with drive control
|
|
|
|
|
||||
|
①Optional JBT-AM
|
|
|
|
|
||||
|
Start and stop, forward and reverse, speed regulation Speed regulation mode 1: built-in potentiometer speed regulation Speed regulation mode 2: external potentiometer speed regulation (optional) Speed regulation mode 3: analog signal (preset 4-20mA, optional: 0-5V, 0-10V)
|
Start and stop, forward and reverse, speed regulation Speed regulation mode 1: built-in potentiometer speed regulation Speed
regulation mode 2: external potentiometer speed regulation (optional) Speed regulation mode 3: analog signal (preset 4-20mA, optional: 0-5V, 0-10V) |
|
|
|
||||
|
②Optional QBT-M2
|
|
|
|
|
||||
|
Product function: start and stop, forward and reverse, speed regulation Speed regulation mode: pulse frequency to adjust the speed
|
|
|
|
|
||||
|
③Optional JBT-AT
|
|
|
|
|
||||
|
Product function: start and stop, forward and reverse, speed regulation Speed regulation mode: MODBUS-RS485 digital communication control
|
|
|
|
|
||||
|
④Optional JBT-AP
|
|
|
|
|
||||
|
Product function: start and stop, forward and reverse, speed regulation. Speed regulation mode 1: PWM pulse to adjust the speed Speed regulation mode 2: external potentiometer to adjust the speed
|
|
|
|
|
||||
Pump head color selection :
Blue/Brown/
Red/White/
Transparent
/
Green/Purple/Tea
Certifications
CE,ISO,SGS Other various patterns and certifications
Certificate Details View, Click On "Company profile "in the company profile of shop home page or let me know, we'll send details to you.
