Flexible Silicone Rubber Heater 12V Heating Pad

Flexible Silicone Rubber Heater 12V Heating Pad

FOB Reference Price: Get Latest Price

≥1 Pieces

US $3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Hongtai

Dimension(L*W*H):: min 20mm*20mm

Weight:: 0.0004kg/c㎡ to 0.0007kg/c㎡

Warranty:: 1 year

Name:: 12V Heating Pad

Temperature Range:: -60~250°C

Thickness:: 1.5-4 mm

Insulation Resistance:: ≥5 MΩ

Power Deviation:: ±5%

Size Deviation:: ±0.5%

Wire Type:: Silicone Braided Wire

MOQ:: 1

Origin:: China

Certification:: CE,ROHS

Quick Details

Type:: Air Heater

Power Source:: Electric

Voltage:: 12V, 12v

Place of Origin:: Jiangsu, China

Brand Name:: Hongtai

Dimension(L*W*H):: min 20mm*20mm

Weight:: 0.0004kg/c㎡ to 0.0007kg/c㎡

Warranty:: 1 year

Name:: 12V Heating Pad

Temperature Range:: -60~250°C

Thickness:: 1.5-4 mm

Insulation Resistance:: ≥5 MΩ

Power Deviation:: ±5%

Size Deviation:: ±0.5%

Wire Type:: Silicone Braided Wire

MOQ:: 1

Origin:: China

Certification:: CE,ROHS

Product Description

Silicone rubber heater

The silicone rubber heaters have advantage of thinness, lightness and flexibility. It is made of nickel,chromium alloy wire and insulating materials,Quickly heating,high thermal efficiency and long use life .

Voltage	12V to 480V	Thickness	1.5mm/1mm/2MM/3MM
Wattage	0.1-1.2W/CM2	Insulation Ohm	More than 5MΩ
Min Size	10*10mm	Max Temperature	250 degree
Max Size	2000*10000mm	Wire Tension	15N*15N

Thermocouple Type	K/J/Without			J	Without
Controller	Dial	Digital	Anti-explosion
Plug	US	European	British

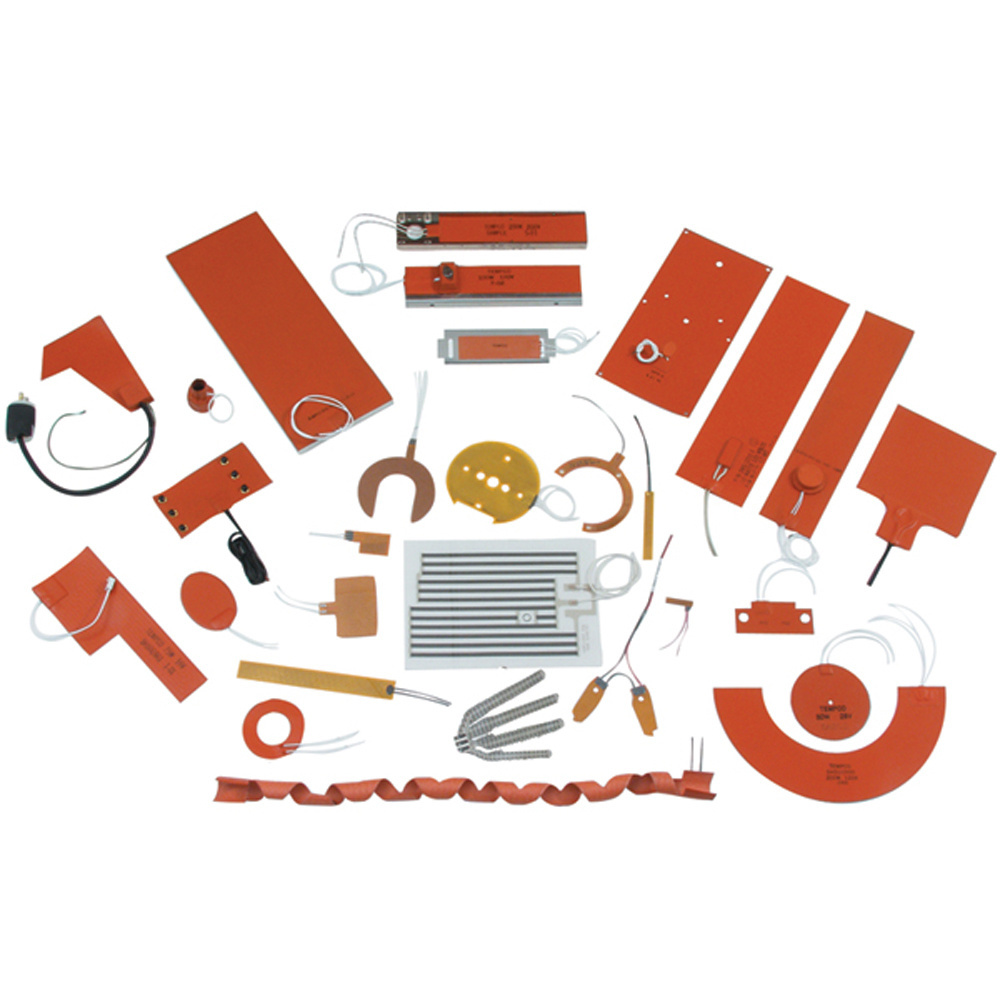

Product Show

How to make a order of silicone rubber heater:
Size, Wattage & Voltages are available on request.

1)size.
When looking for a heater quote, the size of silicone rubber heater is needed.like width,length,thickness etc.
2)Voltage
The right voltage is according to your application.low voltage:like 12V silicone rubber heater,24V silicone rubber heater.
3)Wattage
The right wattage is essential for silicone rubber heaters. The wattage needs to be matched to the heater area heated, it’s intended resistance, temperature, and materials.
4)Wire type
The wire type is also according to your application, you can refer to the picture of silicone rubber wire type.

You can choose to add the following configuration according to your request
