Quick Details
-
Product name:
-
Coaxial Cable rg59 with power
-
Application:
-
CCTV/CATV/Camera
-
Color:
-
Black White/Customized
-
Certification:
-
CE/ROHS/ISO9001
-
Jacket:
-
PE LSZH PVC
-
Shield:
-
Al Foil+40-95% Braiding
-
Conductor:
-
CCA/CCS
-
Length:
-
305m 1000ft
-
Impedance:
-
75Ohm
Quick Details
-
Brand Name:
-
JIANYE
-
Model Number:
-
RG59+2DC
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
Coaxial Cable rg59 with power
-
Application:
-
CCTV/CATV/Camera
-
Color:
-
Black White/Customized
-
Certification:
-
CE/ROHS/ISO9001
-
Jacket:
-
PE LSZH PVC
-
Shield:
-
Al Foil+40-95% Braiding
-
Conductor:
-
CCA/CCS
-
Length:
-
305m 1000ft
-
Impedance:
-
75Ohm
Products Description

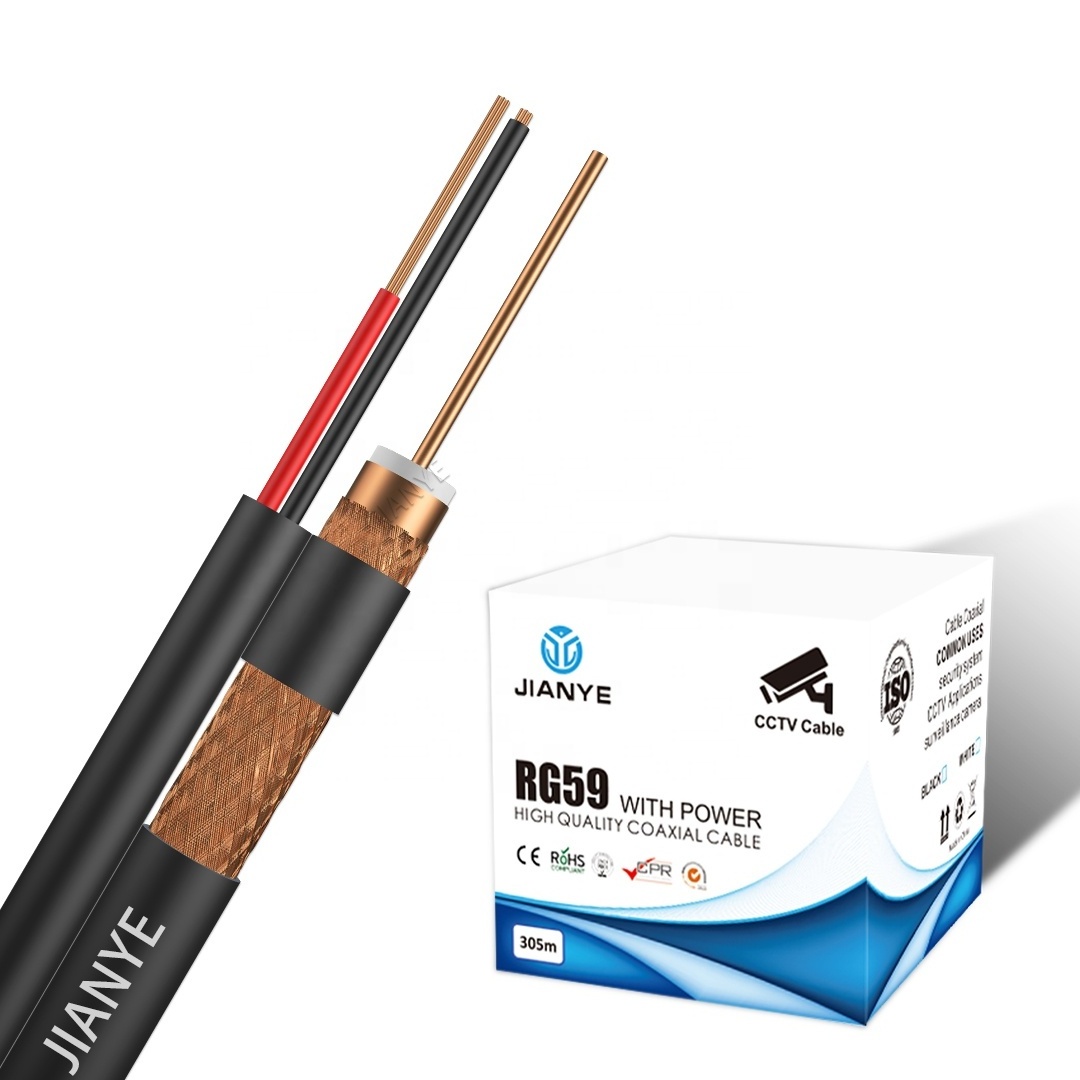

rg59 coaxial cable with power rg59 cctv cable
Details Images
|
Structure
|
Material
|
RG59 DUAL
|
RG59 TRI
|
RG59 QUAD
|
||
|
Conductor
|
BC/CCS
|
0.81mm(20AWG,0.032'')
|
|
|
||
|
Dielectric
|
FPE
|
3.66mm(0.144'')
|
|
|
||
|
1st Shield
|
Al Foil
|
100%, Overlap>2mm
|
|
|
||
|
2nd Shield
|
BC or Al Braiding
|
40%-95%
|
|
53%
|
||
|
3rd Shield
|
Al Foil
|
-
|
100%, Overlap>2mm
|
|
||
|
4th Shield
|
BC or Al Braiding
|
-
|
-
|
40%
|
||
|
Jacket PVC/PE
|
Outer Diameter
|
6.1mm(0.24'')
|
6.1mm(0.24'')
|
6.73mm(0.265'')
|
||
|
|
Nominal Thickness
|
0.81mm(0.032'')
|
0.76mm(0.030'')
|
0.86mm(0.034'')
|
||
|
Messenger
|
Steel
|
1.30mm
|
|
|
||
Application
