Quick Details
-
Place of Origin:
-
China
-
Machine Weight:
-
830 kg
-
Bucket capacity:
-
0.15 m3, 0.15 m3
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
mini skid steer loader
-
Certification:
-
ISO CE
-
Max Working Height:
-
2143mm
-
Max Dumping Height:
-
1488mm
-
Rated Power (KW):
-
17.1KW(23hp)
-
Rotating Speed:
-
3000rpm
Quick Details
-
Engine Brand:
-
HONDA
-
Power:
-
17.1KW(23hp)
-
Brand Name:
-
HIGHTOP
-
Place of Origin:
-
China
-
Machine Weight:
-
830 kg
-
Bucket capacity:
-
0.15 m3, 0.15 m3
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
mini skid steer loader
-
Certification:
-
ISO CE
-
Max Working Height:
-
2143mm
-
Max Dumping Height:
-
1488mm
-
Rated Power (KW):
-
17.1KW(23hp)
-
Rotating Speed:
-
3000rpm
HT430 Mini skid steer loader(Wheel type and crawler type)
The Certificate our company approved:
HT430 Mini skid steer loader (Wheel type and crawler type)
1. Two handles to achieve operation of working, lifting and dumping.
2. 4 wheels drive, suitable for various environment.
3. Safe pedal, stand operating way.
4.360 ° pivot steering. Save space, Flexible and operating easily.
5.Compact design can for any small space working.
6. Quick hitch system makes fastening attachments quickly and ea s ily.
7.A loader serves several functions. HT430 can with various attachment for different working need. Quick hitch system, attachments can be changed quickly and easily.
8.Compare with same kind of products, HT430 mini loader is with higher lifting height.
please contact Cassie wang whats app +86 15263720091(24 hours online), for more discount.
The spec. of HT430 Mini skid steer loader (Wheel type and crawler type) :
| Briggs Stratton 3864 | Rato R740 | |
| Lifting Capacity KG | 380 | 380 |
| Engine Type | Briggs Stratton 3864 | Rato R740 |
| Engine Capacity(kw/Hp) | 18.2/23 | 15.5KW |
| Displacement cm3/Number of cylinders | 670/2 | |
| Rotation speed per minute(rpm) | 3600 | 3600 |
| Maximum torque NM/rpm | 50/3000 | 45/2500 |
| Cooling method | Air-cooled | Air-cooled |
| Fuel/Fuel tank capacity | Gasoline 95#/20L | Gasoline 95#/20L |
| Drive System | Hydraulic four-wheel drive | Hydraulic four-wheel drive |
| Speed(km/h) | 0-5.5(By Scale) | 0-5.5(By Scale) |
| Enhancement of capabilities(kg) | 300 | 300 |
| Traction force(kg) | ||
| Hydraulic drive system(L/bar) | 50/180 | 50/180 |
| Hydraulic oil tank capacity(L) | 35 | 35 |
| Standard Tires | 18*8.5-8 | 18*8.5-8 |
| Electrical system(V) | 12 | 12 |
| Battery Capacity(Ah) | 36 | 36 |
| Braking System | Hydraulic enclosed brake | Hydraulic enclosed brake |
| Drive | Skid steering | Skid steering |
| Hydraulic Cylinder Thrust(KG) | ||
| Rising Force(KG) | ||
| Overall Dimensions(MM) | 1485*1150*1300 | 1485*1150*1300 |
| Weight(KG) | 830 | 830 |

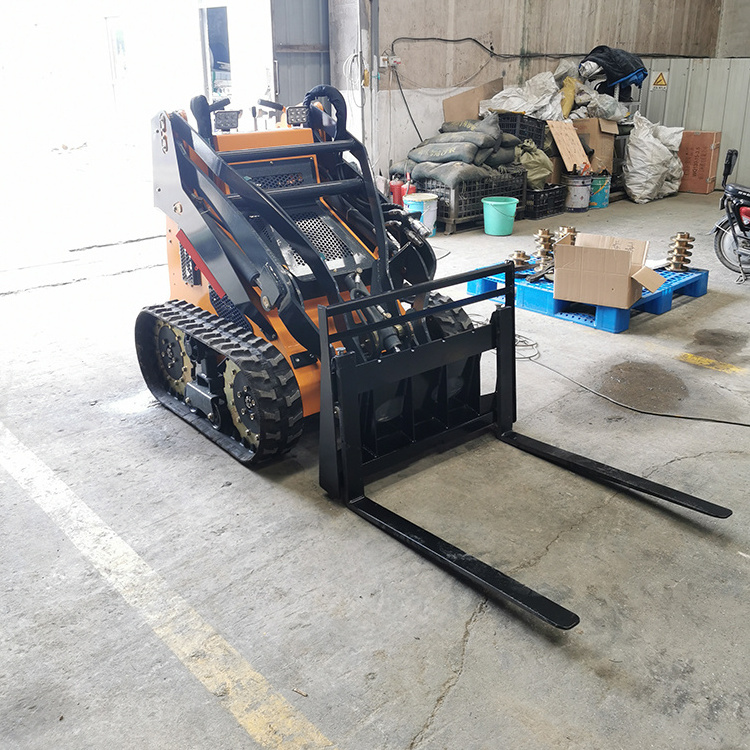

Photos of HT430 Mini skid steer loader (Wheel type and crawler type) :
