Quick Details
-
Model Number:
-
MD-920
-
Product name:
-
Yag Laser
-
Model:
-
MD-920
-
Wavelength:
-
1064 nm
-
Mode:
-
Q-Switch
-
Pulse Output:
-
1,2,3 pulse
-
Pulse Width:
-
4.5 ns
-
Pulse Repetition Rate:
-
2.5Hz
-
Cone Angle:
-
18°
-
Spot Size:
-
30 um
-
Aiming Beam Wavelength:
-
630-680nm
Quick Details
-
Warranty:
-
12 month
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Vowish Yag Laser
-
Model Number:
-
MD-920
-
Product name:
-
Yag Laser
-
Model:
-
MD-920
-
Wavelength:
-
1064 nm
-
Mode:
-
Q-Switch
-
Pulse Output:
-
1,2,3 pulse
-
Pulse Width:
-
4.5 ns
-
Pulse Repetition Rate:
-
2.5Hz
-
Cone Angle:
-
18°
-
Spot Size:
-
30 um
-
Aiming Beam Wavelength:
-
630-680nm

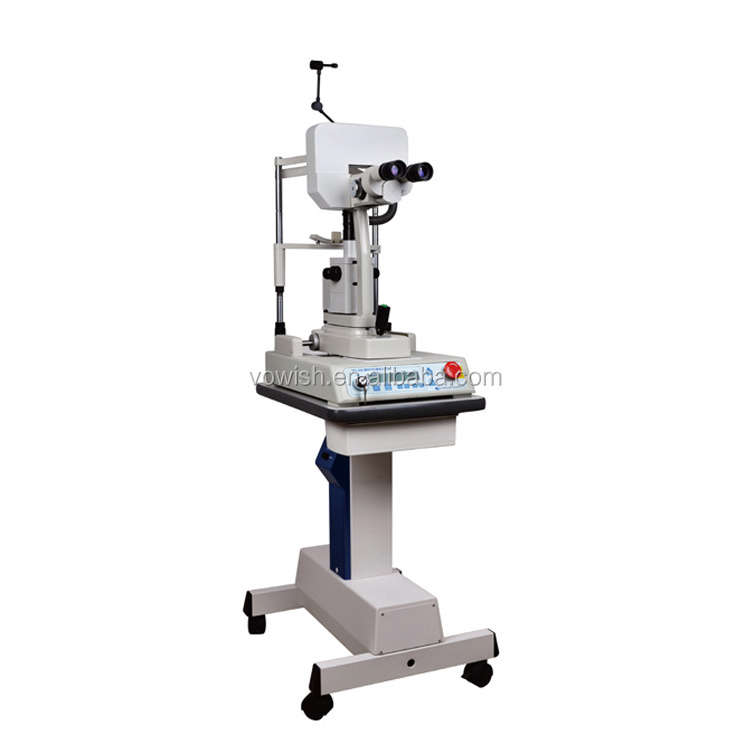

ophthalmic equipment eye yag laser MD-920 Yag Laser for ophthalmology
MD-920 YAG Laser
Parameter:
|
Specifications |
|
|
Laser Type: Nd:YAG |
Nd:YAG |
|
Wavelength: |
1064 nm |
|
Mode: |
Q-Switch |
|
Pulse Output: |
1,2,3 pulse |
|
Pulse Width: |
4.5 ns |
|
Pulse Repetition Rate: |
2.5Hz |
|
Output Energy |
|
|
1. 1 pulse maximum output: |
11mJ |
|
2. 2 pulse maximum output: |
9mJ |
|
3. 3 pulse maximum output: |
28mJ |
|
4. Output Energy Regulation: |
100%~6% adjustable by 7 steps |
|
Cone Angle: |
18° |
|
Spot Size: |
30 um |
|
Aiming Beam Wavelength: |
630-680nm |
|
Aiming Output Power PC: |
< 0.4 mW |
