Quick Details
-
Output size range:
-
12-45 mm
-
Jaw Crusher Color:
-
Yellow, White, Red or As you want
-
Jaw Crusher Motor:
-
Chinese Famous Brand or As Request
-
Export Market:
-
Eastern Europe, Middle East Asia, Africa, etc.
-
Installation:
-
Engineer Guide
-
The Machines classification:
-
Great Wall Small secondary stone jaw crusher price
Quick Details
-
Place of Origin:
-
Henan, China
-
Product name:
-
CE ISO Approval PEX 150 x 750 mini jaw crusher
-
Max feeding size:
-
180-200 mm
-
Output size range:
-
12-45 mm
-
Jaw Crusher Color:
-
Yellow, White, Red or As you want
-
Jaw Crusher Motor:
-
Chinese Famous Brand or As Request
-
Export Market:
-
Eastern Europe, Middle East Asia, Africa, etc.
-
Installation:
-
Engineer Guide
-
The Machines classification:
-
Great Wall Small secondary stone jaw crusher price
"Great Wall Make Great Machine"

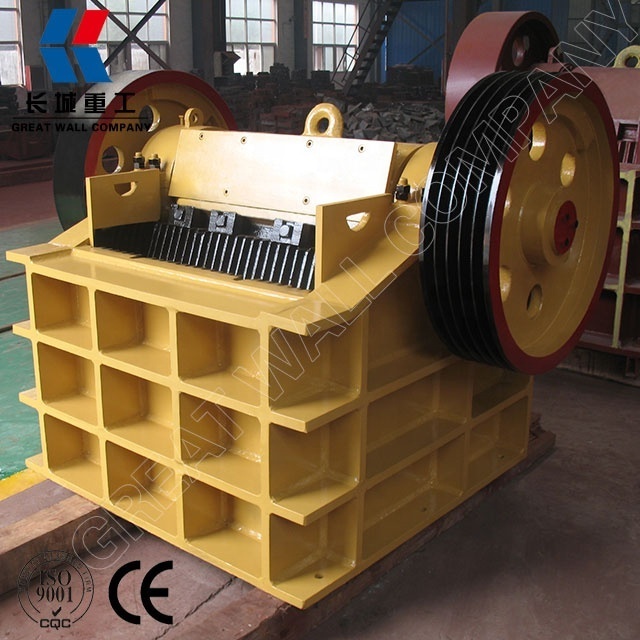

CE ISO Approval PEX 150 x 750 Mini Jaw Crusher , Small Secondary Stone Jaw Crusher Price
I. Application of CE ISO Approval PEX 150 x 750 Mini Jaw Crusher , Small Secondary Stone Jaw Crusher Price
As one of the most popular stone-crushing equipment in the world,CE ISO Approval PEX 150 x 750 mini jaw crusher , Small secondary stone jaw crusher price is ideally suitable for primary and secondary crushing. The highest anti-pressure strength of crushed material is 320 Mpa.
Our design and production has gain good reputation and evaluation for our company both at home and abroad. It is one of our main products, CE ISO Approval PEX 150 x 750 mini jaw crusher , Small secondary stone jaw crusher price is designed by our engineers with large reduction ratio, even granularity, simple structure, reliable operation, convenient maintenance, low cost. It is widely used in fields of mining, metallurgy, construction, highway, railroad, and chemistry industries.
II. Working principle of CE ISO Approval PEX 150 x 750 Mini Jaw Crusher , Small Secondary Stone Jaw Crusher Price
CE ISO Approval PEX 150 x 750 mini jaw crusher , Small secondary stone jaw crusher price uses motor as its power. The belt and belt pulley are driven by a motor, and the movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the moving jaw runs down, then the materials are crushed into pieces. It becomes bigger when the movable jaw runs up. The movable jaw plate leaves the fixed jaw plate under the action of tension rod and spring , then the end products come out from the crushing cavity.
III. Specifications of CE ISO Approval PEX 150 x 750 Mini Jaw Crusher , Small Secondary Stone Jaw Crusher Price
| Model |
Feed
Opening Size (inch) |
Feed
Opening Size (mm) |
Max. Feeding Size
(mm) |
Adjustable Range of Discharge Opening
(mm) |
Capacity
(t/h) |
Motor
Power (kW) |
Weight
(t) |
Overall
Dimension (mm) |
| PE250×400 | 10x16 | 250×400 | 200 | 20-50 | 5-20 | 15 | 2.9 | 1430×1310×1340 |
| PE400×600 | 16x24 | 400×600 | 350 | 40-100 | 15-60 | 30-37 | 6.8 | 1700×1732×1653 |
| PE500×750 | 20x30 | 500×750 | 425 | 50-100 | 40-100 | 45-55 | 11.2 | 2035×1921×2000 |
| PE600×900 | 24x36 | 600×900 | 500 | 65-160 | 60-140 | 55-75 | 16.5 | 2290×2206×2370 |
| PE750×1060 | 30x42 | 750×1060 | 630 | 80-150 | 90-230 | 90-110 | 29 | 2655×2302×3110 |
| PE900×1200 | 36x48 | 900×1200 | 750 | 95-165 | 150-350 | 110-132 | 54.5 | 3789×3050×3025 |
| PEX150×250 | 6x10 | 150×250 | 125 | 10-40 | 1-3 | 5.5 | 0.85 | 896×745×935 |
| PEX150×750 | 6x30 | 150×750 | 125 | 12-45 | 5-16 | 15 | 3.8 | 1205×1495×1203 |
| PEX250×750 | 10x30 | 250×750 | 210 | 25-60 | 10-40 | 22-30 | 5 | 1667×1545×1020 |
CE ISO Approval PEX 150 x 750 mini jaw crusher , Small secondary stone jaw crusher price is fixed tightly when it is sent to the port by professionale truck. Before shipped, it is covered by waterproof material to avoid moisture and rough handling.
We can not only provide wholeheartedly service but also longtime warranty after sale. Before sale, our professional engineer would customize the client according to the production situation and demand. The machine we recommend is NOT the most expensive, NOT maximum profit for us, but the suitable. We insist the concept of “win-win” at the basic of the maximum profit for client. Our aim is to ensure the client to expend least money but create the greatest profit.
After sale, the machine has the 12 months warranty. But one different point from other manufacturers is we provide the professional technology support in the production progress. Any problems about the production, our senior engineer would help to solve them.
1. What about the quality and warranty of CE ISO Approval PEX 150 x 750 mini jaw crusher , Small secondary stone jaw crusher price ?
All the mechanical products of Great Wall hav e 1 year warranty . Great Wall is certified with ISO CE system and has 25 years experience in mining machinery. Please be assured to purchase.
2. What's the service life of CE ISO Approval PEX 150 x 750 mini jaw crusher , Small secondary stone jaw crusher price and the spare parts?
Usually, the rock crusher can serve for over 2 years.
The plate is the major wear part. For limestone it can serve 2 years while for cobblestone it need to be replaced in 1 year.
It doesn't matter if the wear part does not work. We provide spare parts for customers, too.
