Customized internal thread interface high efficiency filter for industrial dust filter air filter cartridge

Customized internal thread interface high efficiency filter for industrial dust filter air filter cartridge

FOB Reference Price: Get Latest Price

≥2 Pieces

US $37

≥100 Pieces

US $36

≥500 Pieces

US $32

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Huahang

Weight:: 1.2 KG

filter media:: Polyester fibers,micronfiber

filration rating:: 3-100 micron

type:: pleated air filter cartridge

Advantages:: Larger filter area,good Air Permeability

Usage:: Machines & industrial profiles

Trade terms:: EXW,FOB,CFR

Payment:: Pay the full amount in advance by T/T/50% pre-payment

After-sales Service Provided:: Online support

Certification:: ISO9001,CE

showroom location:: none

Quick Details

Core Components:: air filter cartridge

Efficiency:: 99.9%

Place of Origin:: Henan, China

Brand Name:: Huahang

Weight:: 1.2 KG

filter media:: Polyester fibers,micronfiber

filration rating:: 3-100 micron

type:: pleated air filter cartridge

Advantages:: Larger filter area,good Air Permeability

Usage:: Machines & industrial profiles

Trade terms:: EXW,FOB,CFR

Payment:: Pay the full amount in advance by T/T/50% pre-payment

After-sales Service Provided:: Online support

Certification:: ISO9001,CE

showroom location:: none

XINXIANG CITY HUAHANG FILTER CO., LTD

* More than 20 years experience in the business

* 500 different types to match different manufacturers

* Quality Products

* Competitive Price

* Excellent Service

∗OEM&ODM Service

Product Description

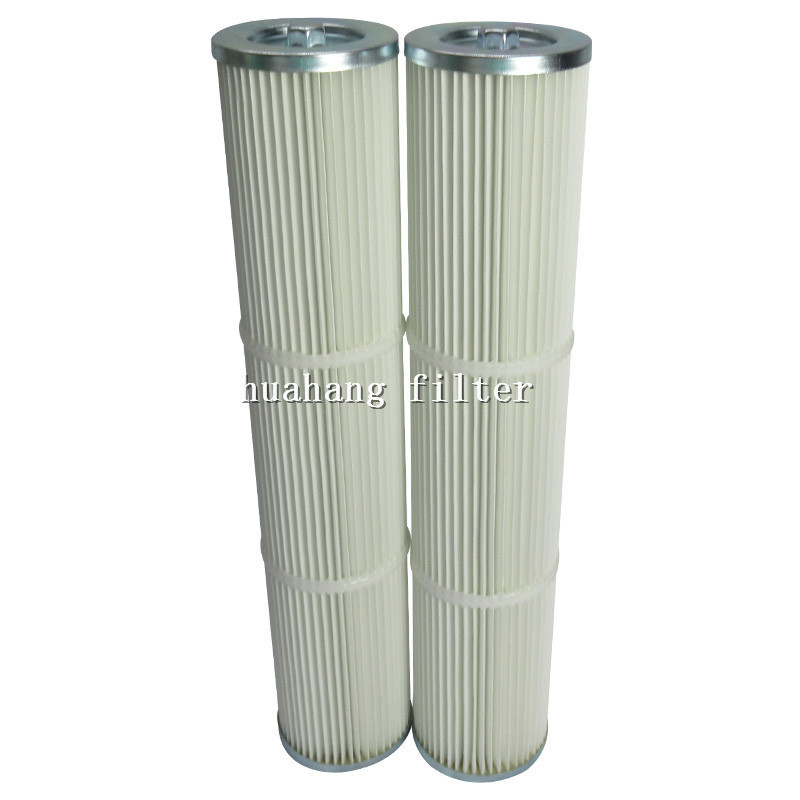

Powder coating air filter cartridge dust collector filter element Cellulose Polyester Gas Air Filter

Micron Pleated Dust Collector Air Filter Cartridges For Cement Plants are modern and reliable for air intake applications. They ensure high efficient filtration of dust and other contaminants even in the most polluted environments. Normally these are made of mixture of polyester & cellulose and Nanofiber media. These media have much better pleat ability & dimensional stability. Pleated filter media offer high filtration efficiency, very fine retention level, easy clean ability & aesthetically good product than other normal filter media.
Features:
(1) Suitable for the filtration of very fine dust type in welding fumes Mechanical processing, pharmaceutical and construction industries And sticky dust collection.
(2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency.
(3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.
(4) Excellent resistance to chemical erosion.
(5) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.

Filter material	polyester fiber
Application field	dust collector
Filtering accuracy	1-25 μ M
Nominal pressure	0.6Mpa
Working temperature	ordinary temperature

Specification

Model	OD	Length	Filtration surface(m2)
3266	324mm	660mm	9.4m2
3566	324mm	660mm	9.4m2
3275	324mm	750mm	10.7m2
3288	324mm	880mm	12.5m2
3290	324mm	915mm	13.0m2

Notes:

1. Optional construction and dimensions are available on all cartridges.
2. Please contact us to make optimal filtration solutions of your applications.
