Quick Details
-
Warranty(Year):
-
2-Year
-
Brand Name:
-
shenda
-
Model Number:
-
SD10A
-
Place of Origin:
-
Jiangsu, China
-
Product Weight（kg）:
-
5.6
-
Product Dimension:
-
1265*278*75mm
-
Packing Dimension:
-
133*30*20cm
-
PCs/ Ctn:
-
2
-
Lamp Luminous Flux(lm):
-
3600lm@18WX2
-
Beam Angle(°):
-
240
-
product name:
-
semi flush mount light fixtures 1x4ft led ceiling cleanroom light
-
power:
-
2x18w
-
diffuser:
-
PC/PMMA/GLASS
-
base material:
-
cold rolling steel/ stainless steel
-
light source:
-
T8 LED
-
Certification:
-
ce rohs
-
Warranty:
-
2 Years
-
shape:
-
rectangular
-
Voltage:
-
220-240VAC
Quick Details
-
Design Style:
-
Industrial
-
Application:
-
Workshop
-
Body Material:
-
Iron
-
Warranty(Year):
-
2-Year
-
Brand Name:
-
shenda
-
Model Number:
-
SD10A
-
Place of Origin:
-
Jiangsu, China
-
Product Weight（kg）:
-
5.6
-
Product Dimension:
-
1265*278*75mm
-
Packing Dimension:
-
133*30*20cm
-
PCs/ Ctn:
-
2
-
Lamp Luminous Flux(lm):
-
3600lm@18WX2
-
Beam Angle(°):
-
240
-
product name:
-
semi flush mount light fixtures 1x4ft led ceiling cleanroom light
-
power:
-
2x18w
-
diffuser:
-
PC/PMMA/GLASS
-
base material:
-
cold rolling steel/ stainless steel
-
light source:
-
T8 LED
-
Certification:
-
ce rohs
-
Warranty:
-
2 Years
-
shape:
-
rectangular
-
Voltage:
-
220-240VAC
PRODUCT DESCRIPTION

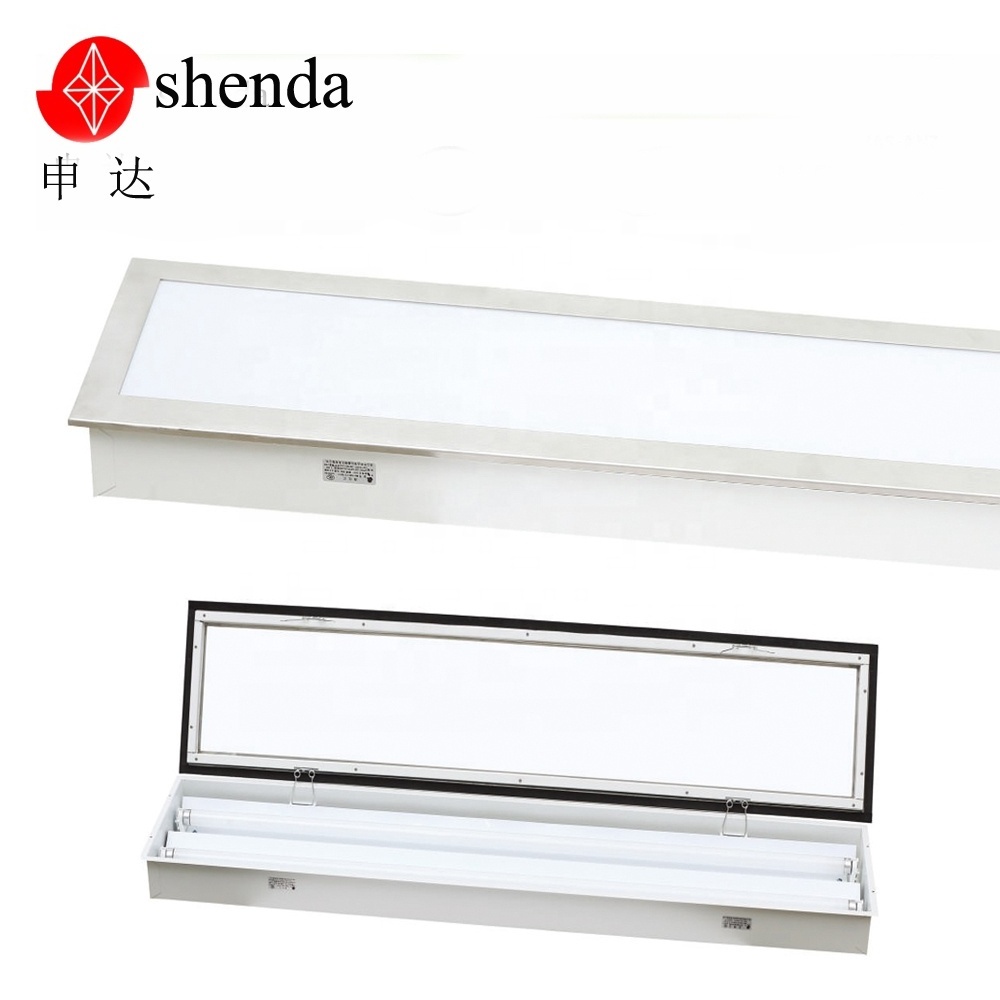

CLEANROOM LIGHTING-SD10A/12A
cleanroom recessed light fixture are used in where hygiene keeps great importance, such as pharmaceutical industries, laboratories and hospitals as well as food production facilities. This classic type of fixtures represent a high level of dust-proof and water-proof which give a safe use and a cleaning environment to plants. Reliable led engine delivers, symmetric lighting beams and flexible mounting ways make it access to a wide range of application of high standard cleanroom industry.
|
Model
|
MQ-Y18X2/SD10A
|
|
MQ-Y9X3/SD10A
|
|
|||
|
size
|
1265*278mm
|
|
598*598mm
|
|
|||
|
cut-out
|
1242*255mm
|
|
575*575mm
|
|
|||
|
thickness
|
75mm
|
|
93mm
|
|
|||
|
watt
|
18WX2
|
|
9WX3
|
|
|||
|
Lumen
|
3600lm
|
|
2700lm
|
|
|||
|
efficiency
|
100lm/w
|
|
100lm/w
|
|
|||
|
suitable tube
|
LEDtube T8
|
|
|
|
|||
|
lampholder
|
T8 G13
|
|
|
|
|||
|
frame
|
overlapped CRS 1.2mm before white polyester coated
|
|
|
|
|||
|
tray house
|
CRS 0.5mm before white polyester coated
|
|
|
|
|||
|
filter
|
PMMA acrylic 2.0mm
|
|
|
|
|||
|
maintenance
|
down access
|
|
|
|
|||
|
installation
|
flush mount
|
|
|
|
|||
|
warranty
|
2 years
|
|
|
|
|||
|
application
|
hospital, laboratory, pharmaceutical industries workshop, IT industries
|
|
|
|
|||
|
Model
|
Watt(W)
|
Size(L*W*H)
|
Cut-out(L*W)
|
Suitable Tube
|
|
MQ-Y9X1/SD10A/12A
|
9WX1
|
655*188*90
|
632*165
|
LED T8/T5
|
|
MQ-Y9X2/SD10A/12A
|
9WX2
|
655*278*75
|
632*255
|
|
|
MQ-Y9X3/SD10A/12A
|
9WX3
|
655*328*75
|
632*305
|
|
|
MQ-Y9X3/SD10A/12A
|
9WX3
|
655*655*75
|
632*632
|
|
|
MQ-Y9X3/SD10A/12A
|
9WX3
|
598*598*93
|
575*575
|
|
|
MQ-Y14X1/SD10A/12A
|
14WX1
|
960*188*90
|
937*165
|
|
|
MQ-Y14X2/SD10A/12A
|
14WX2
|
960*278*75
|
937*255
|
|
|
MQ-Y14X3/SD10A/12A
|
14WX3
|
960*328*75
|
937*305
|
|
|
MQ-Y18X1/SD10A/12A
|
18WX1
|
1265*188*90
|
1242*165
|
|
|
MQ-Y18X2/SD10A/12A
|
18WX2
|
1265*278*75
|
1242*255
|
|
|
MQ-Y18X3/SD10A/12A
|
18WX3
|
1265*328*75
|
1242*305
|
|
|
MQ-Y18X3/SD10A/12A
|
18WX3
|
1198*598*93
|
1175*575
|
|
