1. The chassis is made of cold plate Q235 plate gold
2. The column adopts steel structure two-section square pass combination structure, and the distance between the column and the
center of the front wheel of the vehicle (center of the corner plate of the lift machine) is 1.6-2.8 meters.
3. The base plate gold piece, material Q235. Welded with the square tube to form the lower column, the upper column square pass
and the square tube of the five square column are inserted and connected, and the bolts are connected and locked from four
sides.
4. The column connecting bracket is a combination of plate gold and beam and column.
5. Computer using WIN7-32 bit operating system, installation environment temperature: -10-+50℃, relative humidity ≤85%,
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHZY
-
Model Number:
-
FSD-300M
-
Warranty:
-
2 Years
-
Product Name:
-
3D Wheel Alignment
-
Color:
-
Red /Blue/OEM
-
Language:
-
Chinese/English/Customized
-
Model:
-
Single Screen
-
Software:
-
3D Wheel Alignment Software
-
Function:
-
Diagnosis
-
Rim Diameter:
-
10" - 24"
-
Voltage:
-
220v/110v/240v
-
Vehicle database:
-
Updated Promptly
-
Camera:
-
High Resolution Camera
Quick Details
-
Power:
-
25kw
-
Power Supply:
-
110v/220v/380v
-
Max. Wheel Weight:
-
75kg
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHZY
-
Model Number:
-
FSD-300M
-
Warranty:
-
2 Years
-
Product Name:
-
3D Wheel Alignment
-
Color:
-
Red /Blue/OEM
-
Language:
-
Chinese/English/Customized
-
Model:
-
Single Screen
-
Software:
-
3D Wheel Alignment Software
-
Function:
-
Diagnosis
-
Rim Diameter:
-
10" - 24"
-
Voltage:
-
220v/110v/240v
-
Vehicle database:
-
Updated Promptly
-
Camera:
-
High Resolution Camera
Product Overview
Fostar ODM

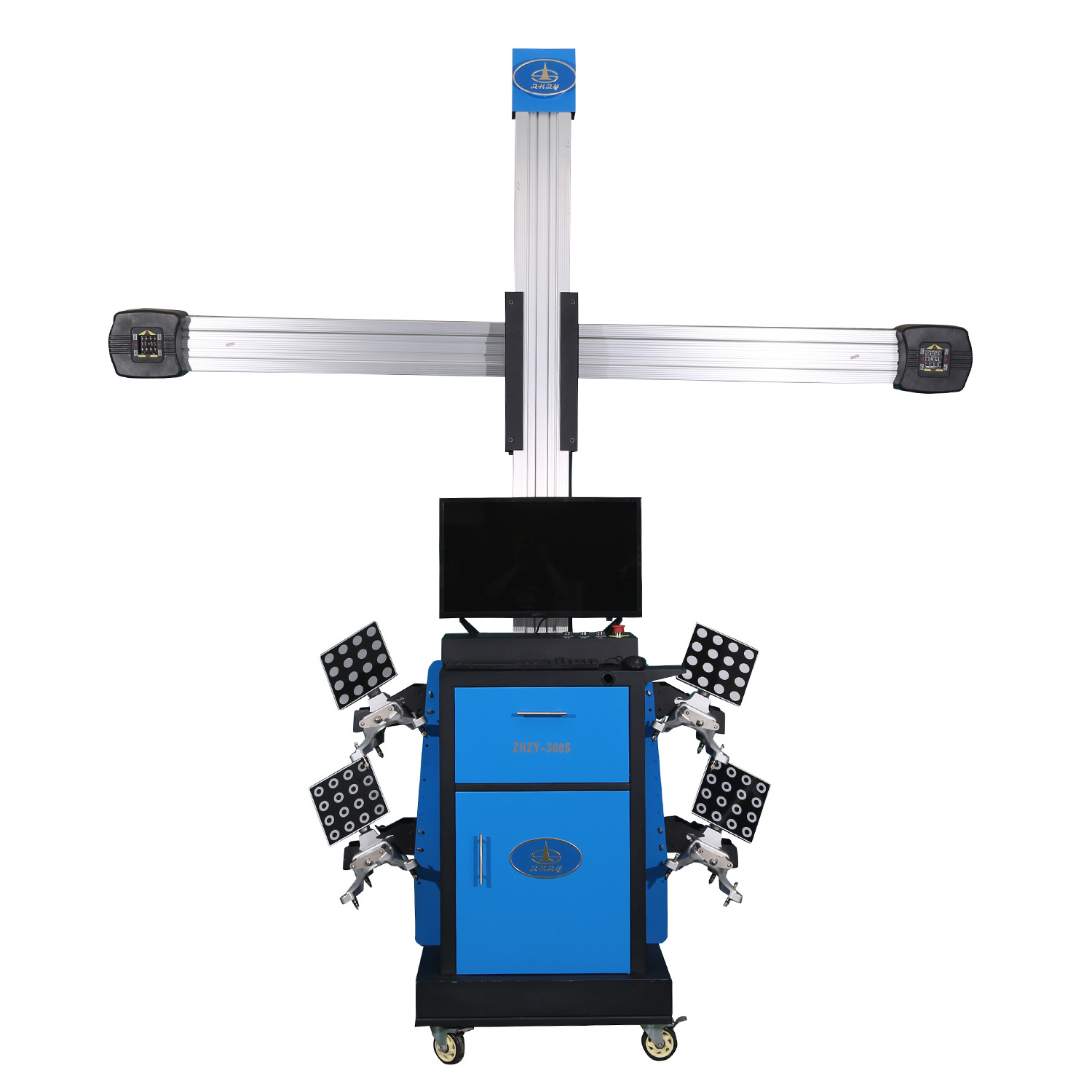

Luxury Auto Inspection Tracking 3D Wheel Alignment and Balancing Machine
The wheel aligner is used to detect the vehicle wheel alignment parameters, compare them with the original parameters, and guide the user to adjust the wheel alignment parameters accordingly to meet the original requirements, so as to achieve the ideal driving performance of the car, that is, easy to operate, stable and reliable to drive, and reduce tire wear. During the inspection work, the wheel aligner first measures the actual alignment parameters of the car, and then the computer automatically compares it with the value of the corresponding model to calculate the deviation value for the wheel alignment. The maintenance personnel can restore the original wheel alignment parameters by correcting according to the prompts of the aligner.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
Item
|
Precision
|
Measurement range
|
Maximum measurement range
|
|
Camber Angle
|
±0.015°
|
±0.01°
|
±30°
|
|
Rear Angle
|
±0.025°
|
±0.01°
|
±30°
|
|
Kingpin inward Angle
|
±0.025°
|
±0.01°
|
±15°
|
|
Kingpin inward Angle
|
±0.025°
|
±0.01°
|
±20°
|
|
Rear wheel propulsion Angle
|
±0.015°
|
±0.01°
|
±6°
|
|
Maximum steering Angle
|
±0.015°
|
±0.01°
|
±30°
|
|
Angle of retreat
|
±0.015°
|
±0.01°
|
±6°
|
|
Wheel pitch
|
±0.25cm
|
±0.01°
|
3000mm
|
|
Wheelbase
|
±0.25cm
|
±0.01°
|
8000mm
|
|
Diagonal
|
±2mm
|
±0.3cm
|
12000mm
|
|
Wheel radius
|
±2mm
|
±0.3cm
|
700mm
|
Product advantages
1) Higher precision, more powerful
2) The accuracy of the equipment can reach 0.01°0.1mm
In addition to the detection of all the traditional general parameters, and can measure wheel deviation, axis deviation and other
parameters,
3) Easy to realize the full set out to give you laser locator can not complete many functions.
2) The accuracy of the equipment can reach 0.01°0.1mm
In addition to the detection of all the traditional general parameters, and can measure wheel deviation, axis deviation and other
parameters,
3) Easy to realize the full set out to give you laser locator can not complete many functions.
4) Simple operation(With detailed instructions before delivery)
5) The camera responds quickly
6) The appearance and color of the product are optional
7) Optional three - point fixture to detect the global series of vehicles
7) Optional three - point fixture to detect the global series of vehicles
8) Optional three - point fixture to detect the global series of vehicles
