Quick Details
-
Model Number:
-
KCD1-202, KCD1-201
-
Max. Current:
-
10A
-
Mechanical Life:
-
50000 Cycles, 10000-50000
-
IP level:
-
ip55
-
Main Function:
-
ON-OFF
-
Panel opening hole:
-
20mm
-
Free samples:
-
Yes can provide
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JINGHAN
-
Model Number:
-
KCD1-202, KCD1-201
-
Max. Current:
-
10A
-
Mechanical Life:
-
50000 Cycles, 10000-50000
-
IP level:
-
ip55
-
Main Function:
-
ON-OFF
-
Panel opening hole:
-
20mm
-
Free samples:
-
Yes can provide

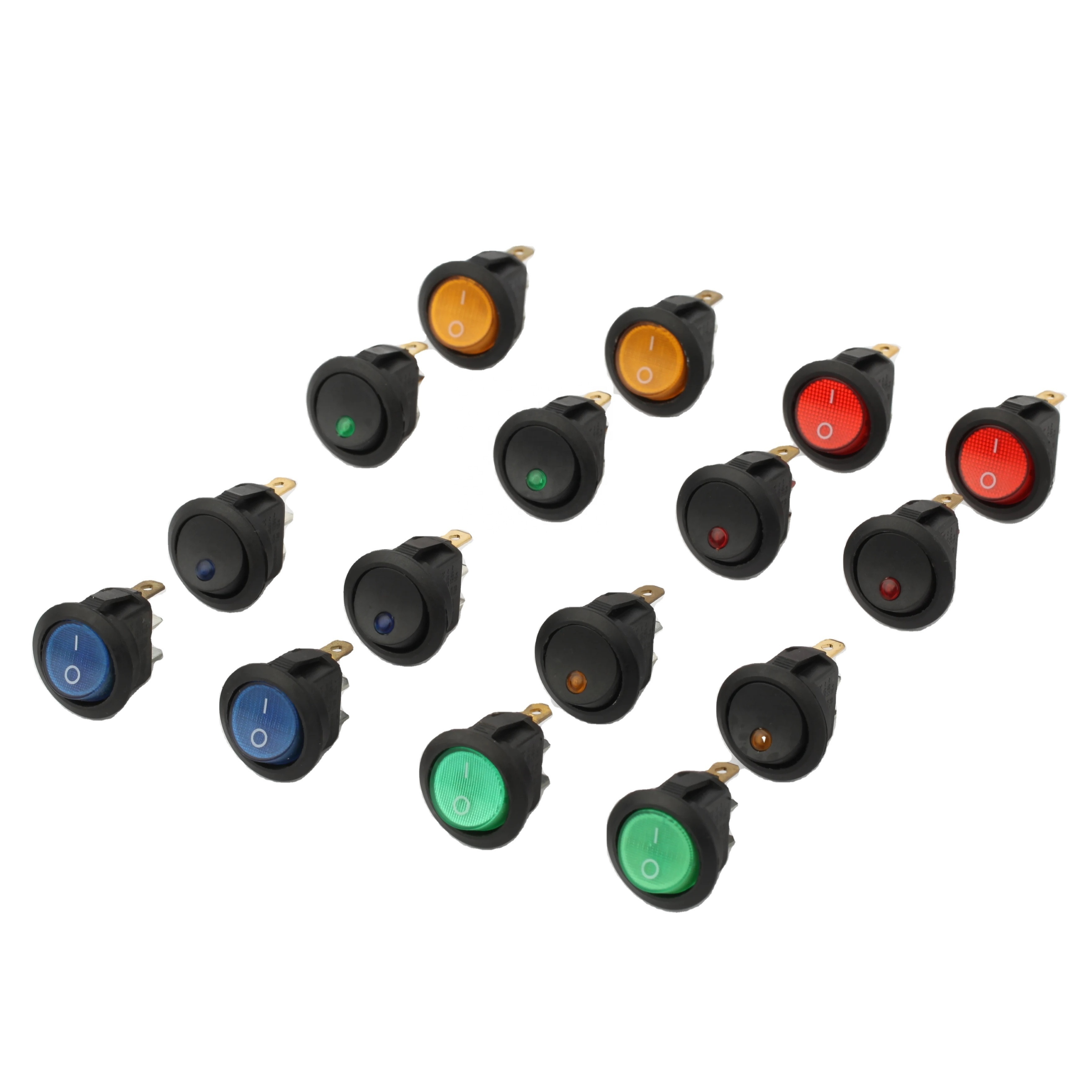

JINGHAN KCD1-202 lamp rocker switch
Banner
Product Description
Main technical characteristics
| Rocker Switch | |||||
| Rating |
10(6)A,250VAC
10A 125VAC |
Operating Temp. | -25+85°C | ||
| Contact Resistance | ≤50MΩ | Electrical life | ≥10000 Cycles | ||
| Insulation Resistance | ≥100MΩ | Withstand Voltage | 1500VAC/5S | ||
| Material | Housing & Light bracket | PA66 | Contacts | Copper plated silver | |
| Push button | PC | Terminals & Mid pins | Brass | ||
| Waterproof cover(Optional) | PVC | Side pins | Brass | ||
