Quick Details
-
Filling Accuracy:
-
99%
-
Voltage:
-
AC 3 Phase 380V
-
Place of Origin:
-
China
-
Brand Name:
-
VTOPS
-
Dimension(L*W*H):
-
3000*1500*2300
-
Weight:
-
600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
Liquid bottle juice filling production line
-
Output:
-
3600 BPH
-
Filling Accurate:
-
≤ ±1%
-
Machine Material:
-
Food Grade Stainless Steel SUS 304
-
Main Function:
-
Liquid Filler
-
Warranty Period:
-
2 Years
-
Manufacturing Experience:
-
Since 2001
-
Installation and Training:
-
Support
-
Customize:
-
Support
Quick Details
-
Machinery Capacity:
-
4000BPH, 2000BPH, 1000BPH
-
Packaging Material:
-
Plastic, Wood
-
Filling Material:
-
Water, Oil, Juice
-
Filling Accuracy:
-
99%
-
Voltage:
-
AC 3 Phase 380V
-
Place of Origin:
-
China
-
Brand Name:
-
VTOPS
-
Dimension(L*W*H):
-
3000*1500*2300
-
Weight:
-
600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
Liquid bottle juice filling production line
-
Output:
-
3600 BPH
-
Filling Accurate:
-
≤ ±1%
-
Machine Material:
-
Food Grade Stainless Steel SUS 304
-
Main Function:
-
Liquid Filler
-
Warranty Period:
-
2 Years
-
Manufacturing Experience:
-
Since 2001
-
Installation and Training:
-
Support
-
Customize:
-
Support
Product Description

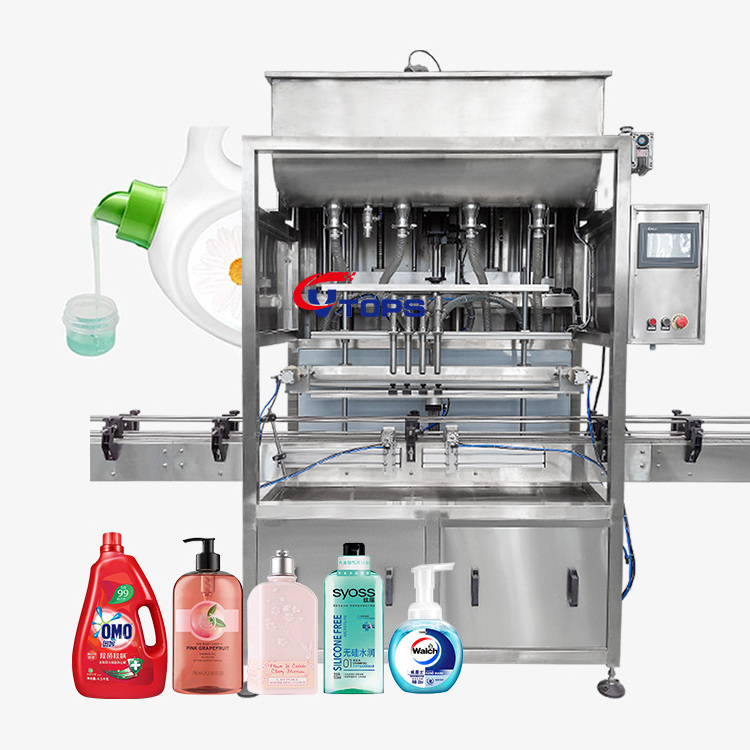

Automatic 4 Nozzles Four Head Liquid Honey Laundry Detergent Shampoo Juice Oil Filling Machine
Automatic piston filling machine is also named automatic piston filler. The piston filler machine is widely used in the filling of high viscosity liquid and paste products. Such as: honey, tomato sauce, rice wine, seafood sauce, grease, lubricants, detergent, washing liquid and other high viscosity liquid.
Specification
|
Model
|
GT-SL4
|
GT-SL6
|
GT-SL8
|
GT-SL12
|
GT-SL16
|
||||
|
Brand
|
VTOPS
|
|
|
|
|
||||
|
Manufacturer
|
Zhengzhou Vtops Machinery Co., Ltd.
|
|
|
|
|
||||
|
Nozzles
|
4
|
6
|
8
|
12
|
16
|
||||
|
Output
|
500-1000 bph
|
800-1600 bph
|
1000-2000 bph
|
1500-3000 bph
|
2000-4000 bph
|
||||
|
Fill Volume
|
50-1000 ml or 500-3000 ml
|
|
|
|
|
||||
|
Storage Tank
|
200 liters (At the machine top)
|
|
|
|
|
||||
|
Blender in Tank
|
Optional
|
|
|
|
|
||||
|
Measurement Accuracy
|
≥ 99% (>100ml)
|
|
|
|
|
||||
|
Air Pressure
|
0.5-0.7 mpa
|
|
|
|
|
||||
|
Air Consumption
|
20 lph
|
30 lph
|
40 lph
|
60 lph
|
100 lph
|
||||
|
Contained Conveyor Belt
|
3 meters
|
3 meters
|
4 meters
|
6 meters
|
6 meters
|
||||
|
HMI
|
LCD Touch Screen
|
|
|
|
|
||||
|
Control System
|
PLC
|
|
|
|
|
||||
|
Voltage
|
AC Three-phase 380V 50/60Hz
|
|
|
|
|
||||
|
Power
|
2.0 Kw
|
|
|
2.5 Kw
|
|
||||
|
Dimensions (cm)
|
400×110×210
|
400×110×230
|
400×115×230
|
600×100×230
|
600×100×230
|
||||
|
Machine Weight
|
300 kgs
|
400 kgs
|
500 kgs
|
700 kgs
|
900 kgs
|
||||
Suitable for：
Features:
1. Servo motor driven the piston to achieve accuracy filling.
2. A special three-way valve for each filling nozzle.
3. The filling volume is adjustable on LCD touch screen; simple and convenient.
4. The bottles are automatically enters, fills, and exits.
5. Skip or stop filling if without bottles.
6. The filling volumes are accurate and has a counting function.
7. Equipped with filling nozzle to prevent dripping and drawing.
8. Equipped with a diving filling system to ensure that the filling process does not foam and prevent the filling material from overflowing.
9. Sanitary valve piping. Quick installation connection, easy disassembly and installation.
2. A special three-way valve for each filling nozzle.
3. The filling volume is adjustable on LCD touch screen; simple and convenient.
4. The bottles are automatically enters, fills, and exits.
5. Skip or stop filling if without bottles.
6. The filling volumes are accurate and has a counting function.
7. Equipped with filling nozzle to prevent dripping and drawing.
8. Equipped with a diving filling system to ensure that the filling process does not foam and prevent the filling material from overflowing.
9. Sanitary valve piping. Quick installation connection, easy disassembly and installation.
Details Images:
Realted Products
12 Nozzles Liquid Filling Machine
It is used in the fill a wide range of
water-thin
to
low-viscosity liquid
without gas. Such as, juice, soy sauce, vinegar, edible oil, oral liquid, disinfectant, pesticide, chemical, detergent, lubricating oil, cosmetics, and so on.
