- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
110V/220V/380V/480V
-
Power:
-
10.5kw
-
Dimension(L*W*H):
-
2950*1020*1750mm
-
Weight (KG):
-
1200
-
Keywords:
-
log wood shaving sawdust crusher machine
-
Max Processing Length:
-
800mm
-
Max Processing Width:
-
500mm
-
Axle Quantity:
-
2
-
Blade Quantity:
-
8pc
-
Total Power:
-
10.5kw
-
Shaving Depth:
-
1-5mm
-
Dimension:
-
2950*1020*1750mm
-
Yield:
-
1-2 tons/hour
Quick Details
-
Place of Origin:
-
Henan, China
-
Application:
-
furniture factory, biomass power plant, farm, plywood
-
Brand Name:
-
NEWEEK
-
Voltage:
-
110V/220V/380V/480V
-
Power:
-
10.5kw
-
Dimension(L*W*H):
-
2950*1020*1750mm
-
Weight (KG):
-
1200
-
Keywords:
-
log wood shaving sawdust crusher machine
-
Max Processing Length:
-
800mm
-
Max Processing Width:
-
500mm
-
Axle Quantity:
-
2
-
Blade Quantity:
-
8pc
-
Total Power:
-
10.5kw
-
Shaving Depth:
-
1-5mm
-
Dimension:
-
2950*1020*1750mm
-
Yield:
-
1-2 tons/hour
Products Description
1. Particleboard (plywood), furniture factory, biomass power plant, farm, paper mill to make wood pulp paper raw materials;
2. In the logistics transportation, some fragile products add some shavings as fillers to prevent damage;
3. In the poultry farms, shavings are commonly used as fillings for animals, and different animals are used to grow shavings of different sizes;
4. It can also be used as an ignition material for bioenergy.
2. In the logistics transportation, some fragile products add some shavings as fillers to prevent damage;
3. In the poultry farms, shavings are commonly used as fillings for animals, and different animals are used to grow shavings of different sizes;
4. It can also be used as an ignition material for bioenergy.
Product Paramenters
|
Model
|
WB500-2
|
WB500-4
|
WB500-6
|
|
Production
|
500kg/hour
|
1000kg/hour
|
1500kg/hour
|
|
Max Processing Length
|
800mm
|
1400mm
|
1400mm
|
|
Max Processing Width
|
500mm
|
500mm
|
500mm
|
|
Axle Quantity
|
2
|
4
|
6
|
|
Blade Quantity
|
8
|
16
|
24
|
|
Total Power
|
10.5kw
|
18.5kw
|
25.5kw
|
|
Shaving Depth
|
1-5mm
|
1-5mm
|
1-5mm
|
|
Dimension
|
2950*1020*1750mm
|
4000*1100*1900mm
|
4100*1000*1600mm
|
|
Weight
|
1120kg
|
2010kg
|
2110kg
|

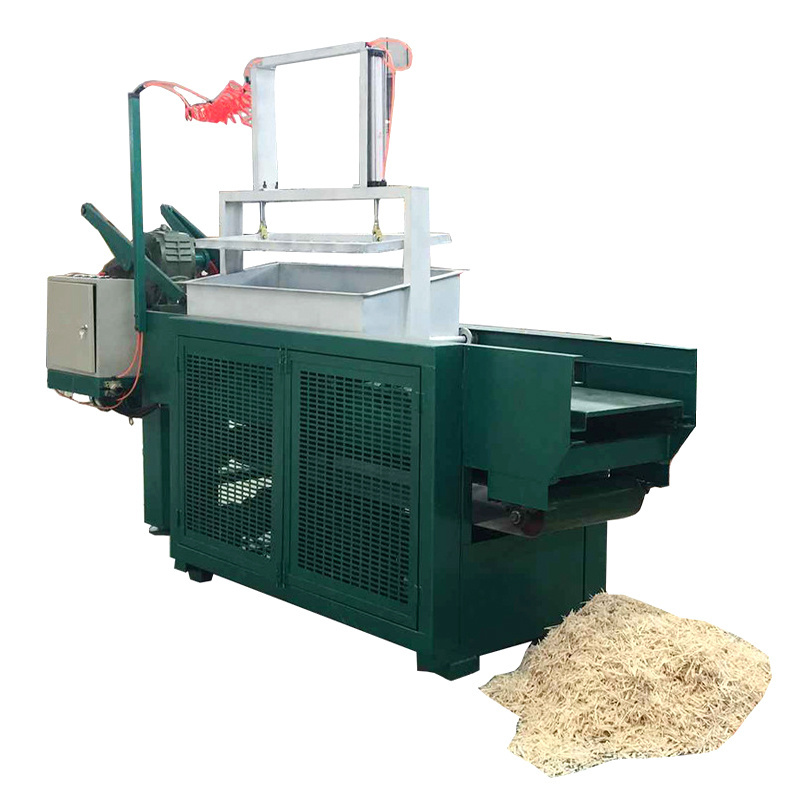

1. This wood shaving machine can process wood sticks, branches, tree shrubs, scraps and other wood into shavings.
2. The shavings produced by the shaving machine are widely used.
3. The equipment for the production of shavings "Wood shaving machine" can produce a small amount of shavings, which can be thick and thin, and can be adjusted.
2. The shavings produced by the shaving machine are widely used.
3. The equipment for the production of shavings "Wood shaving machine" can produce a small amount of shavings, which can be thick and thin, and can be adjusted.
Details Images
1. This machine adopts four sets of rolling axes *4 planing knife / shaft, the shaving effect is good.
2. This machine adopts 7.5 kW each of the two main motors, copper core motor, and has a long service life.
3. Put the wood and drag the hopper to a length of 1m, suitable for handling all kinds of wood.
4. This machine is equipped with two steam cylinders to compact the wood to ensure the shaving effect.
5. This machine drag the speed of the hopper to any speed.
6. Yield: 1-2 tons / hour.
7. Thickness: 0.2--2.5MM, can be adjusted to suit different purposes.
2. This machine adopts 7.5 kW each of the two main motors, copper core motor, and has a long service life.
3. Put the wood and drag the hopper to a length of 1m, suitable for handling all kinds of wood.
4. This machine is equipped with two steam cylinders to compact the wood to ensure the shaving effect.
5. This machine drag the speed of the hopper to any speed.
6. Yield: 1-2 tons / hour.
7. Thickness: 0.2--2.5MM, can be adjusted to suit different purposes.
Packing&Delivery
Packing:
This machine is packed in standard export wooden cases. We will wrap the machine with plastic film to prevent scratches. Then use a wooden box to fix the fuselage to prevent the machine parts from being damaged due to bumps during transportation. Regarding packaging, we also support customization. If you have special requirements, please contact us for instructions.
Delivery:
About this machine, we have two ways to transport by sea and air. Please provide us with your address so that we can choose a more suitable transportation method for you. We can also deliver the machine to your agent in China if you have.
This machine is packed in standard export wooden cases. We will wrap the machine with plastic film to prevent scratches. Then use a wooden box to fix the fuselage to prevent the machine parts from being damaged due to bumps during transportation. Regarding packaging, we also support customization. If you have special requirements, please contact us for instructions.
Delivery:
About this machine, we have two ways to transport by sea and air. Please provide us with your address so that we can choose a more suitable transportation method for you. We can also deliver the machine to your agent in China if you have.
Certifications
Product Process
Our services
1. The warranty period for this door lock woodworking mortise machine is 12 months. During the warranty period, machine parts other than wearing parts are damaged by non-human factors, we free of charge to provide new parts for replacement.
2. We have one-on-one exclusive customer service staff, 24 hours online. In order to better understand this door lock woodworking mortise machine, you have any questions, please feel free to contact us, we will provide you with professional answers.
3. We accept product customization. Regarding this door lock woodworking mortise machine, if you have special requirements, any parts, we can customize according to your requirements. It is our constant pursuit to make the products that customers are most suitable for.
Thank you for your precious time! For more information about this door lock woodworking mortise machine, please feel free to send me an inquiry and contact me!
2. We have one-on-one exclusive customer service staff, 24 hours online. In order to better understand this door lock woodworking mortise machine, you have any questions, please feel free to contact us, we will provide you with professional answers.
3. We accept product customization. Regarding this door lock woodworking mortise machine, if you have special requirements, any parts, we can customize according to your requirements. It is our constant pursuit to make the products that customers are most suitable for.
Thank you for your precious time! For more information about this door lock woodworking mortise machine, please feel free to send me an inquiry and contact me!
