- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Concrete Formwork Construction, For rebar dia 6~10mm
-
Design Style:
-
Modern
-
Type:
-
Formwork Clamps, Welding clamps
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Trico
-
Model Number:
-
Spring Clamp
-
Structure:
-
Formwork Spring Clamp
-
Material:
-
Carbon steel
-
Size:
-
75*110*3.75mm;69*105*3mm
-
Unit weight:
-
420g/pc, 310g/pc
-
Surface treatment:
-
Galvanzing, Red painted or electrostatic spraying
-
Process:
-
Pressing
-
Tool used:
-
Spring Clamp Tensioner
-
Packing:
-
In bag or carton box, then put in ton bag or pallet
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
3D model design
-
Application:
-
Concrete Formwork Construction, For rebar dia 6~10mm
-
Design Style:
-
Modern
-
Type:
-
Formwork Clamps, Welding clamps
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Trico
-
Model Number:
-
Spring Clamp
-
Structure:
-
Formwork Spring Clamp
-
Material:
-
Carbon steel
-
Size:
-
75*110*3.75mm;69*105*3mm
-
Unit weight:
-
420g/pc, 310g/pc
-
Surface treatment:
-
Galvanzing, Red painted or electrostatic spraying
-
Process:
-
Pressing
-
Tool used:
-
Spring Clamp Tensioner
-
Packing:
-
In bag or carton box, then put in ton bag or pallet
Product name:Construction Formwork Accessories Pressed Formwork Rapid Spring Clamp and Clamp Tensioners
Material: Q235+45# steel, or Cast Iron
Specification: 75*110*3.75 / 75*110*4 / 70*105*3 / 70*105*3.75, with triangle/rib or not. Other size also available
Unit weight: 310g-430g/pc available
Surface Treatment: G alvanized / painted/ electrostatic spraying
Others: We also supply different Spring Clamp Tensioner.
| Item | Spring clamp | Spring clamp | Spring Clip | Spring Clamp Tensioner | Spring Clamp Tensioner |
| Photo |
|
|
|
|
|
| Material | Carbon steel | Carbon Steel | Cast Iron |
Carbon Steel |
Carbon Steel |
| Size |
70*105mm*3mm, 75*110mm*3.75mm, etc. |
70*105mm*3mm, 75*110mm*3.75mm, etc. |
115*50mm | / | / |
| Weight | 310g, 420g,etc. | 310g, 420g,etc. | 380g | 2.9kg/pc | 3.2kg/pc |
| Finishing | Glavanizing | Painted, Powder Coated | Galvanizing | Galvanizing |
Galvanizing, Powder Coated |
| Package |
50pcs/bag or box, then put in ton bag or pallet |
50pcs/bag or box then put in ton bag or pallet |
50pcs/bag, then put in ton bag or pallet | 4pcs/box |
4pcs/box |
Rapid Clamp in Galvanizing:
Red Painted Rapid Clamp:

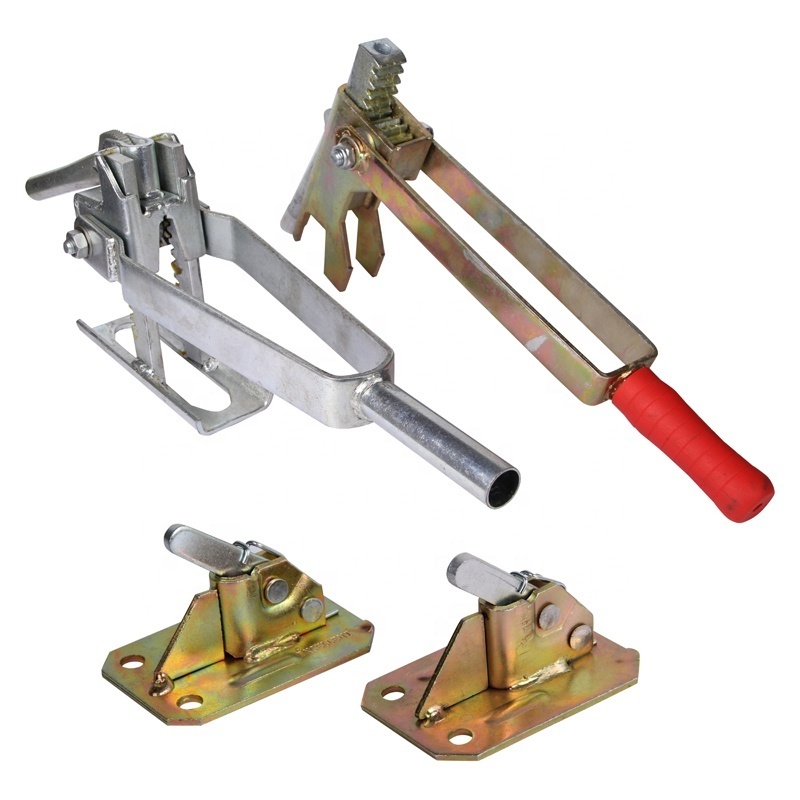

Clamp and Clamp Tensioners:
Casted Formwork Rapid Clamp and Wedge Clamp Tensioner
50pcs/bag, or 50pcs/ carton box
Then put in ton bag or on pallets
Formwork Tie Rod System
Components as following
1.Tie Rod/Tie Bar/Z Bar: Hot Rolled for 15/17mm, Cold Rolled for 12mm, 15/17mm, 20/22mm
2.Tie Nut: Anchor Nut, Wing Nut, Combination Nut with Casting Iron/ Forged
3. Hex Nut/Hex Coupler: 50mm, 100mm, 105mm with Casting Iron/Carbon Steel
4. Water Stop/Water Barrier Nut: Casting Iron with 15/17mm, 20/22mm
5. Steel Cone: 75mm & 100mm for tie rod 15/17mm
Plastic Spacers
1. Plastic Rebar Chair Spacer
2. Plastic Wheel Spacers
