Quick Details
-
MOQ:
-
1
-
Finish:
-
Stainless Steel
-
Warranty:
-
1 year
-
Material:
-
Stainless Steel
-
Package:
-
52*29*12cm
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YLI
-
Weight:
-
1.25kg
-
MOQ:
-
1
-
Finish:
-
Stainless Steel
-
Warranty:
-
1 year
-
Material:
-
Stainless Steel
-
Package:
-
52*29*12cm
-
Certification:
-
CE
Product Description
Product Application

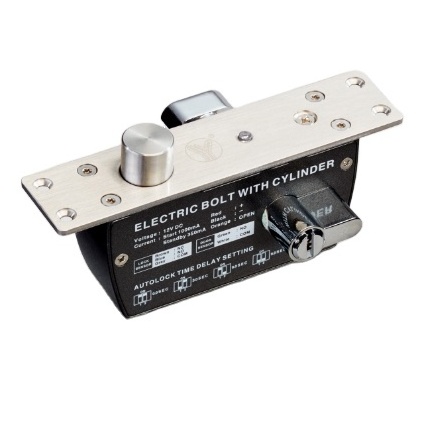

YB-620(LED) is an all-metal construction electric bolt.with European-type cylinder and has both electric control and manual control functions. The Fail Secure is Unlocked when energized.Under the temperature of 60 ℃ or -40 ℃ below zero it can be operated normally benefit by the all-metal linkage parts. The 304 stainless steel bolt can withstand 2000kg holding force.
|
Feature
|
Fail Secure
|
|
|
||
|
Lock Body
|
150Lx36WX57H(mm)
|
|
|
||
|
Magnetic Plate
|
150Lx36Wx3H(mm)
|
|
|
||
|
Bolt
|
16.5(length)*20(diameter)(mm)
|
|
|
||
|
Voltage
|
DC12V
|
|
|
||
|
Start Current
|
1000mA
|
|
|
||
|
Surface Temp
|
≤+20℃
|
|
|
||
|
Standby Current
|
350mA
|
|
|
||
|
LED
|
Light on indicates locked, light off indicates unlocked
|
|
|
||
|
Suitable For
|
Wooden door , metal door , fireproof door , glass door
|
|
|
||
|
Autolock Time Delay
|
0,3,6,9sec
|
|
|
||
|
Signal Output
|
Lock signal(NO/NC/COM);Door signal(NO/COM)
|
|
|
||
|
Material
|
304 stainless steel,wire draw finishing
|
|
|
||
