Quick Details
-
Brand Name:
-
D&C or OEM Logo
-
Model Number:
-
TNS-10KVA/20KVA/30KVA
-
Product Name:
-

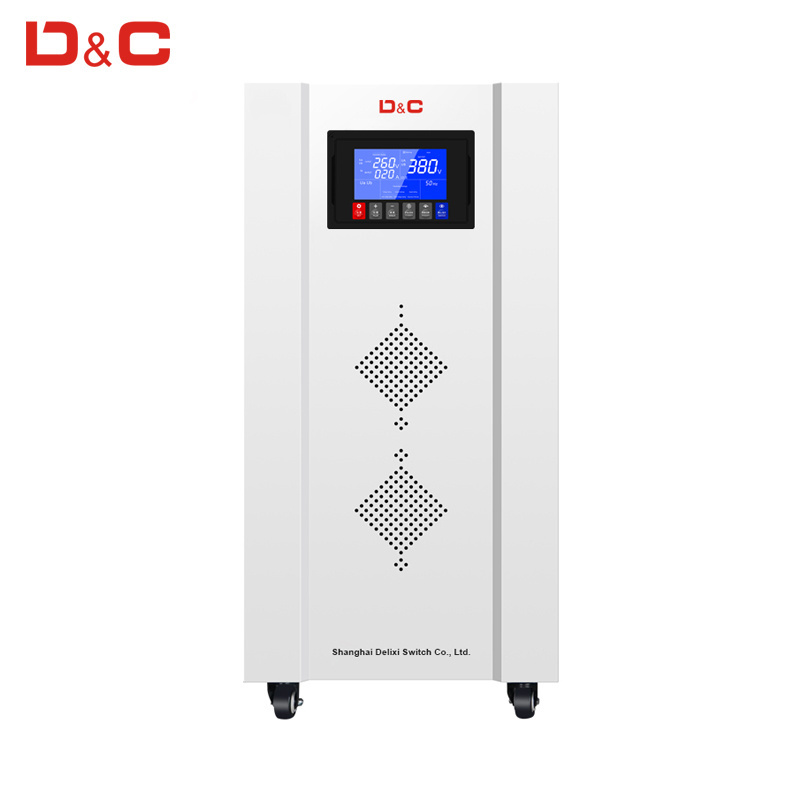

3 Phase Ac Automatic Voltage Regulator Stabilizers
-
Capacity:
-
10KVA to 120KVA Available
-
Input Voltage:
-
260V-450V
-
Output Voltage:
-
380V
-
Efficiency:
-
≥90%
-
Response Time:
-
≤1S
-
Ambient Temperature:
-
-10℃~+40℃
-
Type:
-
SERVO motor
-
Color:
-
Grey White
-
Protection:
-
Over/Under Voltage, Short Circuit, Over Temperature, Phase Failure,etc
Quick Details
-
Phase:
-
Three Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
D&C or OEM Logo
-
Model Number:
-
TNS-10KVA/20KVA/30KVA
-
Product Name:
-
3 Phase Ac Automatic Voltage Regulator Stabilizers
-
Capacity:
-
10KVA to 120KVA Available
-
Input Voltage:
-
260V-450V
-
Output Voltage:
-
380V
-
Efficiency:
-
≥90%
-
Response Time:
-
≤1S
-
Ambient Temperature:
-
-10℃~+40℃
-
Type:
-
SERVO motor
-
Color:
-
Grey White
-
Protection:
-
Over/Under Voltage, Short Circuit, Over Temperature, Phase Failure,etc
TNS series three phases high precision automatic voltage regulator is combined with TND(SVC) single phase high precision automatic voltage regulator .
- Three phases adjust individually to guarantee steady safe voltage in per phase
- Waveform distortionless, reliable performance,long-term operation
- Over voltage, undervoltage protected function
|
Specification |
TNS-1.5KVA up to 120KVA |
|
Input Voltage |
260V-450V/500V |
|
Output Voltage |
380V |
|
Output Deviance |
1-3%(Adjustable) |
|
Frequency |
50/60Hz |
|
Efficiency |
≥90% |
|
Response Time |
≤1S |
|
Ambient Temperature |
-10℃~+40℃ |
|
Insulation Resistance |
≥5MΩ |
|
Overload |
Double Reted Current,One Min |
|
Waveform Distortion |
Non-Lack Fidelity Wareform |
|
Protect |
Overvoltage,Overcurrent,Lack Phases |
| Trade Items | |
|
MOQ |
1 Set |
|
Design Ability |
OEM&ODM is welcome,can supply sample |
|
Certification |
CCC,CE,ISO9001, ISO14001,SGS |
|
Packing |
Standard Export Packing |
|
Payment Term |
Trade Assurance,T/T,L/C,D/A,D/P Western Union MoneyGram and so on |
| Delivery time | 7-10 working days after payment received |
