The drilling rig is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The rig can work on different formations, drilling diameter up to 245mm. The rig adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.

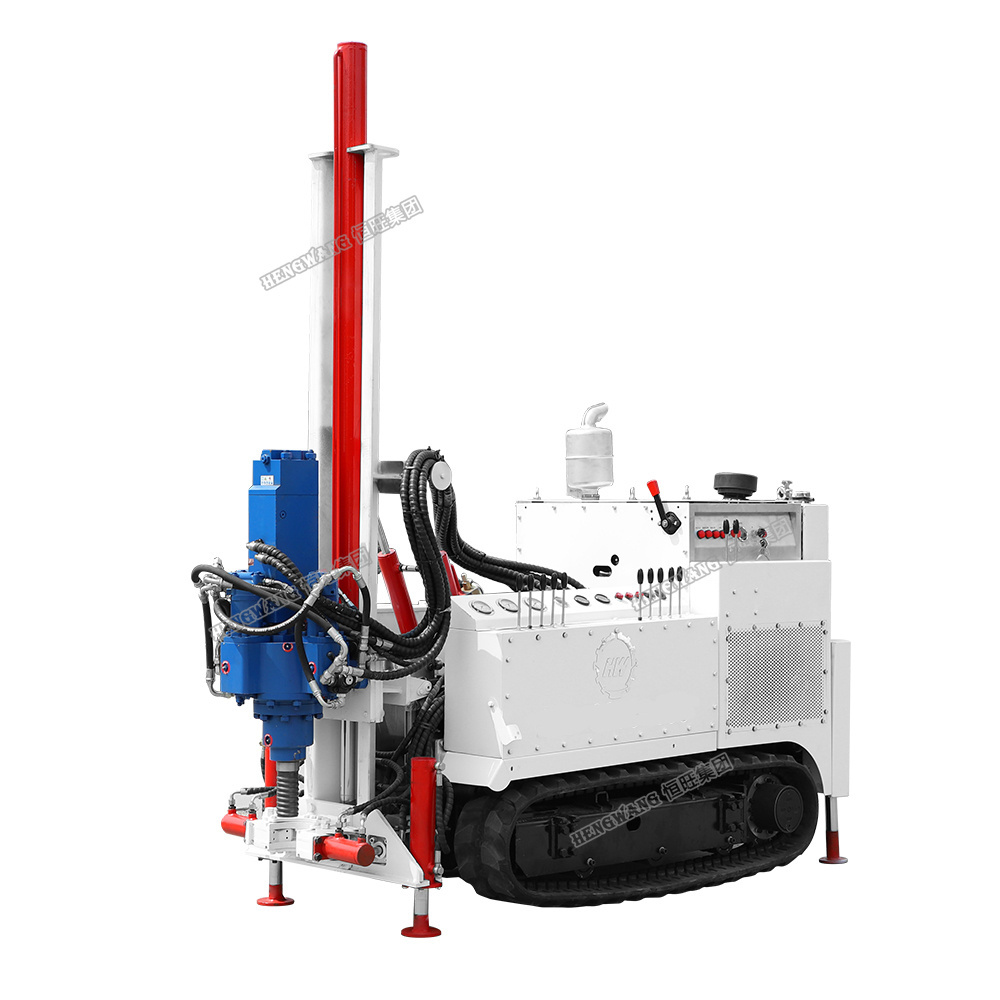

Environmental and Geotechnical Drill Rig for hard rock exploration work
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
3500 KG
-
Drilling Depth:
-
25m
-
Core depth:
-
0-30m
-
Drilling form:
-
Direct push
-
Casing diameter(mm):
-
52/63/76/95
-
Sampling diameter(mm):
-
38/52/65/70
-
DTH depth(m):
-
0-200
-
Drilling diameter(mm):
-
38-180
-
Effective stroke(mm):
-
1650
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HW
-
Dimension(L*W*H):
-
3400*1500*2400mm
-
Weight:
-
3500 KG
-
Drilling Depth:
-
25m
-
Core depth:
-
0-30m
-
Drilling form:
-
Direct push
-
Casing diameter(mm):
-
52/63/76/95
-
Sampling diameter(mm):
-
38/52/65/70
-
DTH depth(m):
-
0-200
-
Drilling diameter(mm):
-
38-180
-
Effective stroke(mm):
-
1650
Geological Survery Portable Drilling Rig,Core Sample Drilling Rig
Product Description
Technical Parameters
|
Model
|
HWED30
|
|
Core depth
|
0-30m
|
|
Drilling form
|
Direct push
|
|
Casing diameter（mm）
|
52/63/76/95
|
|
Sampling diameter(mm)
|
38/52/65/70
|
|
DTH depth（m）
|
0-200
|
|
Drilling diameter（mm）
|
38-180
|
|
Effective stroke（mm）
|
1650
|
|
Engine
|
Joint venture brand 40KW/3000r/min
|
|
Hydraulic pump
|
Imported plunger pump
|
|
Multi-way valve
|
Imported brand
|
|
Machine tubing
|
Made in German
|
|
Maximum lifting force
|
10 T
|
|
Drilling force
|
0-6.5 T
|
|
Direct push frequency
|
600-2000/bmp
|
|
Walking motor
|
Imported brand
|
|
Transport size
|
2600*950*1700mm
|
|
Working size
|
2550*950*4220mm
|
|
Total Weight
|
1.8 T
|
|
Walking speed
|
0-5 km/h
|
|
Maximum climbing angle
|
35 º
|
|
Remote control
|
Optional
|
