Quick Details
-
Applicable Industries:
-
Food, Conveyor, Chemical, Film casting, Sorter
-
Place of Origin:
-
China
-
Video outgoing-inspection:
-
Not available
-
Marketing Type:
-
New product
-
Core Components:
-
Steel Belt
-
Weight (KG):
-
220 kg
-
Width:
-
200~2000mm
-
Length:
-
customize available
-
Thickness:
-
0.5/0.8/1.0/1.2 mm
-
Material:
-
Austenitic Stainless Steel
-
Tensile strength, Mpa:
-
1200
-
Yield strength, Mpa:
-
980
-
Fatigue strength, N/m㎡:
-
±470
-
Hardness, HV:
-
360
-
Elongation:
-
25
-
Welding factor:
-
0.7
Quick Details
-
Power:
-
Depends on customer's situation
-
Warranty:
-
1 Year
-
Width or Diameter:
-
200~2000mm
-
Applicable Industries:
-
Food, Conveyor, Chemical, Film casting, Sorter
-
Place of Origin:
-
China
-
Video outgoing-inspection:
-
Not available
-
Marketing Type:
-
New product
-
Core Components:
-
Steel Belt
-
Weight (KG):
-
220 kg
-
Width:
-
200~2000mm
-
Length:
-
customize available
-
Thickness:
-
0.5/0.8/1.0/1.2 mm
-
Material:
-
Austenitic Stainless Steel
-
Tensile strength, Mpa:
-
1200
-
Yield strength, Mpa:
-
980
-
Fatigue strength, N/m㎡:
-
±470
-
Hardness, HV:
-
360
-
Elongation:
-
25
-
Welding factor:
-
0.7
|
Width
|
200~2000mm
|
|
Length
|
customize available
|
|
Thickness
|
0.5/0.8/1.0/1.2 mm
|
|
Material
|
Austenitic Stainless Steel
|
|
Tensile strength, Mpa
|
1200
|
|
Yield strength, Mpa
|
980
|
|
Fatigue strength, N/m㎡
|
±470
|
|
Hardness, HV
|
360
|
|
Elongation
|
25
|
|
Welding factor
|
0.7
|

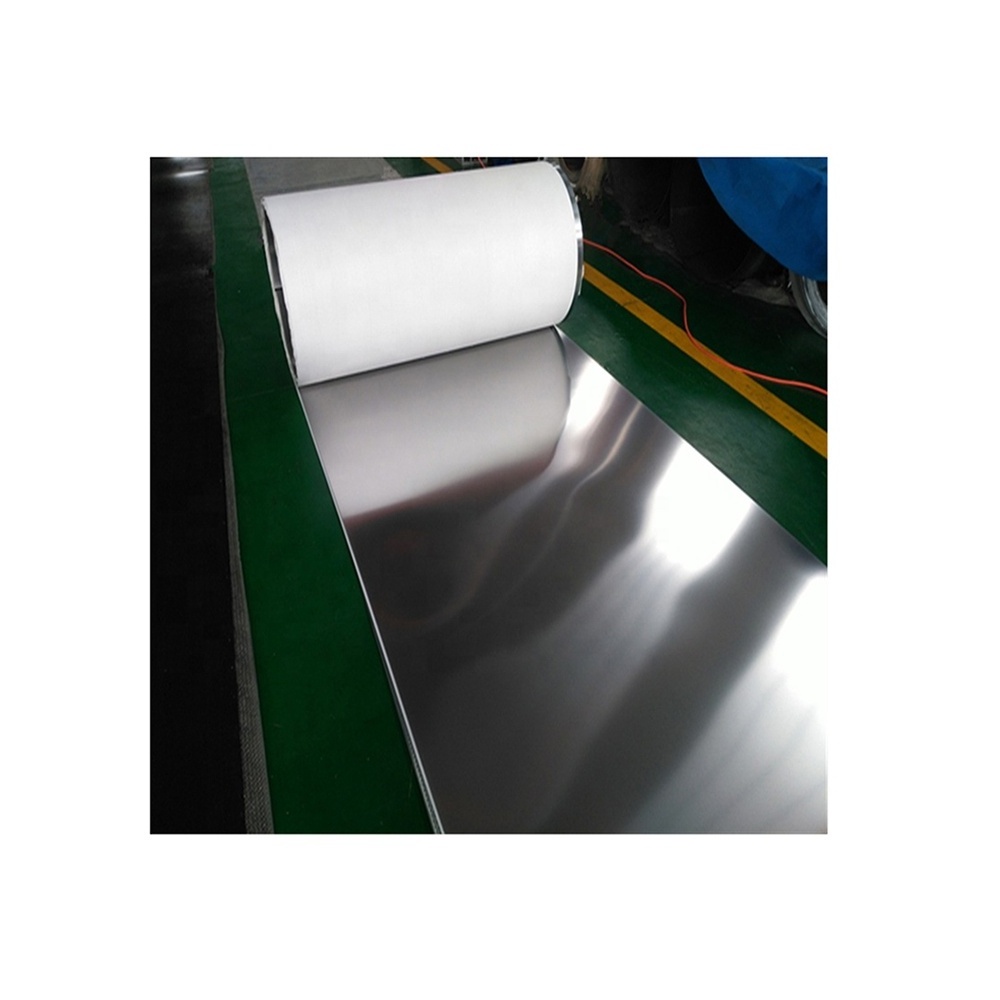

AT1200 STAINLESS STEEL BELT
AT1200 is a variation austenitic stainless steel belt, which performs very well in corrosion resistance. It can be further processed to supper-mirror-polished belt and perforation belt.
Applications:
Chemical
Food
Film casting
Conveyor
Sorter
Etc.
Scope of supply:
Length - customize available
Width - 200 ~ 2000 mm
Thickness - 0.5 / 0.8 / 1.0 / 1.2 mm
Let’s produce a AT1200 belt:
Shanghai Mingke Process Systems Co.,Ltd., founded in 2012, is a high-tech enterprise.
Mingke is specialized in the manufacture of high-end & high-strength steel belts and we provide continuous process solutions based on steel belts.
Our factory is located in Gaochun economic development zone, Nanjing city; and our R&D office is located in Fengxian district, Shanghai Hongqiao.
Mingke steel belt consists of imported top quality steel material in combination with European belt technology and knowhow. We can supply following types of steel belts: MT1650/MT1500/MT1050 Martensitic Stainless Steel Belts, AT1200/AT1000 Austenitic Stainless Steel Belts, DT980 Super Corrosion Resistant Dual Phase Stainless Steel Belt, CT1300/CT1100 Carbon Steel Belts, DT1320 Dual Phase Carbon Steel Belt, etc.
Our steel belts are widely applied to various industries, and they are playing the role of core component in all industrial automation process systems. Like: Wood Based Panel Industry (continuous double belt press / Mende press / single opening press), Chemical Industry (cooling flaking / pastillating machines), Rubber Industry (rubber rotary curing vulcanizer - Rotocure / plate vulcanizing machinery), Food Industry (tunnel bakery oven / drier for fruit and vegetables / IQF machine / meat conveyor / chocolate production lines / coffee cooling line...), Film Casting Industry (super-mirror-polished-steel-belt), Conveyor & Sorter Systems, Ceramic Industry (ceramic press), Steel Belt Sintering Oven, Scattering, Lamination (textured structure steel belt), Automotive Industry (tile testing), Papermaking Industry (metal belt calender), Aviation Industry (tunnel wind experiment) and Artificial Marble Industry, etc.
We have professional belt after-sales service system, located in nearly ten countries and regions around the world.
Apart from steel belt, Mingke can also supply belt equipment, like: Isostatic Double Belt Press, Chemical flaking/pastillation machines and Customzied Industrial Conveyors.
Mingke independently R&D manufactured Double Steel Belt Press is the first set of isostatic type Double Belt Press made by China.
Mingke Steel Belt
Nearly 10 years' experience.
The same quality level as EU.
Whole production process, from start to end, all by ourselves.
10+ after-sale service offices worldwide.
Located in Shanghai (headquarter) and Nanjing (Factory).
