Quick Details
-
Capacity:
-
500
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
OEM
-
Model Number:
-
CSQB-01
-
Product name:
-
Split Separated Solar hot Water Heater System
-
Application:
-
Domestic Hot Water
-
Warranty:
-
System /15 Years
-
Product Keywords:
-
200l camping split pressured solar
Quick Details
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Heating System:
-
Thermosyphon (Passive)
-
Capacity:
-
500
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
OEM
-
Model Number:
-
CSQB-01
-
Product name:
-
Split Separated Solar hot Water Heater System
-
Application:
-
Domestic Hot Water
-
Warranty:
-
System /15 Years
-
Product Keywords:
-
200l camping split pressured solar

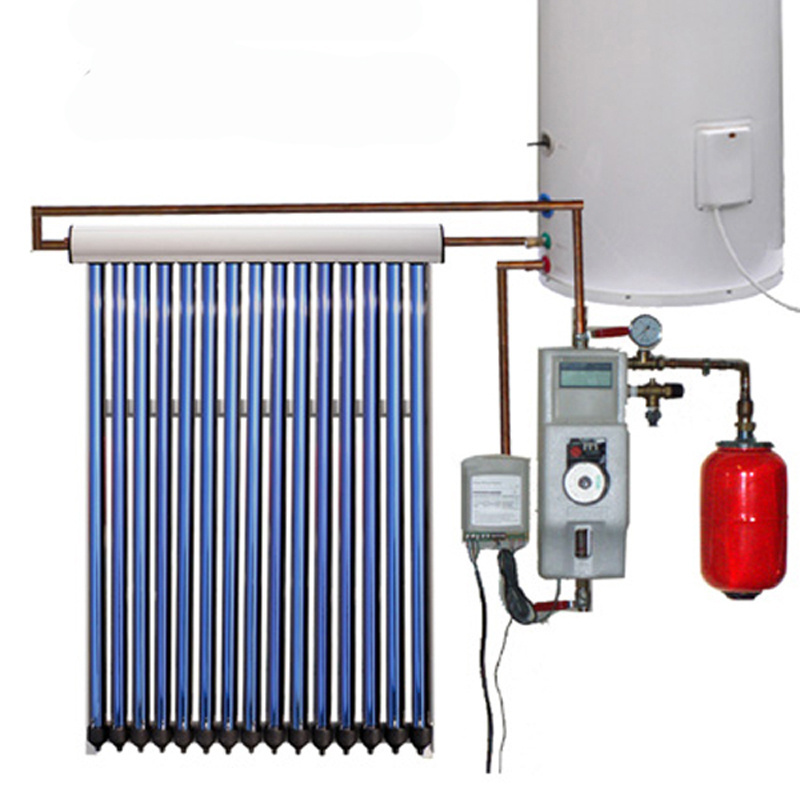

Split Separated Solar hot Water Heater System
|
Type |
Vertical Pressurized Solar Water Heater Tank |
|||||||
|
Capacity |
150L |
200L |
250L |
300L |
400L |
500L |
700L |
1000L |
|
Inner tank |
SUS304 2B
|
SUS304 2B
|
SUS304 2B
|
SUS304 2B
|
SUS304 2B
|
SUS304 2B
|
SUS304 2B
|
SUS304 2B
|
|
Outer tank |
Color Steel
|
Color Steel
|
Color Steel
|
Color Steel
|
Color Steel
|
Color Steel
|
Color Steel
|
Color Steel
|
|
PU Foam Insulation |
55mm |
50mm |
50mm |
50mm |
60mm |
60mm |
60mm |
100mm |
|
Coil heat exchanger |
Copper coil φ12/Stainless steel φ15.88/Flexible pipe φ19 |
|||||||
|
Working Pressure |
Suggest 2bars to 6bars |
|||||||
|
P/T Valve |
Release when pressure is over 7bars or tempertuare is over 95 °C |
|||||||
|
Electric booster |
1.5KW 220V or 2KW 220V normally |
|||||||
|
Suitable people |
3persons |
4persons |
5persons |
6persons |
8persons |
10persons |
14persons |
20persons |
|
Type |
CS-HP-10 |
CS-HP-15 |
CS-HP-20 |
CS-HP-25 |
CS-HP-30 |
CS-HP-15B |
CS-HP-30B |
|
Number of tubes |
10 |
15 |
20 |
25 |
30 |
15 |
30 |
|
Gross area (m²) |
1.63 |
2.40 |
3.17 |
3.93 |
4.70 |
1.33 |
2.42 |
|
Aperture area (m²) |
0.94 |
1.41 |
1.88 |
2.35 |
2.82 |
0.63 |
1.30 |
|
Absorber area (m²) |
0.805 |
1.24 |
1.65 |
2.06 |
2.48 |
0.54 |
1.08 |
|
Peak power (W / Collector) |
659 |
900 |
1199 |
1499 |
1799 |
450 |
900 |
|
Allowable operating pressure (bar) |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
|
Test pressure (bar) |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
|
Max. stagnation temperature |
232°C |
200°C |
200°C |
200°C |
200°C |
200°C |
200°C |
|
Max. operating temperature |
95°C |
95°C |
95°C |
95°C |
95°C |
95°C |
95°C |
|
Flow rate (l / m2h) |
50-150 |
50-150 |
50-150 |
50-150 |
50-150 |
50-150 |
50-150 |
|
Absorber material |
CU/AI/SS/N2 Borosilicate glass |
||||||
|
Coating |
ALN/SS-ALN/CU |
||||||
|
Absorption coefficient |
≥ 94% |
≥ 94% |
≥ 94% |
≥ 94% |
≥ 94% |
≥ 94% |
≥ 94% |
|
Emission coefficient |
≤ 7% |
≤ 7% |
≤ 7% |
≤ 7% |
≤ 7% |
≤ 7% |
≤ 7% |
|
Weight (kg) |
36.4 |
55 |
77 |
96 |
116 |
32 |
65 |
|
Liquid content |
0.62L |
0.93L |
1.24L |
1.55L |
1.82L |
0.93L |
1.82L |
|
Mounting angle |
15 - 75° |
15 - 75° |
15 - 75° |
15 - 75° |
15 - 75° |
15 - 75° |
15 - 75° |
|
Frame |
2mm Aluminum Alloy |
||||||
|
Heat pipe |
8mm red copper |
||||||
|
Long-term stable vacuum (Pa) |
<5*10-3 |
<5*10-3 |
<5*10-3 |
<5*10-3 |
<5*10-3 |
<5*10-3 |
<5*10-3 |
|
Glass tube diameter |
58mm |
58mm |
58mm |
58mm |
58mm |
58mm |
58mm |
|
Vacuum tube wall thickness |
1.6mm |
1.6mm |
1.6mm |
1.6mm |
1.6mm |
1.6mm |
1.6mm |
|
Insulation |
Compressed Rockwool |
||||||
|
Collector width |
800mm |
1175mm |
1550mm |
1925mm |
2300mm |
1175mm |
2300mm |
|
Collector length |
2043mm |
1200mm |
|||||
|
Manifold |
38mm red copper |
||||||
|
Tube length |
1800mm |
850mm |
|||||
|
Pressure drop |
< 5mbar(80L/h), 12mbar (150L/h) |
||||||
