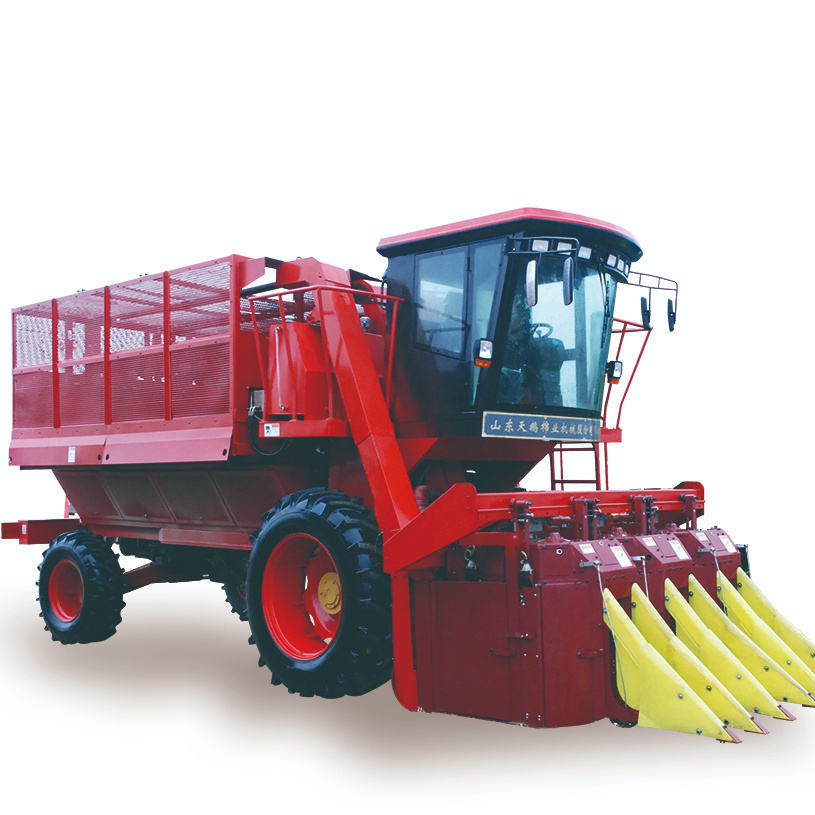

Agricultural machine high picking speed picker cotton 3 rows harvester machine price
Agricultural machine high picking speed picker cotton 3 rows harvester machine price
Agricultural machine high picking speed picker cotton 3 rows harvester machine price
Agricultural machine high picking speed picker cotton 3 rows harvester machine price
Agricultural machine high picking speed picker cotton 3 rows harvester machine price
Agricultural machine high picking speed picker cotton 3 rows harvester machine price

Agricultural machine high picking speed picker cotton 3 rows harvester machine price

FOB Reference Price: Get Latest Price
≥1 Sets
US $710000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Usage:
Cotton Harvester
Place of Origin:
China
Brand Name:
Swan
Dimension(L*W*H):
11010*3300*3900
Weight:
24000 KG
Marketing Type:
Hot Product 2023
Power:
242Kw
Suitable for:
Cotton picking
Crops:
cotton
Product name:
cotton picker
Color:
Red
Advantage:
High-quality
Harvesting row:
3 Rows
MOQ:
1 set
Power Type:
Diesel Fuel
Working speed:
0-8.6 km/h

Quick Details

Number of Rows:
3
Working Width(mm):
4200 mm
Tractor Power(HP):
320 - 325 HP
Usage:
Cotton Harvester
Place of Origin:
China
Brand Name:
Swan
Dimension(L*W*H):
11010*3300*3900
Weight:
24000 KG
Marketing Type:
Hot Product 2023
Power:
242Kw
Suitable for:
Cotton picking
Crops:
cotton
Product name:
cotton picker
Color:
Red
Advantage:
High-quality
Harvesting row:
3 Rows
MOQ:
1 set
Power Type:
Diesel Fuel
Working speed:
0-8.6 km/h
Product Description
Features
1. Equipped with a 325hp Cummins engine, electronically controlled hydraulic transmission and optional four-wheel drive, the top picking speed can reach 7.1 km/h.
2. Adopt t he most advanced PR016 picking head, the picking rate was up to 93%, with little fiber damage and low impurity rate of picking cotton.
3. The controllable continuous cotton discharging technology and forced feeding system can effectively reduce the chance of clogging, and the diameter of the cotton mold can be adjusted according to the field conditions.
4. Independent design of high-end cab, power shift transmission, hydraulic clutch transfer box, man-machine interface, user-friendly design makes the operation more comfortable.
5. The vehicle adopts CAN bus intelligent control system, which can realize automatic monitoring, fault alarm, moisture monitoring and other functions.
6. The core parts of the vehicle electrical appliances are imported, stable and reliable performance. Independent research and development of important parts and components, low cost of use and maintenance.
Specification
Item
Unit
Parameter
Cotton filed running speed 1 gear
km/h
0-7.1
Cotton filed running speed 2 gear
km/h
0-8.6
Highway running speed 1 gear
km/h
0-15
Highway running speed 2 gear
km/h
0-27
Rated power of engine
kw
242kw(325HP)
Minimum turning radius
m
6
Overall machine size (Transporate)
mm
11010x3300x3900
Overall machine size (Pick)
mm
9680×4200×4600
Wheel base
mm
4095
Type of drive
mm
4WD
Number of picking head
pcs
3
Number of spindle seat tube
pcs
Front 16 back 12
Number of spindle per seat tube
pcs
20
Total quantity of spindle
pcs
1680
Weight of cotton mold
kg
1400
Diesel tank
L
600
Clean tank
L
700
Lubricating grease tank
L
140
Overall Net Weight
ton
24
Packing & Delivery
Delivery method :
Optional by sea, by train, by car.
Packing Material :
Export wooden case
