Quick Details
-
Name:
-
EL-138LK Electric Strike Lock
-
Dimendions:
-
250Lx43.5Wx32.5H(mm)
-
Voltage:
-
DC12V(Need Order DC24V)
-
Suitable For:
-
Wooden Door,Metal Door,PVC Door
-
Suitable Temperature:
-
-10~+55℃(14-131F)
-
Operating Humidity:
-
0~90%(non-condensing)
-
Face plate Housing:
-
Painted Steel
-
Bolt Housing:
-
Stainless steel,Draw the Polishing of silk
-
Function:
-
Built-out MOV
-
Weight:
-
0.42kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Techcrepower
-
Model Number:
-
EL-138LK
-
Name:
-
EL-138LK Electric Strike Lock
-
Dimendions:
-
250Lx43.5Wx32.5H(mm)
-
Voltage:
-
DC12V(Need Order DC24V)
-
Suitable For:
-
Wooden Door,Metal Door,PVC Door
-
Suitable Temperature:
-
-10~+55℃(14-131F)
-
Operating Humidity:
-
0~90%(non-condensing)
-
Face plate Housing:
-
Painted Steel
-
Bolt Housing:
-
Stainless steel,Draw the Polishing of silk
-
Function:
-
Built-out MOV
-
Weight:
-
0.42kg

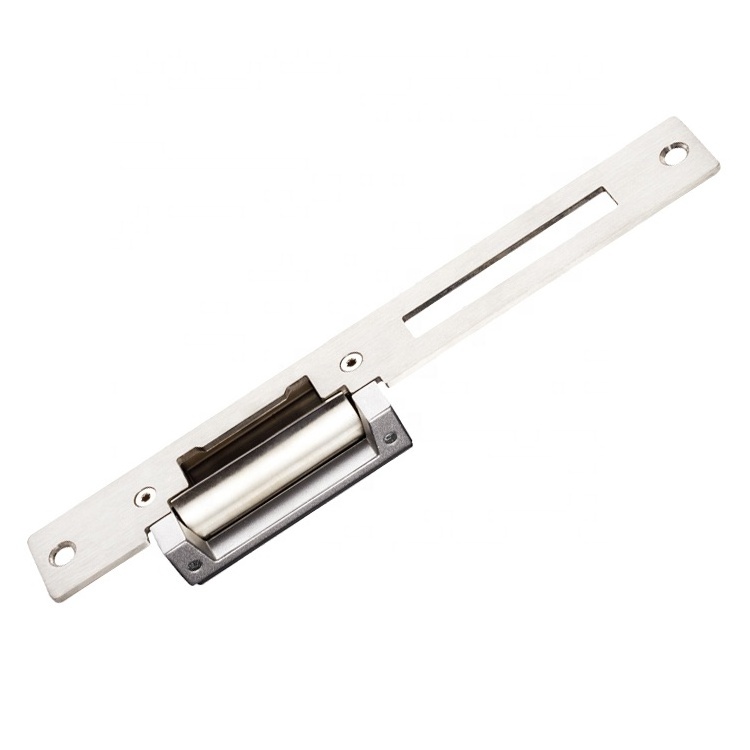

EL-138LK is a Long Type European Electric Strike, which is made of Stainless Steel. The Holding Force is 500KG. The Voltage is default DC12V. But DC24V is avaliable. It is suitable for Wooden Door,Metal Door,PVC Door.
Specifications:
| Product Parameter | Parameter Description |
| Lock Size | 250Lx43.7Wx35H(mm) |
| Strike Structure | Stainless Steel |
| Holding Force | 1000kg |
| Voltage | DC12V (Need Order DC24V) |
| Current | 12V/320mA;24V/160mA |
| Feature | Fail Secure(YS-138LKNO-S); Fail Safe(YS-138LKNC-S) |
| Suitable For | Wooden Door,Metal Door,PVC Door |
| Surface Temperature | Within +20℃ |
| Suitable Temperature | -10~+55℃(14-131F) |
| Operating Humidity | 0~90%(non-condensing) |
| Face plate Housing | Painted Steel |
| Function | Built-out MOV |
| Optional Accessories | YS-308 |
| Weight | 0.42kg |
Features:
• Holding 1000kg.
• Special design,easy to adjust the distance of the Lock-tongue.
• Designed for Metal Frame drill a hole,then install it directly.
• Testing to 1000000 cycles.
• High-Temperature Painted,Duable and Beatiful Artical.
• CE Certificate by European Union, MACertificate by China Public Security office.
About us:
Techcrepower is a professional supplier, who has specialized in Access Control Sytem and hotel lock system over 10 years, we has provided hundreds of millions of product, such as access controller, electronic lock, release button, reset switch,etc.
in China and worldwide.
We always focus on quality and services firstly. Believe you would be impressed with our products and services !
We will cherish every opportunity to cooperate with you!
