China pdc mining button pdc cutter for drilling bits
China pdc mining button pdc cutter for drilling bits
China pdc mining button pdc cutter for drilling bits
China pdc mining button pdc cutter for drilling bits
China pdc mining button pdc cutter for drilling bits
China pdc mining button pdc cutter for drilling bits
China pdc mining button pdc cutter for drilling bits
China pdc mining button pdc cutter for drilling bits

China pdc mining button pdc cutter for drilling bits

FOB Reference Price: Get Latest Price
≥10 Pieces
US $10
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Hunan, China
Brand Name:
ZZBT
Model Number:
1308,1313
Size:
1308, 1313, 1608, 1613, 1908, 1913, 1916
Usage:
MINING AND DRILLING
Packing:
Plastic Box
Certification:
ISO9001:2008
KEY WORDS:
DIAMOND BUTTONS, PCD BUTTONS
Application:
DRILLING BITS,BUTTONS BITS
MATERIAL:
WC, Ni, Co, Diamond
Key words:
PCD CUTTERS, PDC Drill bits
ADVANTAGES:
HIGH PERFORMANCE

Quick Details

Type:
Core Drill Bit
Use:
Masonry Drilling
Finish:
/
Place of Origin:
Hunan, China
Brand Name:
ZZBT
Model Number:
1308,1313
Size:
1308, 1313, 1608, 1613, 1908, 1913, 1916
Usage:
MINING AND DRILLING
Packing:
Plastic Box
Certification:
ISO9001:2008
KEY WORDS:
DIAMOND BUTTONS, PCD BUTTONS
Application:
DRILLING BITS,BUTTONS BITS
MATERIAL:
WC, Ni, Co, Diamond
Key words:
PCD CUTTERS, PDC Drill bits
ADVANTAGES:
HIGH PERFORMANCE
Product Description

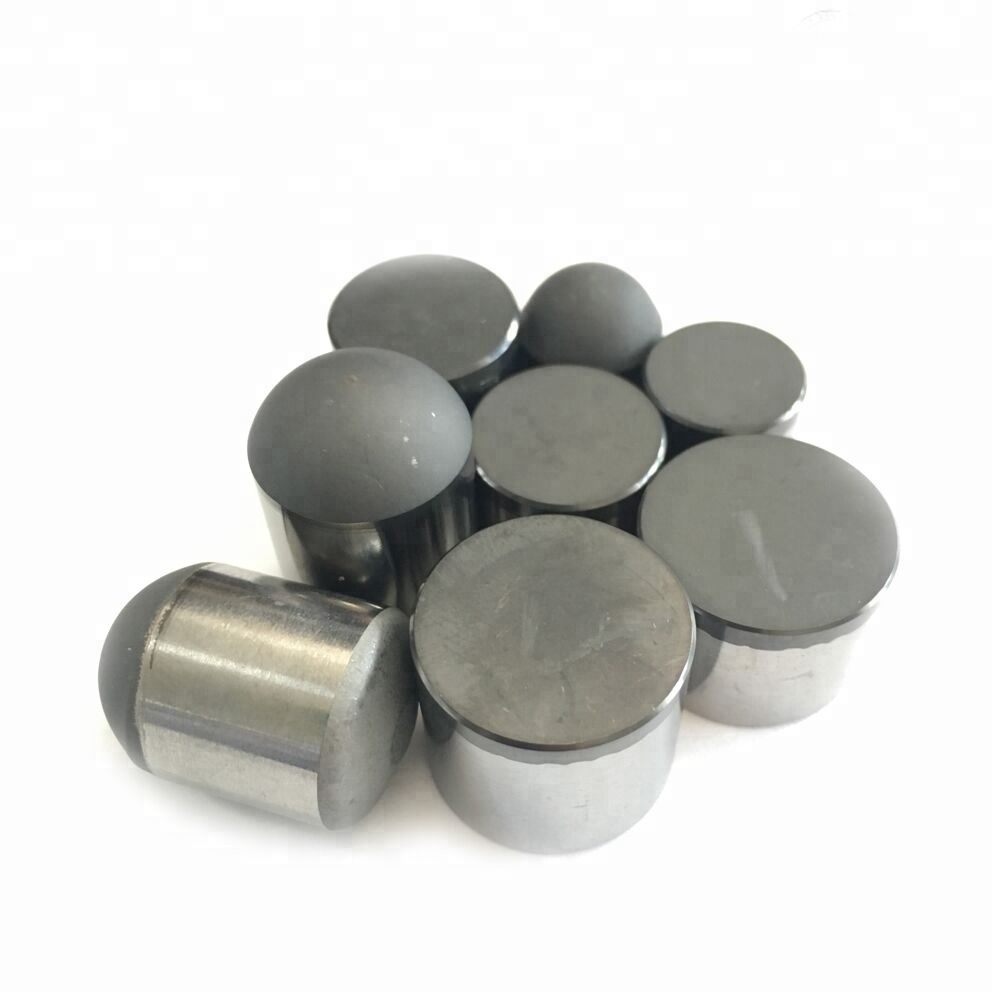

Oil Well Gas Drilling Bit PDC Cutter PDC insert 1308 1313 1613 1616 1919

The PDC cutters consist of a Polycrystalline Diamond layer and carbide substrate. PDC cutters are also named Polycrystalline Diamond Compact cutters, which is a kind of super hard material. The use of polycrystalline diamond compact (PDC) cutters is widely spread nowadays due to their high performance and durability in harsh environments.
The PDC cutters consist of a Polycrystalline Diamond layer and carbide substrate.

The diamond layer and substrate are sintered under ultra-high pressure and ultra-high temperature. In short, we say it’s HTHP
Press. The diamond is grown on the carbide substrate, not coated. They are firmly combined.

For more details, pls contact Irene freely!
Irene Li : Mail: irene*zzbetter.com / Mob: 8618173320261 / Web: www.zzbetter.com
Application
PDC cutters are produced with high-quality man-made diamond powder and tungsten carbide powder. The PDC cutters combine the high hardness and abrasion resistance of diamond and tungsten carbide, which are widely used for different drilling tools:
1. mining bits
2. geological bits
3. diamond DTH bit
4. diamond pick and other drilling tools.

Including below filed:
1. geothermal energy drilling
2. mining
3. water well
4. natural gas drilling and oil well drilling.
ZZbetter has different shapes of PDC drilling bit

1. PDC Flat Cutter
2. PDC Dome Cutter
3. PDC Conical Cutter
4. PDC Parabolic Cutter
5. PDC Square Cutter
6. Other Irregular PDC Cutter
For oil drilling we have PDC cutter blank and polished

Why usually make the PDC cutting teeth with a polished diamond layer?
Polished Cutters improve efficient cutting in soft formation with low friction surface and provide proper cooling.

PDC cutting insert's advantage: 10 times longer use life than tungsten carbide!

1. High hardness, high abrasion resistance and high impact resistance.
2. 5-10 times longer useful life compared with normal tungsten carbide, obviously reduce the frequency of replace the drill bit.
3. Effective and stable drilling speed to protect the equipment and reduce the drilling cost(30%-40% overall cost)
PDC inserts are no worn basically after drilling 90 meters
Carbide inserts are worn about 1/3 after drilling 16 meters.
Size Information
Flat cutter Size
Diameter
Total height
height of diamond layer
Chamfer of diamond layer
1308
13.44±0.05
8.0±0.1
2.0±0.1
0.41±0.05
1313
13.44±0.05
13.00±0.1
2.0±0.1
0.41±0.05
1608
16.0±0.05
8.0±0.1
2.0±0.1
0.41±0.05
1613
16.0±0.05
13.00±0.1
2.0±0.1
0.41±0.05
1908
19.0±0.05
8.0±0.1
2.0±0.1
0.41±0.05
1913
19.0±0.05
13.00±0.1
2.0±0.1
0.41±0.05
1916
19.0±0.05
16.0±0.1
2.0±0.1
0.41±0.05
Related Products
Product packaging
Oil Well Gas Drilling Bit PDC Cutter PDC insert 1308 1313 1613 1616 1919

First in plastic box, then in cartons, or as customers' requirement.
Company Introduction
Zhuzhou Better Tungsten Carbide Co., Ltd is located in ZhuZhou city, Hunan province, the largest tungsten carbide producing area in China.

Our main products include: PDC drilling bit, carbide inserts, end mills, carbide rods, carbide strips and plates, carbide dies, carbide roll rings, carbide blades, carbide tips, mining bits, carbide pins, carbide studs, boron carbide, water jets cutting nozzles, cast tungsten carbide, tungsten carbide welding rods.

We sincerely hope we can provide our customers with good quality products, moderate price together with professional service.
Exhibition
FAQ
1. Can I negotiate the Prices?
Yes, we may provide discounts for bulk orders of individual products.

2. What is your minimum order requirement?
We will indicate the MOQ for each item in the quotation sheet.

3. How long will it take to deliver my order?
For the stock items, we can arrange the shipment within 3-5 days after received your payment. For the customized items, we will indicate the delivery time in the quotation sheet.
Why choose us

What are the superiorities of ZZBETTER?

1. Competitive price
2. Quality guarantee (ISO9001)
3. Short delivery time
4. Professional sales team 24 hours online service
5. Various size for selection, customized as your drawing available
We warmly welcome every customer to send us drawings for making customized product. Contact with us, you will get more than what you can !
