I. Overview

Because of the extreme complexity of the power cable laying environment, pinpointing points has always been a critical step in cable fault testing. Even with an accurate rough side distance, it is difficult for us to locate quickly and accurately due to the influence of the external environment. The HZ-B cable fault precise locating instrument is a portable, ultra-quiet, visual impact discharge receiving precise locating instrument. It is specially used in conjunction with a high-voltage impact generator. It adopts leading background intelligent noise reduction and sound tracking new technologies to achieve Continuous optimization, perfect sound effect, record the characteristic sound of impact discharge and the signal that will be picked up at the scene to achieve comparison.

When HZ-B uses continuous impulse discharge at the front end, the impulse discharge sound of the fault point within the distance of the thick side propagates on the ground above the cable and is recorded by the ground-penetrating sensor on the ground. The distance between the detection point and the real fault point of the cable can be obtained by the method of impact discharge noise volume.

II. Technical characteristics

Ultra-quiet noise reduction processing, excellent sound quality of discharge sound, the background is quieter, monitor earphones are used to quickly and reliably locate the fault location.

Using ultra-quiet technology and BNR intelligent background noise reduction technology, you can adjust the impact discharge volume.

Molded design of a special self-falling ground sensor, and equipped with a soft pavement, hardened pavement, lawn sensor joint.

Reliable imported connectors are selected to ensure the purity of the sound, and the height-adjustable probe handle is humanized, which is very suitable.

III. Technical parameter:

Sensor dynamic range: sound channel> 104dB.

The impact discharge sound amplification factor > 90dB, and the upper limit of impact discharge volume is 84dB (A).

Liquid crystal display: high-bright true color screen, 320 x 240 pixels, suitable for outdoor.

Continuous working time on site: Alkaline replaceable battery, convenient for on-site use

1. Standard configuration:

· One receiver host, model HZ-B, with shoulder strap

· A sensor (ground microphone).

· One height-adjustable handle, height range 450 – 750 mm

· One headphone with sound quality

· One signal line, connecting the main unit of the receiver with the sensor, 1.20 m long

· One hard ground probe, 18 mm long

· One grass probe, 75 mm long

· 6 alkaline batteries of type 5, type IEC R6

· A manual

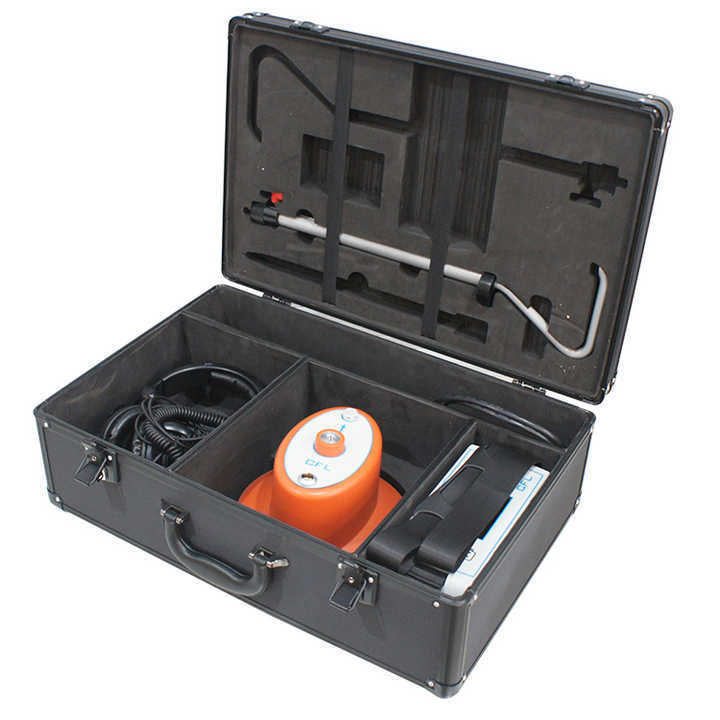

Packing List

We have our own manufacturing factory,pls see the below certificate,we are the direct supplier.

We are a new enterprise engaged in development,produce & sale a serious of power system products, such as Cable fault tester,  transformer test class, lightning arrester test class, comprehensive test class.

From the date of purchase within one year instrument,the warranty time is 12 months.This is the piriod of free repair replacement, lifetime supply of maintenance and technical services. If the instrument has been found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
