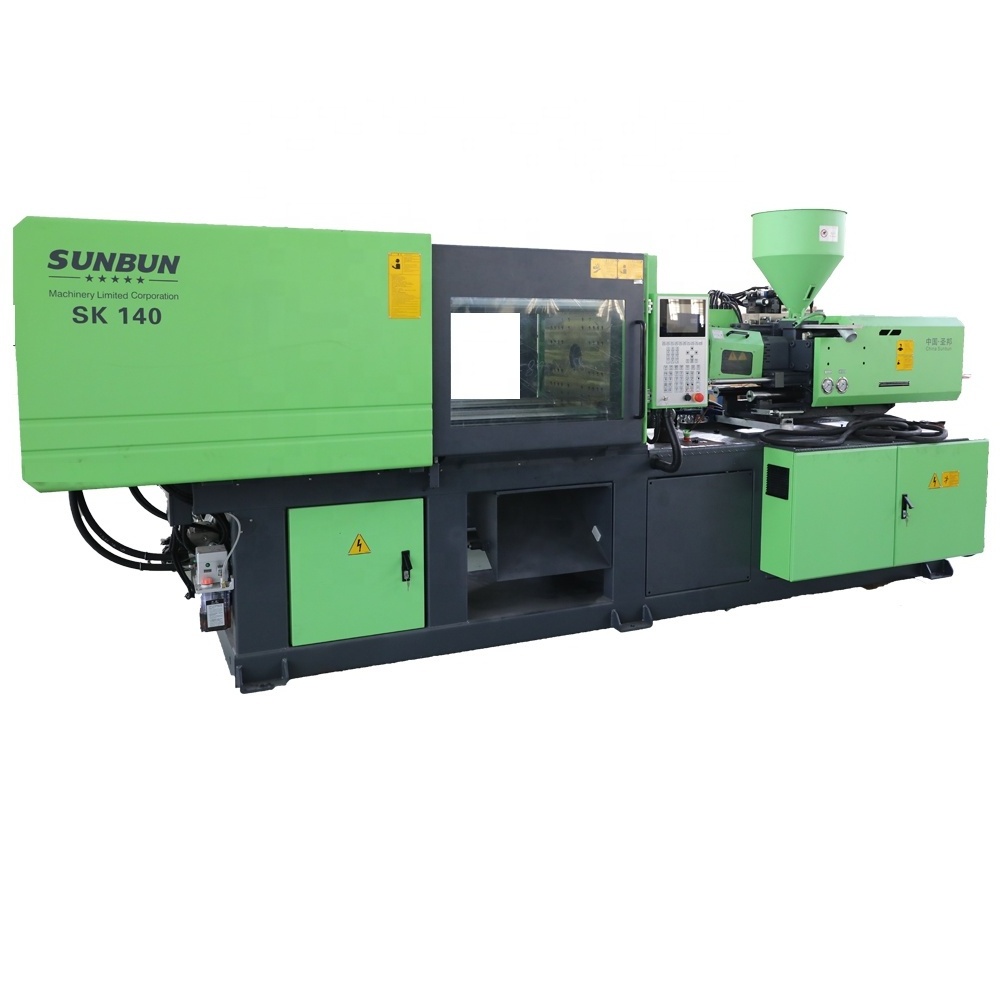

New Central Locking Design Germany Plastic Injection Molding Machine With Horizontal High Speed Mini Semi Auto Function
New Central Locking Design Germany Plastic Injection Molding Machine With Horizontal High Speed Mini Semi Auto Function
New Central Locking Design Germany Plastic Injection Molding Machine With Horizontal High Speed Mini Semi Auto Function
New Central Locking Design Germany Plastic Injection Molding Machine With Horizontal High Speed Mini Semi Auto Function
New Central Locking Design Germany Plastic Injection Molding Machine With Horizontal High Speed Mini Semi Auto Function
New Central Locking Design Germany Plastic Injection Molding Machine With Horizontal High Speed Mini Semi Auto Function
New Central Locking Design Germany Plastic Injection Molding Machine With Horizontal High Speed Mini Semi Auto Function
New Central Locking Design Germany Plastic Injection Molding Machine With Horizontal High Speed Mini Semi Auto Function

New Central Locking Design Germany Plastic Injection Molding Machine With Horizontal High Speed Mini Semi Auto Function

FOB Reference Price: Get Latest Price
≥1 Sets
US $18000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Mold Height(mm):
200 - 545 mm
Ejector Number:
1+4
Ejector Stroke(mm):
490 mm
Ejector Force(kN):
45 kN
Theoretical Shot Volume(cm³):
432 cm³
Injection Rate (g/s):
196 g/s
Injection Weight (g):
393 g
Screw Speed (rpm):
1 - 210 rpm
Screw diameter (mm):
50 mm
Screw L/D Ratio:
20
Distance between Tie Bars:
520x470 mm
Weight (KG):
5600 kg
Place of Origin:
Zhejiang, China
Open Stroke(mm):
490 mm
Model Number:
SK180
Brand Name:
SUNBUN
Power (kW):
18.5 kW
Product name:
Small Plastic Inejction Molding Machine

Quick Details

Distance between Tie Bars(Width)(mm):
520mm
Distance between Tie Bars(Height)(mm):
470mm
Plasticizing Capacity(g/s):
196 cm3/s
Mold Height(mm):
200 - 545 mm
Ejector Number:
1+4
Ejector Stroke(mm):
490 mm
Ejector Force(kN):
45 kN
Theoretical Shot Volume(cm³):
432 cm³
Injection Rate (g/s):
196 g/s
Injection Weight (g):
393 g
Screw Speed (rpm):
1 - 210 rpm
Screw diameter (mm):
50 mm
Screw L/D Ratio:
20
Distance between Tie Bars:
520x470 mm
Weight (KG):
5600 kg
Place of Origin:
Zhejiang, China
Open Stroke(mm):
490 mm
Model Number:
SK180
Brand Name:
SUNBUN
Power (kW):
18.5 kW
Product name:
Small Plastic Inejction Molding Machine
Product Overview

Sunbun, Your best high Speed & Precision Injection Molding Machine

SK series. From 140T-2800T as the lastest generation injection molding machine of SUNBUN group featuring the mechanical Central Locking Structure. Different with 99.9% injection machine among the market

With 100% clamping force and longer open stroke which can be use smaller machine make bigger products. Material saving 2%-6% than normal machine enjoy solid reputation from all the clients.

Horizontal Thermoplastic cheap price injection speed arrive 111-140 mm/s .

FEATURES AT A GLANCE
ADVANTAGE OF " CENTRAL LOCKING TECHNOLOGY "
● 100% Clamping Force Ratio, 10%-20% Higher Than Tradtional One

● Less Fins On The Finished Products

● 2%-6% Raw Material Saved From Tradtional One

● Effective Production For Mold, Mold Board and Pull Rod

●Open Stroke 10%-20% Bigger Than Morlam One

● Less Deformation By CoolIng
PRODUCT SPECIFICATIONS
Item /  Type
Unit
SK180/ C600
Injection Part
Screw Diameter
mm
40
45
50
Screw Ratio
L/D
22
22
20
Theoretical Injection Volume
cm³
276
350
432
Injection Volume （PS）
g
251
318
393
Max Injection Rate
cm³/s
126
159
196
Injection Pressure
Mpa
215
169
137
Injection Stroke
mm
220
Max Injection Speed
mm/s
111
Max Rotational Speed Of Screw
r/min
210
Clamping Part
Clamp Tonnage
KN
1800
Toggle Stroke
mm
490
Tie Bar Distane
mmxmm
520x470
Max mold
mm
545
Min Mold
mm
200
Ejection Stroke
mm
150
Ejector Force Forward
KN
45
Ejector Back Force Forward
KN
30
Die Timble Amount
Pcs
1+4
Others
System Pressure
Mpa
17.5
Motor Power
KW
18.5
Temperature Control Zone Qty
KW
9.95
Oil Tank Capacity
L
230
Machine Size
M
5.5x1.5x1.9
Machine Weight
Ton
5.6

INJECTION SYSTEM

* The enhanced double-cylinder dual-extruding enjection structure will produce a lower back pressure in oil return duringejection. have a quicker injection speed and longer service life
* The dual linear-guide , double displacement balanced stand can improve machine barrel accuracy
* Precise screw design will dramatically improve the injection accuracy and effectively reduce the defective rate. (38/42 CrmoAl)
* The optioncal pneumatic nozzle imported with orginal package has a flexible switch device and reliable seal
* The cylinder with thicker wall and a high power heater can ensure a high plasticizing efficiency

CLAMPING SYSTEM - CENTRAL LOCKING TECHNOLOGY

* SK Series adopts outwards toggle and excelent design ideal . with quite large bar space between four column. Which is required by different industries.
* Super large open stroke is 10%-20% bigger than normal one. More suitable for deep cavity product
* QT500-7 Mold board is much strong for long time service .
* Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting the mold thickness

HYDRAULIC SYSTEM

* With international High Speed Storage motor and Hydraulic Components ensure fast , effcient and long life operation
* Modualr design for High-Response oil circult and hydraulic valve plate Which have a large oil circule and free of damp effectively reduce pressure loss , speed up system response ability
* Original germany oil pipe and seals avoid oil leak
PRODUCT CONFIGURATION
Successful Project
Russia SK180
https://youtu.be/55ZoR3-GyWo
Huawei Rounter
https://youtu.be/xJhGSwfsLy0
Buick Car Logo
https://youtu.be/sK5O6IUpjdo
PACKING & DELIVERY
