  Automatic Fish Fillet Making Machine Fish Cleaning Machine Fish Processing Equipment
  Automatic Fish Fillet Making Machine Fish Cleaning Machine Fish Processing Equipment
  Automatic Fish Fillet Making Machine Fish Cleaning Machine Fish Processing Equipment
  Automatic Fish Fillet Making Machine Fish Cleaning Machine Fish Processing Equipment
  Automatic Fish Fillet Making Machine Fish Cleaning Machine Fish Processing Equipment
  Automatic Fish Fillet Making Machine Fish Cleaning Machine Fish Processing Equipment
  Automatic Fish Fillet Making Machine Fish Cleaning Machine Fish Processing Equipment
  Automatic Fish Fillet Making Machine Fish Cleaning Machine Fish Processing Equipment

Automatic Fish Fillet Making Machine Fish Cleaning Machine Fish Processing Equipment

FOB Reference Price: Get Latest Price
≥1 Sets
US $5600
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Hitrees
Voltage:
380v
Power:
55kw
Dimension(L*W*H):
18*4*5
Weight:
5 KG
Name:
Fish Processing Equipment
Function:
Multifunctional
Advantage:
Easy Operation High Efficiency
MOQ:
1 Set
Suitable for:
Salmon Tilapia Pollack
Related machine:
Automatic Fish Meat Bone Separating Machine
Fish aplicable:
Diferent Kinds
Fish processing:
Cuting deheading washing freezing
After Warranty Service:
Video technical support
Certification:
ce

Quick Details

Type:
Cleaning Machine cutting freezing skining
Production Capacity:
300-500kg /h
Place of Origin:
China
Brand Name:
Hitrees
Voltage:
380v
Power:
55kw
Dimension(L*W*H):
18*4*5
Weight:
5 KG
Name:
Fish Processing Equipment
Function:
Multifunctional
Advantage:
Easy Operation High Efficiency
MOQ:
1 Set
Suitable for:
Salmon Tilapia Pollack
Related machine:
Automatic Fish Meat Bone Separating Machine
Fish aplicable:
Diferent Kinds
Fish processing:
Cuting deheading washing freezing
After Warranty Service:
Video technical support
Certification:
ce
Product Overview

FISH PROCESSING LINE

This is a complete line for the fish processing: including the preparatory processing and deep processing.
1. Preparatory processing:
fish bleeding, fish -head removing machine, gutting table, middle bone removing machine, fish skin removing machine,washing
2. Deep processing machine:
Battering machine, tempura battering machine, breading machine, frying machine and IQF freezing machine and packing machine
FEATURES AT A GLANCE
Dimensions
1700*600*1050 + 1700*550*1200mm.
Power
1.5kw
Voltage
380v or customized
Speed
120pcs/minutes
Range of fish length
90-180mm
Warranty

12 months
Material

Sus 304 stainless steel

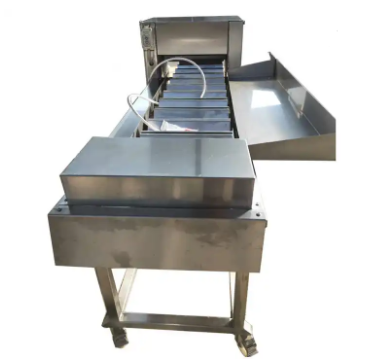

1.fish de-heading, cutting and gutting machine

Brief description:
This equipment is a multi-function small fish processing line for fish de-heading, cutting and gutting. Only one person is
required to operate and the equipment will automatically complete all the processing by itself.

Main characteristics of this equipment are as follows:
1. Saving labor cost
2. Compact structure, easy to move, can work on a truck also.
3. High efficiency
4. Easy operation
5. Low energy consumption.
2.Fish skin removing machine
Technology parameters
model :FSH-300
size :540*420*410 mm
Power: 200 w
capacity :15-30 PCS/MIN
material :Food grade stainless steel 304
Introduction :This machine is used to remove the fish skin high efficiently.
Main features:
1. Skin automatically
2. The machine is made of food grade stainless steel. With a high output capacity more than 99%;
3. The equipment can dismantle and assemble simply, easy to clean;
4. Use high quality knife, much sharper and durable, have a long service life;
5. Apply for process large/ medium size fish.

3.Breading machine

model :HI -400 or 600
size: 2900×1160×2280 mm
power: 4.2 kw
speed : adjustable
introduction : coat one layer of breadcrumbs uniformly automatic.
At the end of the belt with the extra breadcrumbs removing system.

4.Battering machine

model :HI-400 or 600
size : 1936*1035*1450mm
speed :3-15m/min adjustable
Power : 2.6kw
introduction : This machine is used to coat one layer thin batter to do preparation for predusting machine.
Continuous frying machine
model :HI4500
heating system : electricity or gas or lpg or diesel
frying time :adjustable
introduction : it is for frying the burger or fill fillet
Material: 304 stainless steel

Spiral freezer iqf

model :SF300
freezing time :20-100min
freezing temperature :- 35℃
material : sus304
i ntroduction : it is for instant quick freezing for the fish products. can be spiral freezer or tunnel freezer based on request

Tunnel iqf freezer

model : TF300
freezing time : 20-100min
freezing temperature :- 35℃
material : sus304
introduction : it is for instant quick freezing for the fish products. can be spiral freezer or tunnel freezer based on request
PRODUCT CONFIGURATION
plate contact freezer
ice glazing machine
Defrosting room
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in USA
Project in Mexico
