- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
S Type
-
Warranty:
-
Other
-
Certification:
-
CCC,CE
-
Output Voltage:
-
12V/24V/48V
-
rotor diameter:
-
1.2m
-
Product name:
-

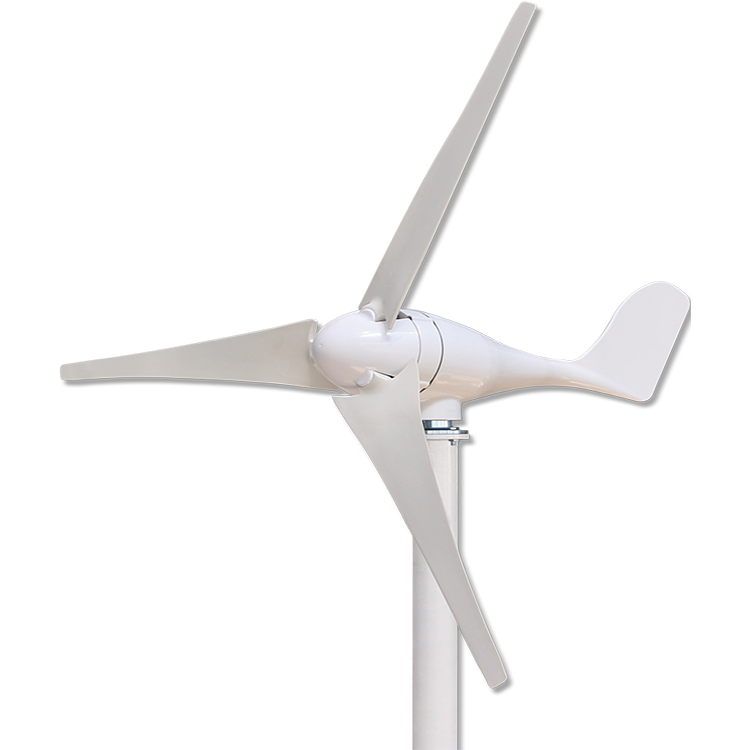

100watts Wind Turbine 100w 200w 400w Vertikal
-
Application:
-
Wind Power System
-
Rated Voltage:
-
12V/24V/48V
-
Generator type:
-
3 Phase AC Permanent-magnet
-
Type:
-
Permanent Magent Generator
-
Rated wind speed:
-
3.5m/s-13m/s
-
Blade Material:
-
Reinforced Nylon Fiber
-
Fuselage material:
-
Reinforced die-cast aluminum
-
Start the wind speed:
-
2m/s
-
Safe wind speed:
-
55m/s
Quick Details
-
Rated Power:
-
100w
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ST
-
Model Number:
-
S Type
-
Warranty:
-
Other
-
Certification:
-
CCC,CE
-
Output Voltage:
-
12V/24V/48V
-
rotor diameter:
-
1.2m
-
Product name:
-
100watts Wind Turbine 100w 200w 400w Vertikal
-
Application:
-
Wind Power System
-
Rated Voltage:
-
12V/24V/48V
-
Generator type:
-
3 Phase AC Permanent-magnet
-
Type:
-
Permanent Magent Generator
-
Rated wind speed:
-
3.5m/s-13m/s
-
Blade Material:
-
Reinforced Nylon Fiber
-
Fuselage material:
-
Reinforced die-cast aluminum
-
Start the wind speed:
-
2m/s
-
Safe wind speed:
-
55m/s
Description:
1.Low start up wind speed, 3 blades ,high wind energy utilization
2.Easy installation, tube or flange connection optional
3.Blades using new art of precision injection molding,matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.
4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind and run more safely
5.Patented permanent magnet ac generator with special stator,effectively reduce torque,well match the wind wheel and generator, and ensure the performance of whole system.
6.Controller,inverter can be matched accroding to customers’ specific needs
|
Rated power
|
100W
|
200W
|
300W
|
400W
|
|||
|
Maximum power
|
110W
|
210W
|
310W
|
410W
|
|||
|
Rated voltage
|
12V/24V/48V
|
|
|
|
|||
|
Start the wind speed
|
2m/s
|
|
|
|
|||
|
Operating wind speed
|
3.5m/s-13m/s
|
|
|
|
|||
|
Safe wind speed
|
55m/s
|
|
|
|
|||
|
Number of blades
|
3/5/6/8/10
|
|
|
|
|||
|
Blade material
|
Reinforced nylon fiber
|
|
|
|
|||
|
Fuselage material
|
Reinforced die-cast aluminum
|
|
|
|
|||
|
Magnetic steel material
|
NdFeB
|
|
|
|
|||
|
Generator type
|
Three-phase AC permanent magnet synchronous generator
|
|
|
|
|||
|
Control mode
|
Electromagnetic brakes
|
|
|
|
|||
|
Wind direction adjustment
|
Automatically adjusts the windward angle
|
|
|
|
|||
