Quick Details
-
Brand Name:
-
Feiman
-
Model Number:
-
H102
-
Product name:
-

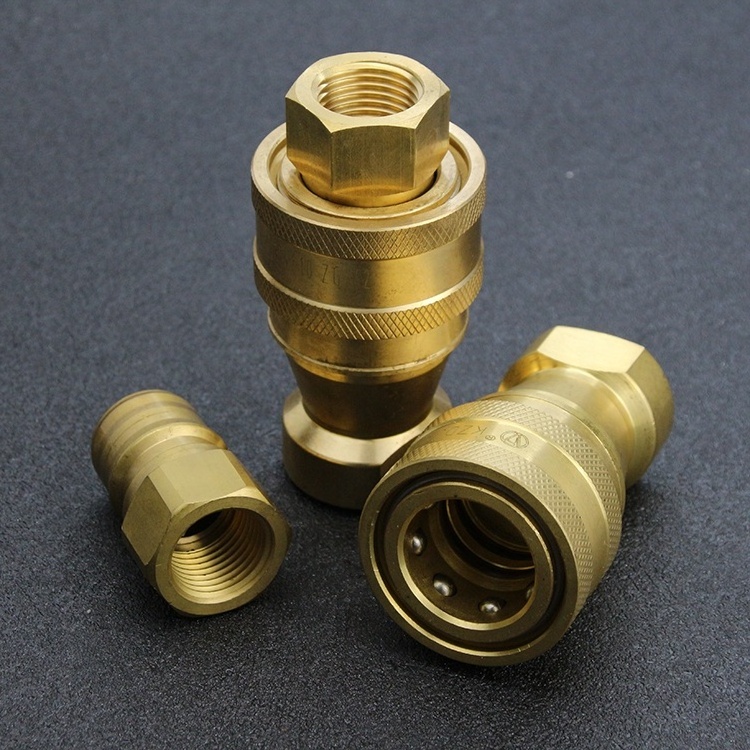

Open and Close Type Hydraulic Quick Couplings
-
Material:
-
Brass
-
Size:
-
1-1/4"inch
-
Rated Pressure:
-
800 PSI
-
Rated Flow:
-
283.5 L/min
-
Temperature:
-
-20℃~80℃
-
Standard:
-
ISO7241-B
-
Certificate:
-
ISO9001
Quick Details
-
Head Code:
-
Hexagon
-
Warranty:
-
3 Months
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Feiman
-
Model Number:
-
H102
-
Product name:
-
Open and Close Type Hydraulic Quick Couplings
-
Material:
-
Brass
-
Size:
-
1-1/4"inch
-
Rated Pressure:
-
800 PSI
-
Rated Flow:
-
283.5 L/min
-
Temperature:
-
-20℃~80℃
-
Standard:
-
ISO7241-B
-
Certificate:
-
ISO9001
Products Description
Applications and features .
1 .The H102 Series hydraulic quick couplings are mainly used for construction equipment,forestry equipment, hydraulic machinery and oil equipment and other required hydraulic applications.
2. Poppet valves are available to prevent uncoupled leakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
3. Material： Brass
4. H102 series conforms to the standard of ISO7241-B.
5. Compatible with PARKER60 Series , FASTER HNV Series AEROQUIP FD45 Series and HANSEN HK Series.
|
Product name
|
Open and Close Type Hydraulic Quick Couplings
|
|
|
|
|
|
|
|
|
||||||||
|
Part No.
|
H102
|
|
|
|
|
|
|
|
|
||||||||
|
Body size（In）
|
1/8
|
1/4
|
3/8
|
1/2
|
3/4
|
1
|
1-1/4
|
1-1/2
|
2
|
||||||||
|
Rated Pressure(PSI)
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
800
|
800
|
800
|
||||||||
|
Rated flow(L/Min)
|
3.78
|
11.34
|
22.68
|
45.36
|
105.84
|
189
|
283.5
|
378
|
567
|
||||||||
|
Application
|
Construction equipment，forestry equipment，hydraulic tools，oil equipment，steel mill machinery and other industry required hydraulic connection
|
|
|
|
|
|
|
|
|
||||||||
|
Standard
|
ISO7241-B
|
|
|
|
|
|
|
|
|
||||||||
|
Temperture Range
|
-20℃~80℃
|
|
|
|
|
|
|
|
|
||||||||
