Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Pressure:
-
Hydraulic
-
Structure:
-
Tube
-
Weight:
-
10.2
-
Dimension(L*W*H):
-
20*24*9
-
Maximum pressure:
-
25 Mpa
-
Maximum Flow Rate:
-
100 L/min
-
Name:
-
RD5200 Moblock control valve
-
Locating system:
-
Spring return,detent Control
-
Port size:
-
G3/4, G1/2
-
Flow rate:
-
100L/min
-
Max Pressure:
-
25 Mpa
-
Actuating method:
-
lever-operated
-
Operating pressure:
-
3,000 psi
-
Control Way:
-
Manual & pneumatic & electric control
-
Widely Use:
-
Construction machinery hydraulic system
-
Feature:
-
adopts parallel or oil circuit
Quick Details
-
Warranty:
-
1 Year
-
Valve type:
-
Directional Control Valve
-
Brand Name:
-
Hy-Waloil
-
Place of Origin:
-
Jiangsu, China
-
Pressure:
-
Hydraulic
-
Structure:
-
Tube
-
Weight:
-
10.2
-
Dimension(L*W*H):
-
20*24*9
-
Maximum pressure:
-
25 Mpa
-
Maximum Flow Rate:
-
100 L/min
-
Name:
-
RD5200 Moblock control valve
-
Locating system:
-
Spring return,detent Control
-
Port size:
-
G3/4, G1/2
-
Flow rate:
-
100L/min
-
Max Pressure:
-
25 Mpa
-
Actuating method:
-
lever-operated
-
Operating pressure:
-
3,000 psi
-
Control Way:
-
Manual & pneumatic & electric control
-
Widely Use:
-
Construction machinery hydraulic system
-
Feature:
-
adopts parallel or oil circuit
Product Overview

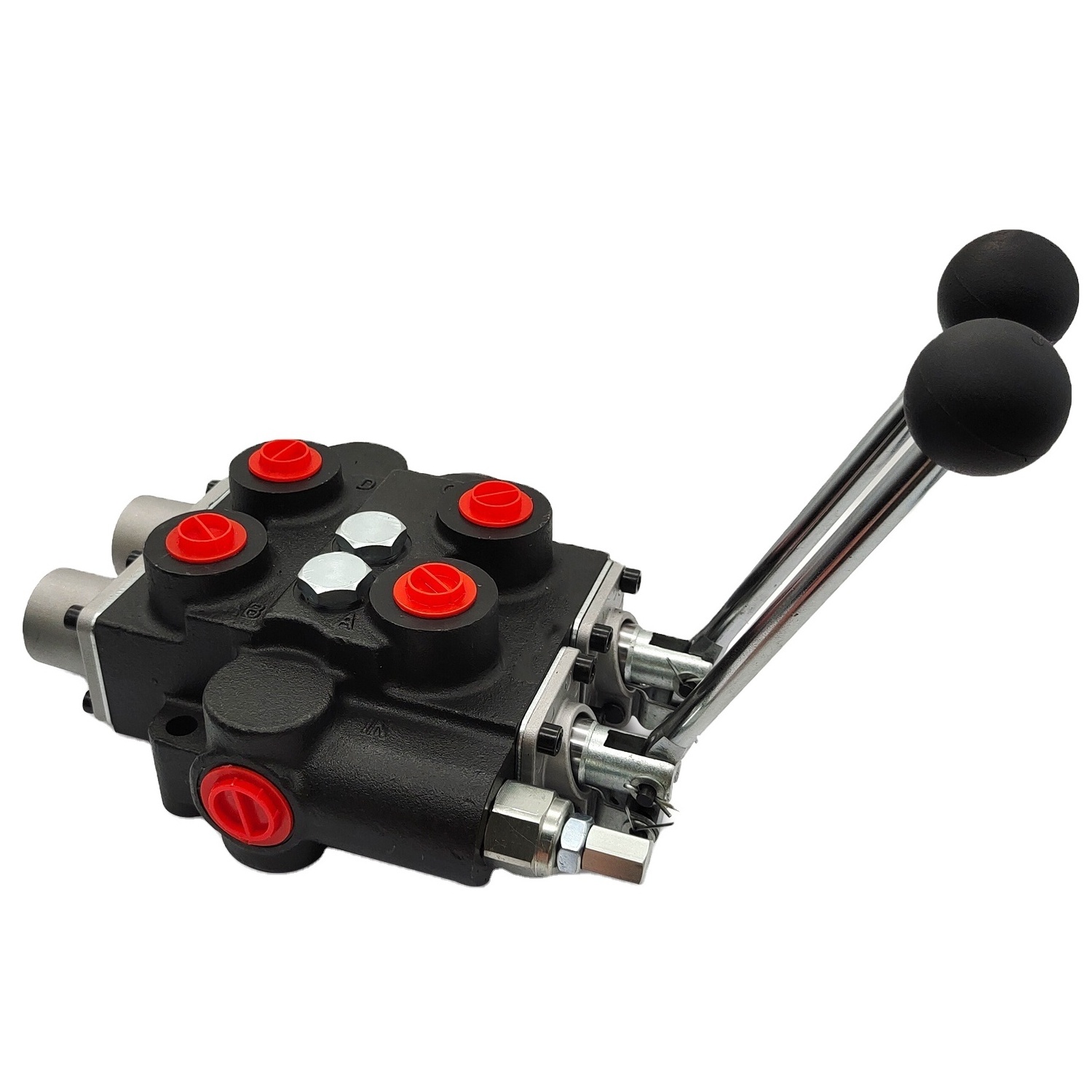

RD5200Series Monoblock Directional Control Valve
Economical monoblock construction of high tensile strength gray cast iron.
Load check on each spool
Hard Plated Spools Optional 4 Position Float and Joystick Handle Differential poppet style relief,
adjustable from 1500 to 3000 psi (also available in low pressure version adjustable from 500 to 1500 psi)
Power beyond and closed center capability Reversible
Handle Solenoid Actuated Option Available Optional
Handle Solenoid Actuated Option Available Optional
4 Position Float and Joystick Handle Ideal for loader application.
RD5200 P
arameter
1st spool double-acting with float, 2nd spool double-acting, spring centered.
3/4" NPT in-out ports, 1/2" work ports.
Technical Specs
* 3/4 in NPT Inlet/ outlet port size
*
3,000 psi Max pressure
*
4-Way/3-Position valve
*
1/2 in NPT working port size
Feature
* S
tandard open center directional control valves
*
Extra strong castings rated to 3000 PSI,
*
Hard chromed spools, load checks, reversible handles
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Model No
|
RD5200
|
|
2
|
Adjustable PSI Range
|
1500-3000
|
|
3
|
Vics.rang
|
10~400 mm2/S
|
|
4
|
Product size
|
20*24*9 cm
|
|
5
|
NW/ GW
|
10.2 / 13kg
|
|
6
|
Valve construction
|
monoblock construction, 1-4 levers, we also can make more levers as your requirement.
|
|
7
|
Advantage
|
100% QC testing, R&D capacity
|
|
8
|
|
The valve is widely used in forklift,sanitation vehicles,small loaders and other construction machinery hydraulic system
|
PRODUCT CONFIGURATION
Forklift
Sanitation vehicles
S
mall loaders
SIMILAR PRODUCTS
|
Item
|
P120 Series
|
DCV80 Series
|
P80 Series
|
P40 Series
|
|||
|
Working Section
|
1-4 Spools
|
1-5 Spools
|
1-6 Spools
|
1-7 Spools
|
|||
|
Flow Rate
|
160 L/min
|
80-100 L/min
|
80 L/min
|
40 L/min
|
|||
|
Spring Side Options
|
T(Spring return), W(Detent control)
|
|
|
|
|||
|
Spools Function
|
O, P, Y, M
|
O, P, Y, A
|
O, P, Y, A
|
O, P, Y, M
|
|||
|
Pressure
|
160-315 bar
|
|
|
|
|||
|
Nominal Diameter
|
G3/4, G1, M27*2
|
G1/2, G3/4, M22*1.5
|
G1/2, G3/4
|
G1/2, G3/4
|
|||
|
Optional Control
|
Manual, Penumatic, Electric and penumatic control, hydraulic and electric control
|
|
|
|
|||
