Quick Details
-
BCD Curve:
-
C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Chtai
-
Model Number:
-
F7-63 TYPE AC RCCB
-
Rated Frequency (Hz):
-
50/60HZ
-
Number of Pole:
-
1
-
Protection:
-
Other, earth leakage protection
-
Poles Number:
-
2P 4P
-
Material:
-
PA66
-
Electrical Life(Time):
-
6000 Times
-
Mechanical Life:
-
6000 Times
-
Working Temperature:
-
-5℃ to 40℃
-
Protection degree:
-
IP20
-
Standard:
-
IEC60898/GB10963.1
-
Certificate:
-
CCC CE
-
OEM ODM:
-
avaiable
Quick Details
-
Breaking Capacity:
-
10KA
-
Rated Voltage:
-
230/400V
-
Rated Current:
-
16-63A
-
BCD Curve:
-
C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Chtai
-
Model Number:
-
F7-63 TYPE AC RCCB
-
Rated Frequency (Hz):
-
50/60HZ
-
Number of Pole:
-
1
-
Protection:
-
Other, earth leakage protection
-
Poles Number:
-
2P 4P
-
Material:
-
PA66
-
Electrical Life(Time):
-
6000 Times
-
Mechanical Life:
-
6000 Times
-
Working Temperature:
-
-5℃ to 40℃
-
Protection degree:
-
IP20
-
Standard:
-
IEC60898/GB10963.1
-
Certificate:
-
CCC CE
-
OEM ODM:
-
avaiable
Products Description
Range of application
F7 S
eries

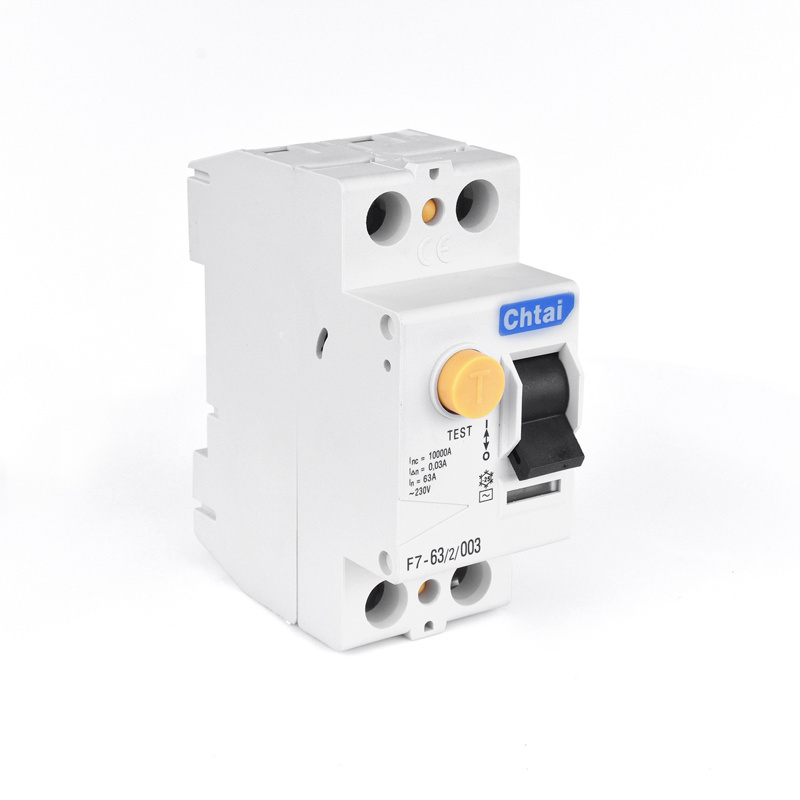

high-break Residual Current Circuit Breaker with advanced structure, reliable
performance, quick tripping, guide rail installation, shell and components with impact resistance
and high flame retardant material composition.Long service life. Suitable to the circuit of AC50/60Hz,rated voltage 230V for 2 poles and 400V for 4 poles, and rated current up to 63A.It can automatically and immediately cut off power supply once someone suffers from electric shock or leakage current above specified value.It can effectively protect personal security and avoid the
damage to equipments.
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents.
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents,
Tripping is ensured for slowly increasing sinusoidal AC residual currents.
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents,
whether applied suddenly or increasing slowly.
The product conforms to IEC62423 ,IEC61008-1 and other standards.
The product conforms to IEC62423 ,IEC61008-1 and other standards.
Product Paramenters
|
MODEL
|
RCCB/RCD
|
|
Number
|
L7-63
|
|
Rated current(In)
|
16A,20A,25A,32A,40A,50A,63A
|
|
Poles
|
2P/4P
|
|
Breaking Capacity
|
10KA
|
|
Rated frequency
|
50/60Hz
|
|
Earth-Leakage Protection Class
|
A/AC TYPE
|
|
Rated Residual Operating Current (mA)
|
30mA,100mA,300mA
|
|
Electrical Life
|
6000
|
|
Mechanical Life
|
6000
|
|
Working Temperature
|
-5℃ to 40℃
|
|
protection
|
Earth leakage protection
|
|
Protection degree
|
IP20
|
|
Standard
|
IEC/EN 61008-1 IEC62423
|
|
Certificate
|
CCC CE
|
|
OEM ODM
|
avaiable
|
