Quick Details
-
Brand Name:
-
DSPPA
-
Model Number:
-
MP7300
-
Five operating modes:
-
FREE MODE, LIMIT (1-9), FIFO (1-9)
-
Response:
-
40-18000 Hz
-
Built-in amplifier:
-
Yes
-
Voting:
-
Support
-
OEM/ODM:
-
Support
-
Video tracking:
-
Support
-
Supply power to mic:
-
DC24V
Quick Details
-
Type:
-
Video Conference System, Digital Conference System
-
Function:
-
Voting
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DSPPA
-
Model Number:
-
MP7300
-
Five operating modes:
-
FREE MODE, LIMIT (1-9), FIFO (1-9)
-
Response:
-
40-18000 Hz
-
Built-in amplifier:
-
Yes
-
Voting:
-
Support
-
OEM/ODM:
-
Support
-
Video tracking:
-
Support
-
Supply power to mic:
-
DC24V
Details Images
This conference system uses digital technologies according to the European Community's IEC914 and ISO standards.

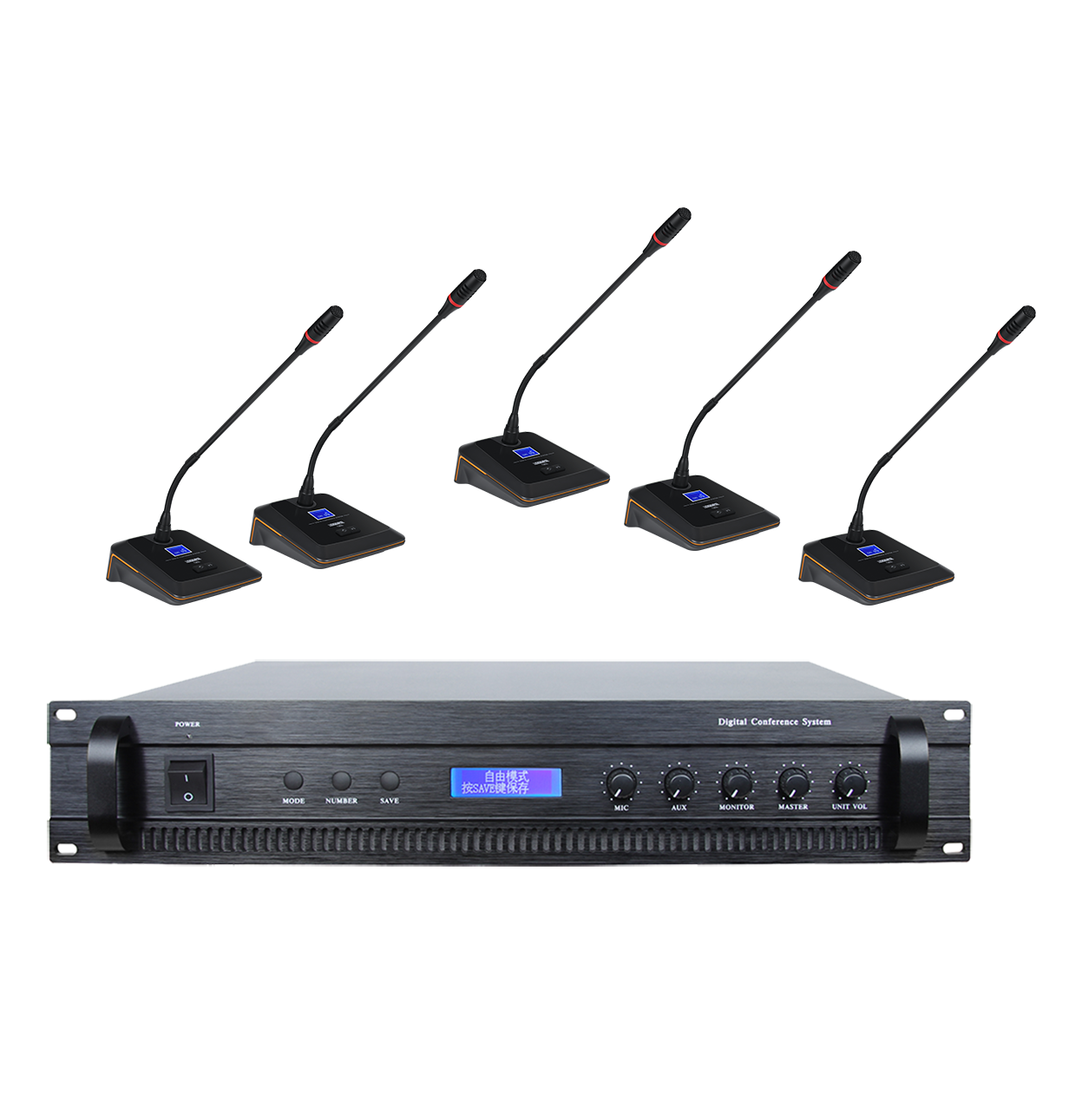

It is composed of a controller –MP7300 – and two microphone units – Delegate and Chairman – that feature high sensitivity, a wide frequency response, an internal loudspeaker and a cardioid electret microphone with a lighted ring for the visual identification of the microphone in use. The system is pre-cabled to ensure fast and easy installation.
The device may include up to 64 microphone units, daisy-chained on four independent lines (or a maximum of 30 microphone units on each line).
The system involves the use of several expansion units – MP-5600E. Every expansion unit can support up to 60 microphone units divided on six lines (never use more than 30 microphone units on each line).
Adding four expansion units, the system can control up to 254 microphone units.
Features
●
It directly powers and controls 64 microphone units.
● Chairman microphone has priority function.
● Five operating modes: FREE MODE, LIMIT (1-9), FIFO (1-9)
● One microphone input (MIC) and one line input (LINE) for external units.
● TAPE output for recordings and line output (LINE) for amplification (balanced and unbalanced).
● It allows insertion of an audio processor to the chain.
● Microphone sensitivity level control.
● Loudspeaker level control for the unit monitors
● Built-in video and voting processor to support video camera tracking and voting function
● Chairman microphone has priority function.
● Five operating modes: FREE MODE, LIMIT (1-9), FIFO (1-9)
● One microphone input (MIC) and one line input (LINE) for external units.
● TAPE output for recordings and line output (LINE) for amplification (balanced and unbalanced).
● It allows insertion of an audio processor to the chain.
● Microphone sensitivity level control.
● Loudspeaker level control for the unit monitors
● Built-in video and voting processor to support video camera tracking and voting function
Product Paramenters
|
Model Item
|
MP7300
|
|
Characteristics
|
Supply power to microphones DC24V
Built-in amplifier Control the active microphone number Allows the connection of up to 64 microphones (expandable up to 254 units) Built-in monitor speaker Built-in video & voting processor to support camera track and voting function |
|
Response
|
40-18000 Hz
|
|
Controls
|
Dynamic Mic volume
Aux volume Monitor volume Mic inner speaker volume Master output volume Active Mic limit selector RS232 PC control RS232/RS422 camera data control |
|
Inputs
|
4 x group microphone input line DIN-8
1 x Mic (TRS Jack 6.3 mm) 1 x Aux (RCA) 8 x Video in (RCA) |
|
Outputs
|
1 x Master (male XLR3)
1 x Line out (RCA) 1 x Rec (RCA) 2 x Video out (RCA) |
|
Power supply
|
230 V AC 50/60 Hz, 350W
|
|
Dimension
|
488 x 84 x 360 mm, 2 U rack 19”
|
|
G.W
|
17kg
|
|
Accessories
|
1 x 13 m DIN-8 main cable
1 x 1.8 m power cable 1 x 2 m XLR M-F cable 2 x 1.65 m RCA-TRS cable 2 x fuse 1 x USB dongle key 1 x software CD 1 x USB-RS232 converting cable 1 x manual |
