Quick Details
-
Product name::
-
Waterproof Electric magnetic Locks
-
Brand Name::
-
SZEPIN
-
Warranty::
-
2 years
-
Dimensions::
-
222Lx47.5Wx25H(mm)
-
Holding Force::
-
350kg(800Lbs)
-
Input Voltage::
-
12 or 24VDC
-
Current::
-
12V/500mA or 24V/250mA
-
Suitable::
-
Wooden door , Glass door ,Metal door , Fireproof door
-
Weight::
-
2.8kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZEPIN
-
Place of Origin::
-
China
-
Product name::
-
Waterproof Electric magnetic Locks
-
Brand Name::
-
SZEPIN
-
Warranty::
-
2 years
-
Dimensions::
-
222Lx47.5Wx25H(mm)
-
Holding Force::
-
350kg(800Lbs)
-
Input Voltage::
-
12 or 24VDC
-
Current::
-
12V/500mA or 24V/250mA
-
Suitable::
-
Wooden door , Glass door ,Metal door , Fireproof door
-
Weight::
-
2.8kg

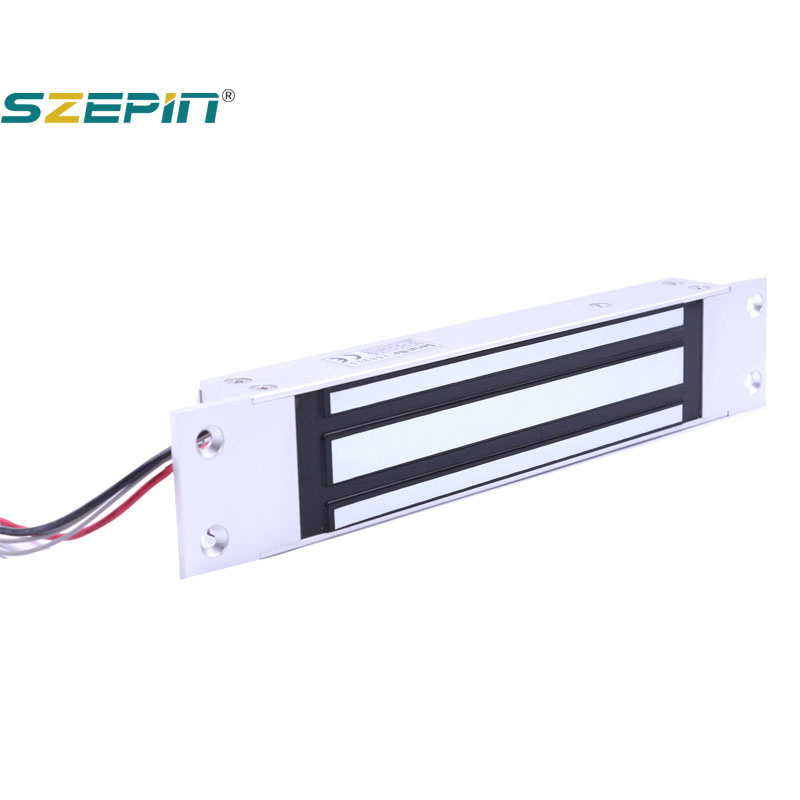

800 Lbs holding force embed Installation smart access control electric magnetic lock for swing gate
Features:
Made of high strength aluminium alloy material with hard anodized processing.Use magnetic power to lock the door, 350kg 800lbs holding force.
Secure NC mode: unlocked when power off, locked when power on.Suitable for wooden door, glass door, metal door, fire-proof door.
Installation type:embedded types of a variety of different ways to install a full range of door locks with signal output
DC 12V/24V, Can be opened by push button, remote control, etc. (Not included)
Installation Instructions:
Warm Tip: Armature Plate installed too tight will lead to result the lock weak foce, recommend loosen the Armature Plate screws a little in this case.
electromagnetic lock/EM lock Application for:
Commercial Buildings
Technology Centers
Warehouses
Industrial Facilities
Technology Centers
Convention Centers
Long Term Living Facilities
| Model Name | EP-M350F |
| Product Name | EM Lock |
| Dimensions | 222Lx47.5Wx25H(mm) |
| Holding Force | 350kg(800Lbs) |
| Input Voltage | 12 or 24VDC |
| Current | 450/240mA |
| Suitable | Wooden door , Glass door ,Metal door , Fireproof door |
| Surface Temp | ≤+20℃ |
| Operating Temp | -10~+55℃(14-131F) |
| Humidity | 0~90%(non-condensing) |
| Cover Finish | Anodized aluminum/Stainless Steel |
| Weight | 2.8KGS |
| certification | certified frustration-free |
