- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
BD
-
Model Number:
-
DYE-2000B
-
Product name:
-
concrete cube testing machine
-
Maximum test force:
-
2000KN
-
Sensor type:
-
Oil pressure
-
Space adjustment method:
-
Manual screw adjustment
-
Test accuracy:
-
Level 1
-
Upper platen size (mm):
-
240x285
-
Lower platen size (mm):
-
240x285
-
Press space:
-
360mm
-
Motor powder (KW):
-
0.75
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
BD
-
Model Number:
-
DYE-2000B
-
Product name:
-
concrete cube testing machine
-
Maximum test force:
-
2000KN
-
Sensor type:
-
Oil pressure
-
Space adjustment method:
-
Manual screw adjustment
-
Test accuracy:
-
Level 1
-
Upper platen size (mm):
-
240x285
-
Lower platen size (mm):
-
240x285
-
Press space:
-
360mm
-
Motor powder (KW):
-
0.75
Product Description
Produict Details

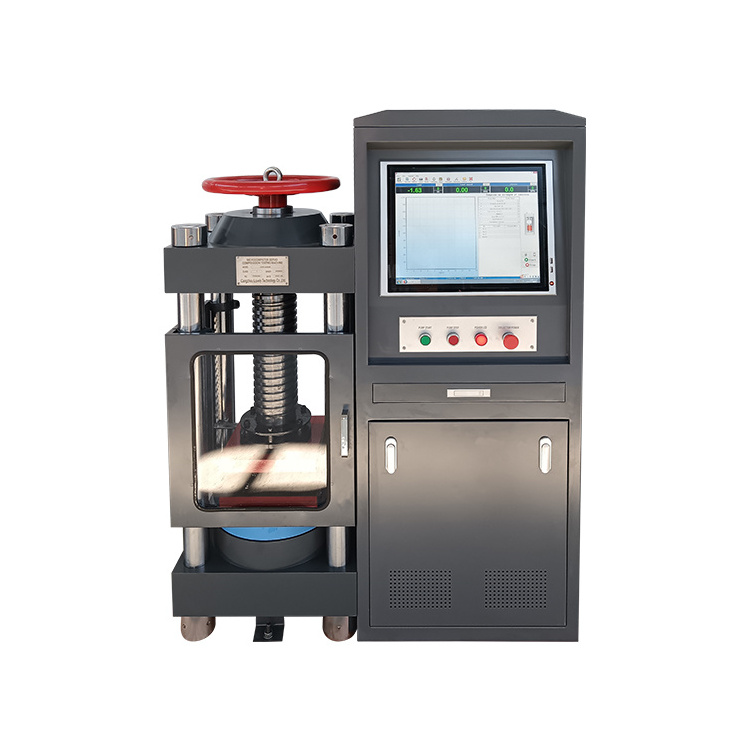

The microcomputer controlled electro-hydraulic servo pressure testing machine adopts the integrated design of the main body and the control frame. It has the characteristics of simple and convenient operation, stable and reliable work, stable afterburner,and hightest accuracy. Suitable for compression test of cement, concrete and other materials. It is an ideal testing and testing instrument for industrial and mining enterprises, commodity inspection and arbitration, scientific research units, colleges and universities, engineering quality supervision stations and other departments.
|
Maximum test force
|
2000kN
|
|
level
|
Level 1
|
|
Relative error of test force indication
|
Within ±1%
|
|
Test force measuring range
|
1%-100%FS
(Full scale without classification) |
|
Distortion Resolution/Resolution
|
1%-100%F·S;
|
|
Test force loading rate range
|
1%-100%
|
|
Force Rate Control Accuracy
|
8%
|
|
overload protection
|
8%
|
|
host structure
|
four-post frame
|
|
compressed space
|
360mm
|
|
Piston stroke
|
60mm
|
|
Test force loading speed
|
0.02%-2%FS/s
|
|
Upper platen size
|
240x285mm
|
|
Lower platen size
|
240x285mm
|
Specification
