Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Unionwell
-
Model Number:
-
GT02
-
Initial Contact Resistance:
-
200mΩ Max
-
Insulation Resistance:
-
100mΩ Min
-
Voltage Resistance:
-
AC 100V(50-60HZ) 1 Minute
-
Operating Temperature Range:
-
-40℃-+80℃
-
Electrical Life:
-
Over 80,000,000cycles
-
Mechanical Life:
-
Over 80,000,000cycles
-
Certification:
-
RoHS REACH
Quick Details
-
Protection Level:
-
IP00
-
Max. Current:
-
10mA
-
Max. Voltage:
-
12 VDC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Unionwell
-
Model Number:
-
GT02
-
Initial Contact Resistance:
-
200mΩ Max
-
Insulation Resistance:
-
100mΩ Min
-
Voltage Resistance:
-
AC 100V(50-60HZ) 1 Minute
-
Operating Temperature Range:
-
-40℃-+80℃
-
Electrical Life:
-
Over 80,000,000cycles
-
Mechanical Life:
-
Over 80,000,000cycles
-
Certification:
-
RoHS REACH

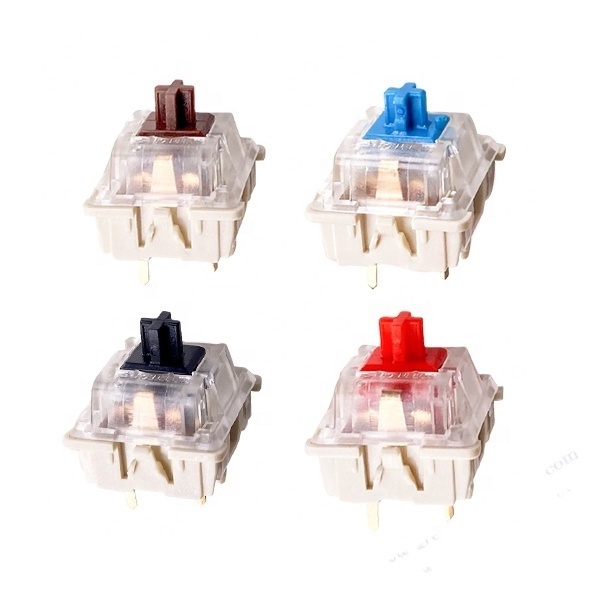

Features
- Desktop profile,0.60 inch(15.2mm)from PCB(no keycap)
- Choice of feel: linear,soft tactile,click tactile
- PCB or frame mount
- Long life 80 million operations
- LED,diode or jumper option
- 12V maximum AC/DC
- Current Rating: 10mA
- Insulation Resistance:<100M Ω at 100V DC
Product Details
Parameters
|
Electrical Characteristics |
Rating |
0.1A 12VDC |
|
Contact Resistance |
200m Ω Max |
|
|
Insulation Resistance |
100m Ω Min |
|
|
Voltage Proof |
AC 500V(50-60 Hz) 1Minute |
|
|
Electrical Life |
≥ 80,00 0 ,000cycles |
|
|
Mechanical/Reliability Characteristics |
Operating Force |
See Detail Spec |
|
Mechanical Life |
≥ 80,000,000cycles |
|
|
Operating Temperature Range |
-40 °C ~ +80 °C |
|
|
Storage Humidity |
85%RH Max |
