Quick Details
-
Delivery:
-
Air, sea,express
-
Application:
-
mini Excavator/Agriculture machines
-
Product Name:
-

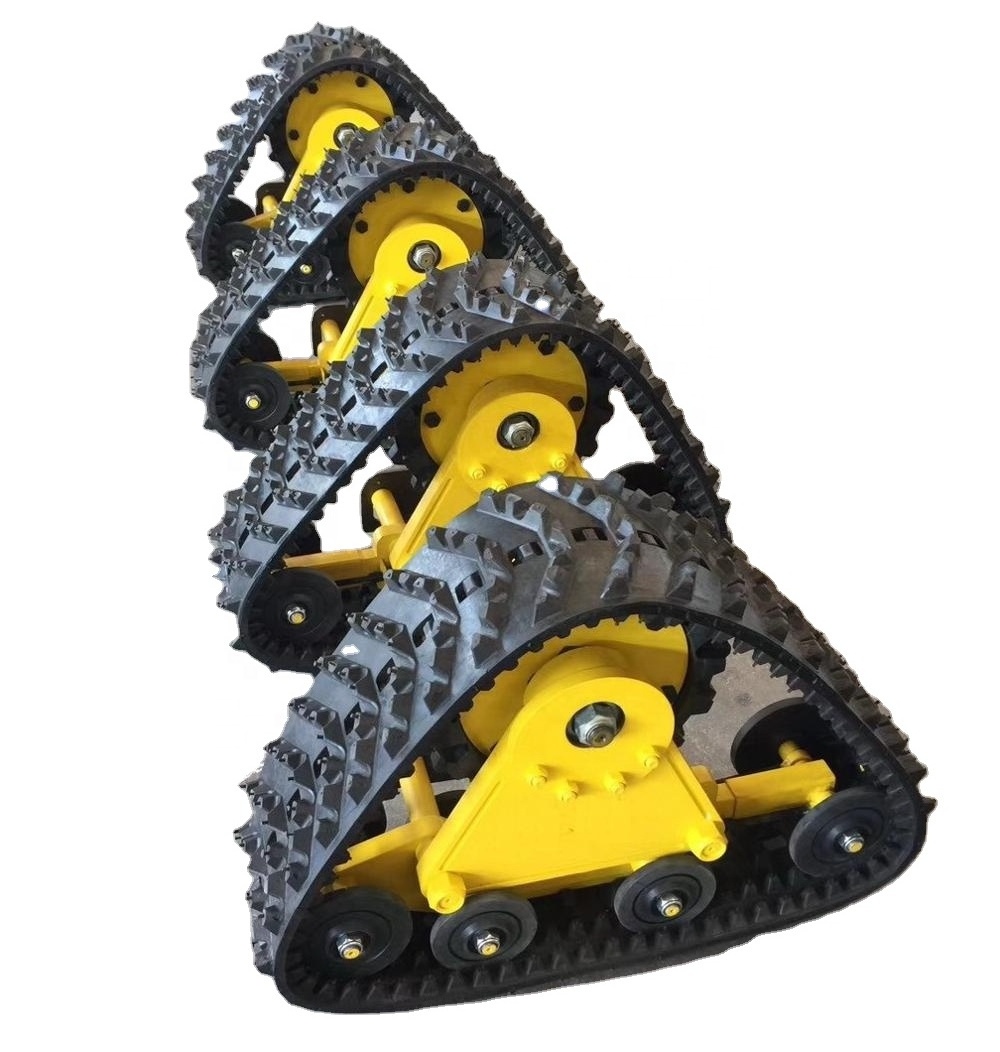

rubber track conversion system undercarriage
-
Material:
-
rubber&steel frame
-
Key words:
-
rubber track rubber track chassis rubber track undercarriage
-
Packing:
-
plywood pallet
-
PAYMENT:
-
TT Western Union Paypal
Quick Details
-
Place of Origin:
-
Shanghai, China, shanghai, China (Mainland)
-
Brand Name:
-
kcm
-
Color:
-
any
-
Delivery:
-
Air, sea,express
-
Application:
-
mini Excavator/Agriculture machines
-
Product Name:
-
rubber track conversion system undercarriage
-
Material:
-
rubber&steel frame
-
Key words:
-
rubber track rubber track chassis rubber track undercarriage
-
Packing:
-
plywood pallet
-
PAYMENT:
-
TT Western Union Paypal
Shanghai Kymoon Rubber Co., Ltd is a professional international trading company, which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine and related spare parts. Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road paver and related spare parts. By virtue of our superior quality and well-deserved reputation, we won praises at home and abroad. We promised to provide.
The feature of rubber tracks:
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine’s lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm , a major reason for its use on the wet and soft terrain .
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.
Small size rubber track undercarriage chassis platform as below,more size customized please kindly contact us: | |||||||
Model | Length | Width | Height | Rubber Track Width | Weight (kgs) | Load bearing Weight(kgs) | Remark |
KCM-40 | 540mm | 545mm | 150mm | 40mm | 26.5kg | 50 | All the parametesr for reference, it needs to be confirmed before ordering! |
KCM-50 | 810mm | 377mm | 165mm | DG50mm | 50kg | 100 | |
KCM-76 | 940mm | 550mm | 210mm | 60mm | 24.5kg | 150 | |
KCM-100 | 700mm | 520mm | 240mm | A100mm | 95kg | 100 | |
KCM-70 | 590mm | 530mm | 250mm | 70mm | 17.85kg | 100 | |
KCM-70 | 800mm | 570mm | 300mm | 70mm | 44kg | 150 | |
KCM-70 | 1010mm | 540mm | 410mm | 70mm | 106kg | 150 | |
KCM-100 | 640mm | 520mm | 260mm | A100mm | 46kg | 75 | |
KCM-100Z | 890mm | 600mm | 280mm | 100mm | 70kg | 200 | |
KCM-JZ100 | 980mm | 780mm | 330mm | 100mm | 100kg | 300 | |
KCM-150 | 970mm | 700-900mm | 290mm | 150mm | 100kg | 300 | |
KCM-JZ102 | 982mm | 782mm | 332mm | 102mm | 122kg | 260 | |
KCM-150D | 1250mm | 700-900mm | 33mm | 150mm | 100kg | 300 | |
KCM-ZD | 800mm | 600mm | 270mm | 100mm | 150kg | 200 | |
KCM-GS150 | 1000mm | 800mm | 390mm | 150mm | 150kg | 200 | |
KCM-150XT | 1000mm | 800mm | 450mm | 180mm | 100kg | 300 | |
KCM-180ZD | 1800mm | 1100mm | 450mm | 180mm | 190kg | 500 |
