Quick Details
-
Brand Name:
-
Bluesun
-
Model Number:
-
BSM48106H
-
Battery Size:
-
48106
-
Place of Origin:
-
Anhui, China
-
Weight:
-
25+48.5*N
-
The charging ratio:
-
1c
-
The discharge rate:
-
1c
-
Electric Energy:
-
20000 Wh
-
Cycle life:
-
6000 Times
-
Dimension:
-
600*400*200mm (3U)
-
Battery Type:
-
Lifepo4/lithium Battery
-
Warranty:
-
10 Years
-
BMS:
-
Built-in
-
Voltage:
-
48V/51.2V
-
Capacity:
-
100Ah 200Ah
-
Battery cell:
-
3.2V 100Ah LifePO4 Cell
-
Hybrid Inverter Compatible:
-
Sofarsolar
-
Shipping:
-
Sea
Quick Details
-
Storage Type:
-
/
-
Anode Material:
-
LFP
-
Application:
-
Home Appliances
-
Brand Name:
-
Bluesun
-
Model Number:
-
BSM48106H
-
Battery Size:
-
48106
-
Place of Origin:
-
Anhui, China
-
Weight:
-
25+48.5*N
-
The charging ratio:
-
1c
-
The discharge rate:
-
1c
-
Electric Energy:
-
20000 Wh
-
Cycle life:
-
6000 Times
-
Dimension:
-
600*400*200mm (3U)
-
Battery Type:
-
Lifepo4/lithium Battery
-
Warranty:
-
10 Years
-
BMS:
-
Built-in
-
Voltage:
-
48V/51.2V
-
Capacity:
-
100Ah 200Ah
-
Battery cell:
-
3.2V 100Ah LifePO4 Cell
-
Hybrid Inverter Compatible:
-
Sofarsolar
-
Shipping:
-
Sea
Product Description
Product Paramenters
|

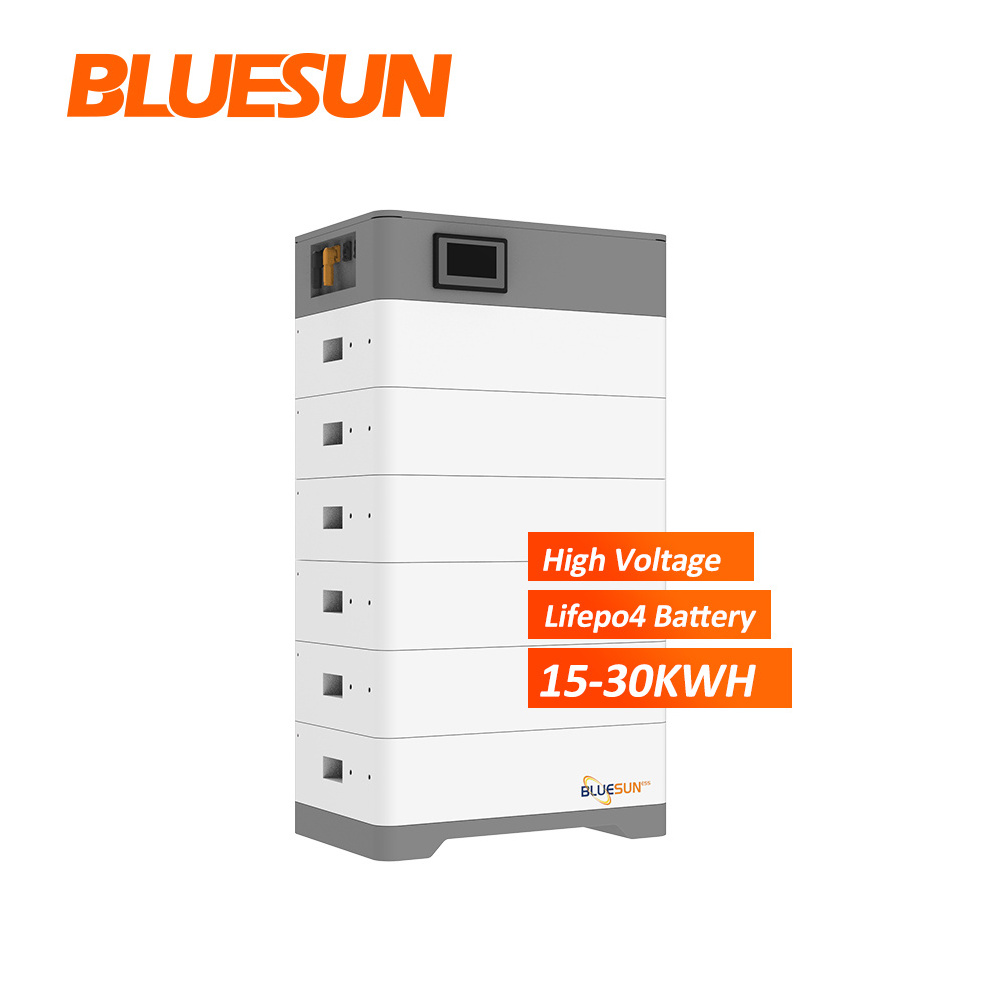

MODEL
|
BST-15.0HV
|
BST-20.0HV
|
BST-25.0HV
|
BST-30.0HV
|
||||
|
Battery Type
|
LiFeP04(LFP)
|
|
|
|
||||
|
Nominal Voltage(V)
|
153.6V
|
204.8V
|
256.0V
|
307.2V
|
||||
|
Nominal Capacity(KWH)
|
16.28KWH
|
21.7KWH
|
27.13KWH
|
32.56KWH
|
||||
|
Usable Capacity (KWH)
|
14.65KWH
|
19.53KWH
|
24.41 KWH
|
29.30KWH
|
||||
|
Design Life
|
10+Years （25 ℃/77F)
|
|
|
|
||||
|
Physical
|
|
|
|
|
||||
|
Dimension(mm)
|
600*400*683
|
600*400*832
|
600*400*981
|
600*400*1130
|
||||
|
Weight (kg)
|
170
|
215
|
260
|
305
|
||||
|
ELECTRICAL
|
|
|
|
|
||||
|
Cycle Life
|
>6000. 25°C
|
>6000. 25°C
|
|
|
||||
|
Discharge Voltage(V)
|
120-144
|
160-192
|
200-240
|
240-288
|
||||
|
Charge Voltage(V)
|
168-175.2
|
224-233.6
|
280-292
|
336-350.4
|
||||
|
Charge/Discharge Current(A)
|
50A (Recommended) 100A(Max)
|
|
|
|
||||
|
Internal Resistance
|
≤30mΩ
|
|
|
|
||||
|
BMS
|
|
|
|
|
||||
|
Power Consumption
|
<2W (Work) < 100mW(Sleep)
|
|
|
|
||||
|
Monitoring Parameters
|
System voltage, current, cell voltage,cell temperature, module temperature
|
|
|
|
||||
|
SOC
|
Intelligent algorithm
|
|
|
|
||||
|
Communication
|
CAN/RS-485/RS-232
|
|
|
|
||||
|
OPERATION
|
|
|
|
|
||||
|
Operating Temperature Range
|
-10℃-50℃
|
|
|
|
||||
|
Transport or Storage Temperate Range
|
-20℃-45℃
|
|
|
|
||||
|
Humidity
|
15% - 85% (No Condensing)
|
|
|
|
||||
|
WARRANTY
|
|
|
|
|
||||
|
Product Warranty
|
5 Years
|
|
|
|
||||
|
Performance Warranty
|
10 Years
|
|
|
|
||||
|
|
|
|
|
|||||
Matching inverter
High compatibility BMS, seamless communication with energy storage inverter
