Quick Details
-
Surface Roughness(μm):
-
0 μm
-
Table Size(mm):
-
500X1000
-
Year:
-
2020
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WELLON
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
4000X2270X2390
-
Weight (KG):
-
5500
-
Power (kW):
-
7.5
-
Name:
-

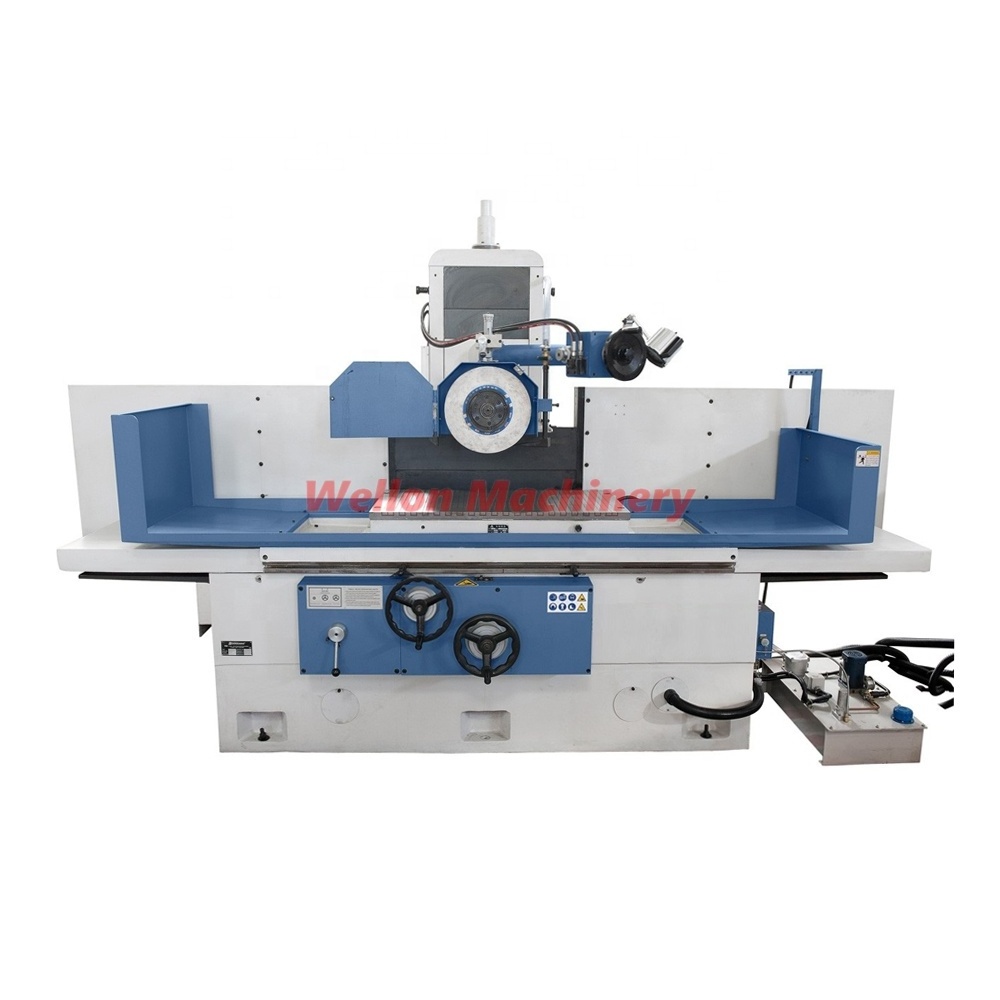

Surface Grinder
-
Application:
-
Grind Rail Surface
-
Function:
-
PET Crusher
-
Keywords:
-
Belt Sander
-
Machine Type:
-
Suface Grinding Machine
-
Product name:
-
Pneumatic Valve Grinding Machine
-
Precision:
-
Precision
-
Color:
-
Customized Optional
-
Feature:
-
Simple Operation
-
Usage:
-
Surface Polishing
-
Certification:
-
CE
Quick Details
-
Grinding Length(mm):
-
560
-
Table Travel (X) (mm):
-
500
-
Table Travel (Y) (mm):
-
1000
-
Surface Roughness(μm):
-
0 μm
-
Table Size(mm):
-
500X1000
-
Year:
-
2020
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WELLON
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
4000X2270X2390
-
Weight (KG):
-
5500
-
Power (kW):
-
7.5
-
Name:
-
Surface Grinder
-
Application:
-
Grind Rail Surface
-
Function:
-
PET Crusher
-
Keywords:
-
Belt Sander
-
Machine Type:
-
Suface Grinding Machine
-
Product name:
-
Pneumatic Valve Grinding Machine
-
Precision:
-
Precision
-
Color:
-
Customized Optional
-
Feature:
-
Simple Operation
-
Usage:
-
Surface Polishing
-
Certification:
-
CE
Features :
Designed for continuous operation at maximum speed, very quiet operation, maximum accuracy and minimal heat accumulation ensure optimum machining results Grinding spindle runs in maintenance-free preloaded precision angular ball bearings
Automatic transverse and longitudinal feed
Rapid feed for setup to desired work height(HFS VC)
Adjustable roughing, finishing, and spark-out strokes hydraulic longitudinal table movement on Y axis(HFS VC)
Double table V-guide in transverse table, V-guide and flat guides in longitudinal table
Table guide ways are hardened, ground, and PTFE
counter
laminated-ensuring maximum wear resistance
High table load capacity for heavy parts
External hydraulic unit ensures high temperature stability
Automatic central lubrication
AH:Wheel head Manual up and down
AHR:Wheel head Motorized up and down
AHR:Wheel head servo motor up and down
Technical Parameter :
|
MODEL |
Unit |
SG 5 0 10 0AHR / AHD |
|
|
Table size(W x L) |
mm |
500 x 1000 |
|
|
Max longitudinal travel |
mm |
1000 |
|
|
Max cross travel |
mm |
500 |
|
|
Max distance from spindle to table |
mm |
60 0 |
|
|
Electro magnetic chuck size |
mm |
5 00x 10 00 |
|
|
Speed of table longitudinal movement |
m/min |
5-25 |
|
|
Wheelhead cross movement |
Auto feed |
mm/min |
0. 5 - 20 |
|
Rapid speed |
mm/min |
1250 |
|
|
Feed of handwheel |
Mm/div |
0.02 |
|
|
Wheelhead vertical movement |
Auto feed |
mm |
0.005 - 0.0 4 (AHD ) |
|
Rapid speed |
Mm/min |
230 |
|
|
Feed by handwheel |
Mm/div |
0.005 |
|
|
Grinding wheel |
Speed |
rpm |
1450(50Hz) 17 4 0(60Hz) |
|
Size |
mm |
35 5 x (20-50) x127 |
|
|
Spindle motor |
kw |
7.5 |
|
|
Max loading capacity of table |
Kg |
7 00 |
|
|
Gross weight |
kg |
55 00 |
|
|
Package dimensions(L x W x H) |
mm |
400 0x2270x2 39 0 |
|
Standard accessories :
Wheel flange
Balancing arbor
Wheel exactor
Coolant tank
Working lamp
Tools box and tools
Wheel dresser stand
Standard electro magnetic chuck
Leveling wedge and bolt
Built in electro magnetic chuck controller
PLC auto grinding controller only for AHD models
Optional accessories :
Dust collect
Balance stand
Wheel flange
Coolant tank with magnetic separator
Coolant tank with paper filter
Coolant with magnetic separator and paper filter
Parallel wheel dresser screw rod type
