YQLB20 Automatic Mobile Asphalt Mixing Plant Portable Asphalt Batch Plant
YQLB20 Automatic Mobile Asphalt Mixing Plant Portable Asphalt Batch Plant
YQLB20 Automatic Mobile Asphalt Mixing Plant Portable Asphalt Batch Plant
YQLB20 Automatic Mobile Asphalt Mixing Plant Portable Asphalt Batch Plant
YQLB20 Automatic Mobile Asphalt Mixing Plant Portable Asphalt Batch Plant
YQLB20 Automatic Mobile Asphalt Mixing Plant Portable Asphalt Batch Plant
YQLB20 Automatic Mobile Asphalt Mixing Plant Portable Asphalt Batch Plant
YQLB20 Automatic Mobile Asphalt Mixing Plant Portable Asphalt Batch Plant

YQLB20 Automatic Mobile Asphalt Mixing Plant Portable Asphalt Batch Plant

FOB Reference Price: Get Latest Price
≥1 Sets
US $78000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
380V
Power:
25kw
Dimension(L*W*H):
2650*2370*2790mm
Weight:
12t
Warranty:
One year
Certification:
CE ISO9001
control system:
PLC
Burning material:
coal or oil
Colour:
Yelllow and Bule portable asphalt batch plant
Container:
3*40'HQ
Industry voltage:
As per clients' local demands

Quick Details

Place of Origin:
Fujian, China
Brand Name:
Heng Xing
Model Number:
YQLB20 portable asphalt batch plant
Voltage:
380V
Power:
25kw
Dimension(L*W*H):
2650*2370*2790mm
Weight:
12t
Warranty:
One year
Certification:
CE ISO9001
control system:
PLC
Burning material:
coal or oil
Colour:
Yelllow and Bule portable asphalt batch plant
Container:
3*40'HQ
Industry voltage:
As per clients' local demands

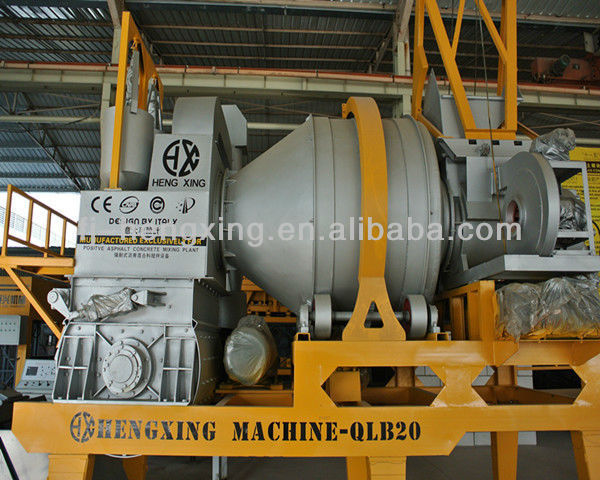

YQLB20  Mobile portable asphalt batch  plant  asphalt mixing plant is designed and manufactured with the advanced technology. This machine uses the structural style which the trailer domain drying cylinder and the mixer are united as one body. The quality of finished as asphalt concrete is quite good with steady performance. Conforms to the high-grade road asphalt concrete quality requirement. It is widely used in highway, municipal road construction and maintenance.

YQLB20  Mobile portable asphalt batch  plant asphalt mixing plant

Features:

  1. The portable asphalt batch  plant structural is simple compact and the transitions is flexible so it ensures to fix the machine easily.
  2. Using programmable logic controller (PLC) system. The operation and centralized control is simple with high automation and stabilization.
  3. It is widely adaptability. It is easy to set the drying time so the drying cyclinder can reach temperature standards to dry even the wet mineral aggregate and ensure the quality of asphalt concrete requirements.
  4. Using sensor control to ensure the weighting precision of oil and aggregates.
  5. Positive mixing enhanced mixing and blending of various materials. The asphalt concrete quality is good with stable performance.
  6. The burner adopted the auto-fuel technology and the latest pulverized coal jet technology it realizes the automatic ignition, complete combustion, thermal efficiency, good economic returns.
  7. Drying cylinder using frequency conversion start to reduce the impact on power.

YQLB20  Mobile portable asphalt batch  plant asphalt mixing plant

portable asphalt batch plant  Technical Parameter

Model

Production

Aggregate

Fuel consumption

Applicable scope

Coal

Kerosene

YQLB-20

18-20 t/h

1 T/bateh

10-15kg/t

5-7.5kg/t

YQLB-30

28-30 t/h

1.5 T/bateh

10-15kg/t

5-7.5kg/t

YQLB-40

38-40 t/h

2 T/bateh

10-15kg/t

5-7.5kg/t
