Quick Details
-
Model Number:
-
TYD-450B
-
Warranty:
-
one year
-
Certification:
-
ce
-
Output Voltage:
-
61-531v
-
rotor diameter:
-
1.5-4.5m
-
Model:
-

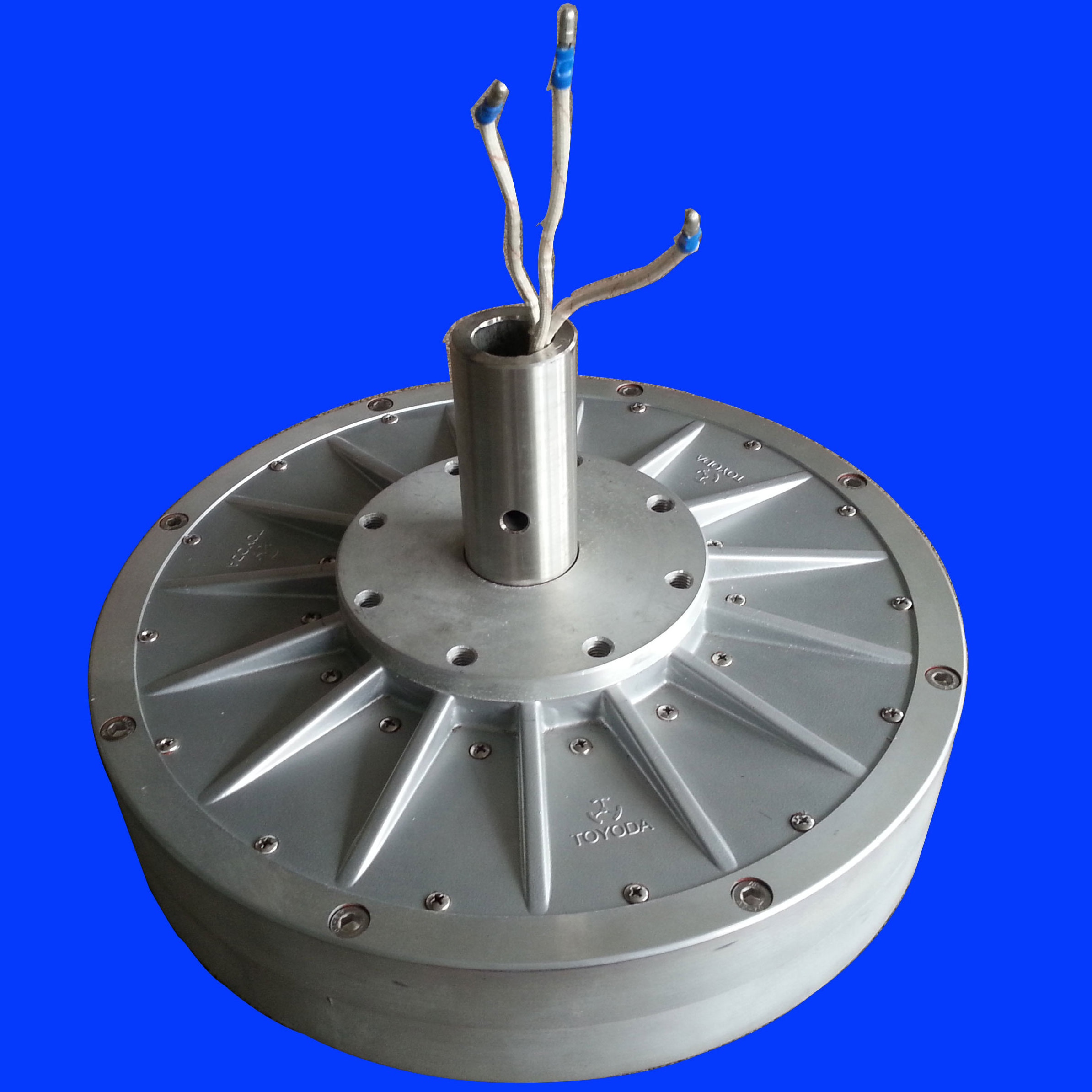

3000watt permanent magnet synchronous wind generator
-
Size:
-
450x328mm
-
Casing material:
-
Aluminium alloy
-
Weight:
-
48kg
-
Output:
-
Three phase current
Quick Details
-
Rated Power:
-
300w-10kw
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TOYODA
-
Model Number:
-
TYD-450B
-
Warranty:
-
one year
-
Certification:
-
ce
-
Output Voltage:
-
61-531v
-
rotor diameter:
-
1.5-4.5m
-
Model:
-
3000watt permanent magnet synchronous wind generator
-
Size:
-
450x328mm
-
Casing material:
-
Aluminium alloy
-
Weight:
-
48kg
-
Output:
-
Three phase current
Product Description
The advantages of our vertical wind generator are following:
1.outer rotor structure
2.core-less structure
3. low rpm generator
4.Bearing: SKF/NSK
5.casing material: Aluminium alloy
6. magnets material: NdFeB
7. output: three phase current
1.outer rotor structure
2.core-less structure
3. low rpm generator
4.Bearing: SKF/NSK
5.casing material: Aluminium alloy
6. magnets material: NdFeB
7. output: three phase current
Specification
|
Model
|
TYD250-300
|
TYD350-1000
|
TYD650-5000
|
TYD650-10000
|
|||
|
Rated power
|
300w
|
1kw
|
5kw
|
10kw
|
|||
|
Rated rotation speed
|
300
|
230
|
100
|
300
|
|||
|
Rated current A(DC)
|
5.1
|
6.5
|
14.1
|
19.6
|
|||
|
Rated voltage V(DC)
|
61
|
93.5
|
373
|
531.2
|
|||
|
Output
|
three phase current
|
three phase current
|
three phase current
|
three phase current
|
|||
|
Eff
|
0.75
|
0.75
|
0.8
|
0.83
|
|||
|
Dimension(mm)
|
250*180
|
350*210
|
613*350
|
613*350
|
|||
|
Weight(kg)
|
9.5kg
|
22kg
|
96kg
|
104kg
|
|||
|
Material
|
Aluminum alloy
|
|
|
|
|||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
