Quick Details
-
Brand Name:
-
Imhoo
-
Model Number:
-
M20970-1
-
Supply Voltage:
-
300V
-
Operating Temperature:
-
0 to 40℃
-
Dimensions:
-
4.5''
-
Function:
-

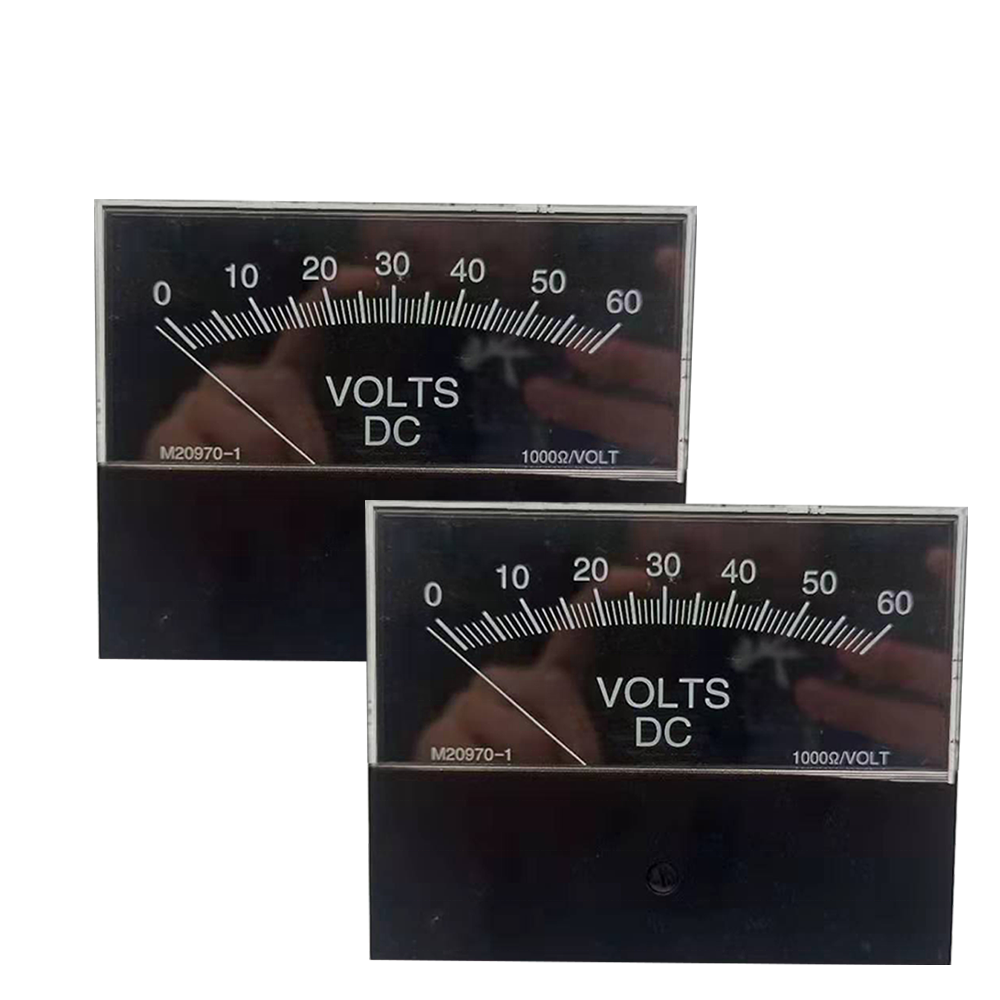

Panel Meter Voltmeter
-
Model Size:
-
4.5''
-
Full Scale deflection angle:
-
90°
-
Operating Humidity Range:
-
25 to 80%RH
-
Storage Temperature Range:
-
-10~+50℃
-
Storage Humidity Range:
-
25 to 80%RH
-
OEM&ODM:
-
Support
-
Certificate:
-
CE ROHS
-
Features:
-
High Temperature Resistance
-
Sample Time:
-
7 Days
Quick Details
-
Measuring Range:
-
DC60V/FS.DC60V
-
Accuracy Class:
-
1.5~2.5
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Imhoo
-
Model Number:
-
M20970-1
-
Supply Voltage:
-
300V
-
Operating Temperature:
-
0 to 40℃
-
Dimensions:
-
4.5''
-
Function:
-
Panel Meter Voltmeter
-
Model Size:
-
4.5''
-
Full Scale deflection angle:
-
90°
-
Operating Humidity Range:
-
25 to 80%RH
-
Storage Temperature Range:
-
-10~+50℃
-
Storage Humidity Range:
-
25 to 80%RH
-
OEM&ODM:
-
Support
-
Certificate:
-
CE ROHS
-
Features:
-
High Temperature Resistance
-
Sample Time:
-
7 Days
|
Model
|
M20970-1
|
|
Model Size
|
4.5''
|
|
Range
|
AC1500A/FS.AC5A
|
|
Full Scale deflection angle
|
90°
|
|
Withstand Voltage
|
50Hz,2000V for one minute
|
|
Operating Temperature Range
|
0 to 40℃
|
|
Case Material
|
Base Material:ABS (environmental protection)
|
|
|
Front cover material:Acrylic resin
|
|
Payment
|
L/C,D/A,D/P,T/T,MoneyGram
|
|
Safety Requirements
|
1.Structural requirements are in accordance with (GB/T7676-98;IEC60092-50) for safety of voltage test, insulation and other.
|
|
|
2.Reinforced insulation,vetween electrical circuit and case.
|
|
|
3.Indoors, Altitudes up to 2000m, Pollution degree 2.
|
|
|
4.Measurement category III (Measurement category is not applied for non-JIS products)
|
|
|
5.Maximum working voltage: 300V for DC meters,AC meters(Mean rectifier type), Wattmeters,Varmeters,Power factor meters and
Frequency meters 600V for AC meters(Moving iron type) |
|
Panel Cutout Dimensions (mm)
|
|
|
|
|
|
|
||||||
|
Model Size
|
A
|
B
|
C
|
D
|
E
|
F
|
||||||
|
2.5''
|
23.75
|
23.75
|
23.75
|
23.75
|
3.5
|
54.5
|
||||||
|
3.5''
|
28.5
|
28.5
|
28.5
|
28.5
|
3.5
|
66.5
|
||||||
|
4.5''
|
50.8
|
50.8
|
51.2
|
39.2
|
3.5
|
71
|
||||||
|
Panel Dimensions(mm)
|
|
|
|
|
|
|
||||||
|
Model Size
|
G
|
H
|
L
|
K
|
J
|
|
||||||
|
2.5''
|
23.75
|
23.75
|
23.75
|
23.75
|
3.5
|
|
||||||
|
3.5''
|
28.5
|
28.5
|
28.5
|
28.5
|
3.5
|
|
||||||
|
4.5''
|
50.8
|
50.8
|
51.2
|
39.2
|
3.5
|
|
||||||
