Could customize the carton box dimensions and logo printing.
Tape core printing is also OEM.
- Product Details
- {{item.text}}
Quick Details
-
Design Printing:
-
No printing
-
Material:
-
PVC
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Yongle
-
Model Number:
-
HX9837
-
Thickness:
-
0.12-0.15mm, 0.12-0.15mm
-
Application:
-
masking for painting
-
Width:
-
6mm,9mm,19mm
-
Length:
-
33m,55m,66m
-
Tensile Strength:
-
20N/cm
-
Elongation at break:
-
100%
-
Color:
-
Transparent blue
-
Certificates:
-
Rosh
-
Temperature resistance:
-
163 degrees 60 min
-
Sample:
-
available
Quick Details
-
Adhesive:
-
Acrylic
-
Adhesive Side:
-
Single Sided
-
Adhesive Type:
-
Pressure Sensitive
-
Design Printing:
-
No printing
-
Material:
-
PVC
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Yongle
-
Model Number:
-
HX9837
-
Thickness:
-
0.12-0.15mm, 0.12-0.15mm
-
Application:
-
masking for painting
-
Width:
-
6mm,9mm,19mm
-
Length:
-
33m,55m,66m
-
Tensile Strength:
-
20N/cm
-
Elongation at break:
-
100%
-
Color:
-
Transparent blue
-
Certificates:
-
Rosh
-
Temperature resistance:
-
163 degrees 60 min
-
Sample:
-
available
Product Description

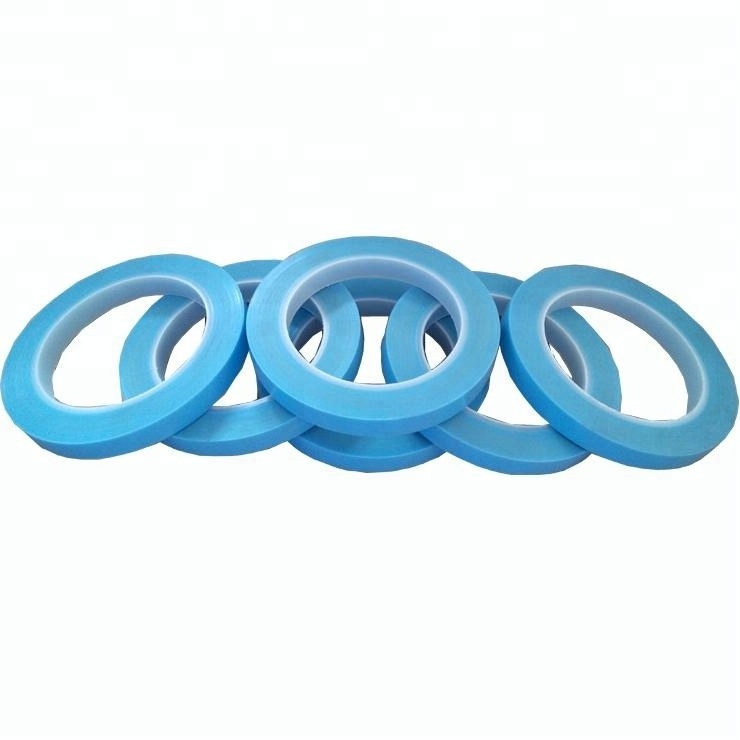

Temperature-Resistant Trim masking tape
Design for masking on painting,This tape will perform in the pressence of 163℃ temperatures for at least 60 minutes,and ban be removed without adhesive transfer.Excellent adhesion to wide variety of surfaces,Leaves no residue upon removal,Meets the requirements of RoHS 2002/95/EC.
Specifictions
|
PROPERTY
|
TEST METHOD
|
UNIT
|
TEST METHOD
|
|||
|
Tensile Strength
|
0.13
|
mm
|
ASTM-D-1000
|
|||
|
Tensile Strength
|
20
|
N/cm
|
ASTM-D-1000
|
|||
|
Elongation at break
|
100
|
%
|
ASTM-D-1000
|
|||
|
180°Peel strength to steel
|
1.5
|
N/cm
|
ASTM-D-1000
|
|||
|
Content of Heavy Metal:
|
|
|
|
|||
|
Lead,Cadmium
|
30
|
ppm
|
US EPA3052
|
|||
|
Mercury,Chromium
|
10
|
ppm
|
US EPA3060A
|
|||
|
Polybrominated biphenyl
|
10
|
ppm
|
US EPA3540C
|
|||
RECOMMENDED USES:
Preferred where tape must conform and follow contours without wrinking or tearing.It is used when flake resisance and removal without adhesive transfer is important.
STANDARD SIZES
|
Width
|
Length
|
Core
|
||
|
6mm
|
33m
|
76mm
|
||
|
9mm
|
55m
|
76mm
|
||
|
19mm
|
66m
|
76mm
|
||
|
Other sizes and cores are available.Consult factory.
|
|
|
||
HX9637
HX9737
HX9837
|
Code
|
Total thickness
(mm)
|
Tensile Strength
(N/cm)
|
Elongation at break(%)
|
Adhesive Strength(N/cm)
to steel
|
Color
|
|
HX9637
|
0.15
|
20
|
100
|
1.5
|
Green
|
|
HX9737
|
0.12
|
15
|
100
|
1.5
|
Transparent Blue
|
|
HX9837
|
0.12
|
15
|
100
|
1.5
|
Orange
|
Detailed Images
Packing & Delivery
Individual package
Certifications
Our Company
With sound thchnical capability, powerful R&D capacity, high quality R&D team and complete lab equipment, we invest havily in R&D and production.
Special attention is paid on the development and production of PVC adhesive tape and other high balue-added special adhesive tape, so as to extend the product range to meet the needs of the customers.
Special attention is paid to the development of new products, to reinforce our competitiveness in the tape industry.
Top experts at home and abroad are engaged long-term as technical consultants.
Strict quality measures are in place at every stage, from raw material purchase, production process to the testing of final products, to ensure that the products meet our quality standards. Each process must pass strict tests, all data must be scientifically demonstrated, product quality is strictly controlled in every detail.
