Quick Details
-
Material:
-
polypropylene
-
Weight:
-
depens on the size
-
Size:
-
5to 70 inch or customized length
-
Power:
-
NO
-
Weight (KG):
-
0.5 kg
-
After-sales Service Provided:
-
No after-sales service
-
End covers:
-
DOE, 215 end cap, 222 end cap, 34 end cap, 304 stainless steel screw
-
OD:
-
55 ~ 115mm
-
ID:
-
28 mm,30 mm
Quick Details
-
Core Components:
-
Air filter
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SENBAO
-
Material:
-
polypropylene
-
Weight:
-
depens on the size
-
Size:
-
5to 70 inch or customized length
-
Power:
-
NO
-
Weight (KG):
-
0.5 kg
-
After-sales Service Provided:
-
No after-sales service
-
End covers:
-
DOE, 215 end cap, 222 end cap, 34 end cap, 304 stainless steel screw
-
OD:
-
55 ~ 115mm
-
ID:
-
28 mm,30 mm

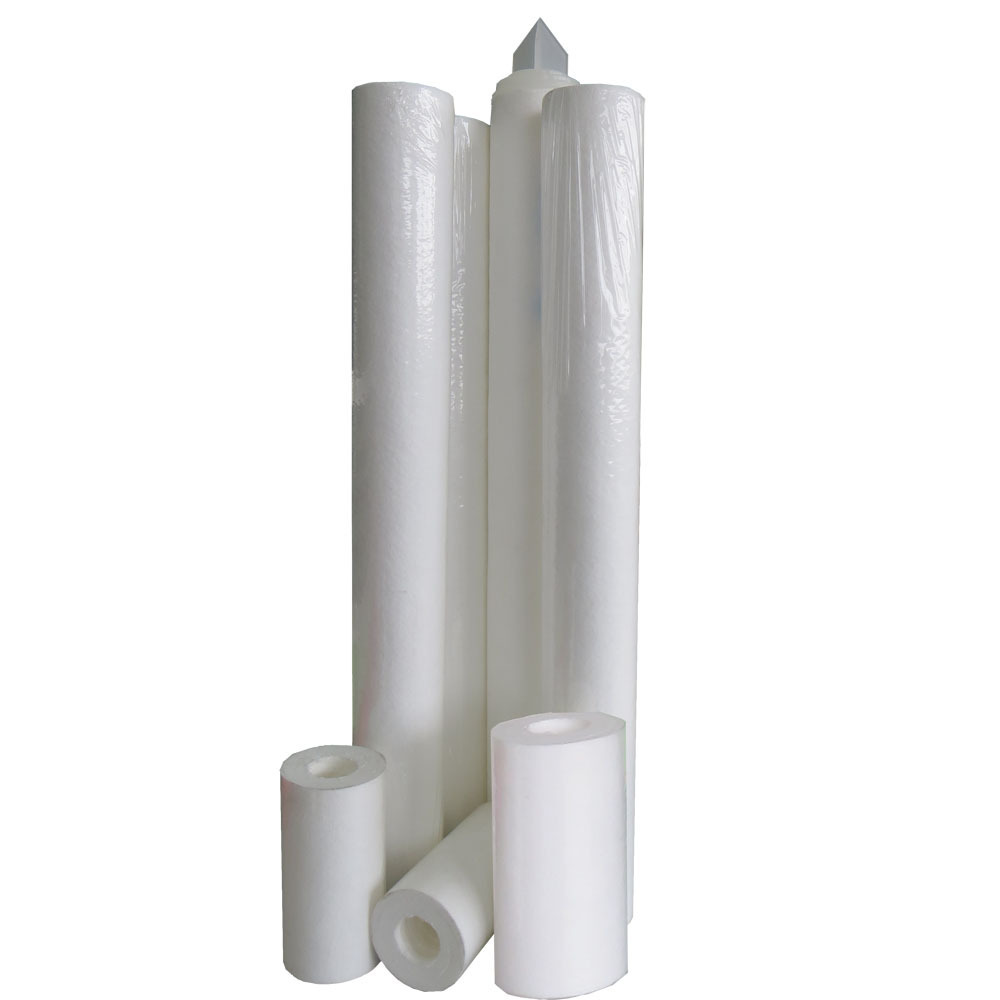

5 micron filter 20 inch Sediment PP Melt Blown Filter Cartridge For Water Filter System
Product Description
1. Introduction
“SENBAO” PP melt blown filter cartridge is made
from nontoxic and odorless polypropylene particles which are heated, melted, sprayed,
drawn and formed into tubular cartridge. It is characterized by excellent filter precision,
large flow, slight pressure difference, high capacity of dirt,
small
volume, high pressure resistance, corrosion resistance, etc.
Equipped with six 3spinneret melt blown production lines, we can produce
15,000pcs of melt blown filter
cartridges
with excellent quality.
2. Applications
Drinking water filtration ,
Household Purifier Filtration,
Prefiltration for RO
Electronic, electronic & power Industries: pure water, gas,
electroplates
liquid, presswork and so on.
Chemical & petrochemical Industries: solvent, coatings, magnetism slurry, wash and so on.
Grocery Industry: food, drink, drinking water, alcohol and so on.
3. Material
Filtration materials: polypropylene (smooth, shallow grooved, deep grooved)
Core: polypropylene, 304 stainless steel
End caps: DOE, 215 end cap, 222 end cap,34 end cap
4. Specifications (Unusual specifications can be manufactured as per the order)
Length: 5″,
10″
,
20″
,
30″
,
40″
,
50″
OD: 45 ~
120mm
ID: 20 mm,
28 mm
,
30 mm
,
32 mm
,
34 mm
,
38 mm
,
60 mm
,
90 mm
Precision: 0.5μm,
1μm
,
5μm
,
10μm
,
20μm
,
30μm
,
50μm
,
100μm
5. Main Performances
a. Precision & Flow
|
Filtration precision(μ)
|
1
|
3
|
5
|
10
|
20
|
30
|
50
|
|
|
Initial precision(μ)
|
10-15
|
15-25
|
25-35
|
30-40
|
35-50
|
40-60
|
60-90
|
|
|
Max particle(μ)
|
15
|
25
|
35
|
40
|
50
|
60
|
90
|
|
|
Flow(L/min)
|
10
|
14
|
17
|
20
|
24
|
28
|
32
|
Note: a.Length of tested filter cartridge is 10″, pressure difference is 0.02MPa,
and the test media is clean water.
Other filters are calculated at the ratio mentioned above accordingly.
and the test media is clean water.
Other filters are calculated at the ratio mentioned above accordingly.
b. Max. Pressure-resistance ≤ 0.5MPa; Max. Intensity of pressure: 0.2MPa
c. The highest operation temperature≤60℃
6.Models
|
Models
|
Introduction
|
|
PP-5-10
PPF-5-10
BPP-5-10
PPW-5-10
PPG-5-10
|
PP melt blown filter cartridge, 5u&10’’
PP melt blown filter cartridge with core, 5u&10’’
PP melt blown filter cartridge (Jumbo; Big Blue), 5u&10’’
Shallow grooved PP melt blown filter cartridge, 5u&10’’
Deep grooved PP melt blown filter cartridge, 5u&10’’
|
Our PP melt blown filter cartridges are NSF certified.
