- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Yueer
-
Brand:
-
Yue Er
-
Body material:
-
Nylon
-
Connection:
-
Female G
-
Voltage:
-
DC24V/AC220V
-
Pressure:
-
0.1-1.0Mpa
-
Medium:
-
water
-
Water Temperature:
-
≤42℃
-
Surrounding Tenperature:
-
≤52℃
-
Sealing:
-
NBR
-
Size:
-
3/8in-2in
Quick Details
-
Port Size:
-
3/8in-2in
-
Warranty:
-
1year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Yueer
-
Brand:
-
Yue Er
-
Body material:
-
Nylon
-
Connection:
-
Female G
-
Voltage:
-
DC24V/AC220V
-
Pressure:
-
0.1-1.0Mpa
-
Medium:
-
water
-
Water Temperature:
-
≤42℃
-
Surrounding Tenperature:
-
≤52℃
-
Sealing:
-
NBR
-
Size:
-
3/8in-2in
Get Quote and Contact Supplier
Product detail
Pressure: 0.1-1.0MPa
Flow: 035D 2.0m2/h，050D 3.0m3/h
075D 5.0m3/h，100D 9.0m3/h
Port size: 3/8",1/2",3/4" ,1"
Port thread: Female G BSP, NPT(customaization)
Orifice: DN10 DN15 DN20 DN25
Voltage: AC220VIAC1 10VIAC24V,50/60Hz
DC24V/DC12V/DC9V DC Latching
Material:
Body---------reinforced nylon
Sealring-NBR .
The movable iron core-- -stainless steel 430F
The static iron core-----stainless steel430F
Springs-------- SUS304
Shading coil------red copper
|
Type
|
Length
|
Width
|
Height
|
|
035D
|
68mm
|
40mm
|
100mm
|
|
050D
|
68mm
|
40mm
|
102mm
|
|
175D
|
112mm
|
82mm
|
132mm
|
|
100D
|
112mm
|
83mm
|
136mm
|
|
......
|
......
|
......
|
......
|

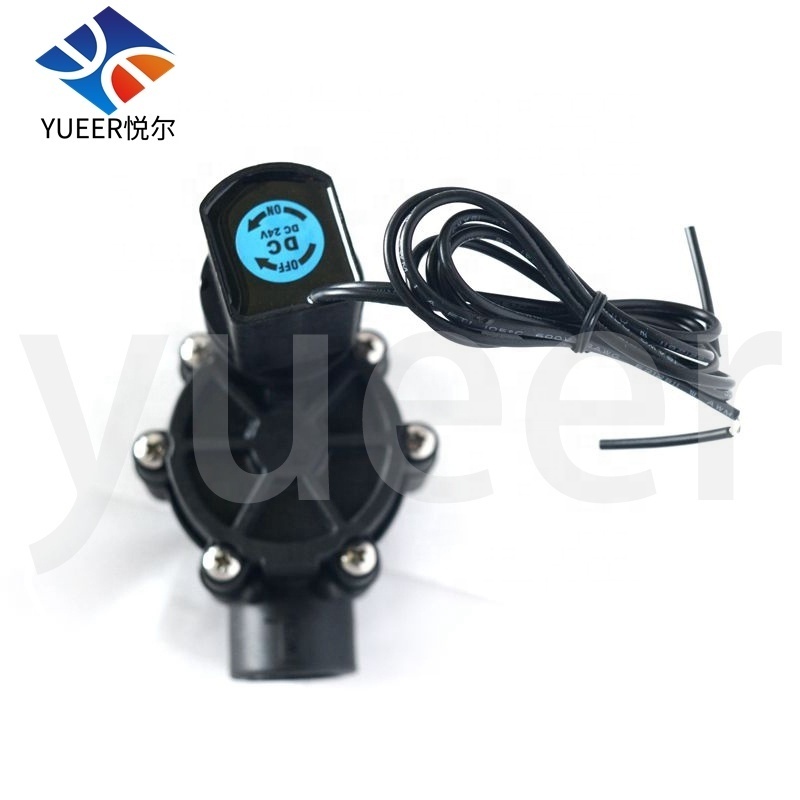

Hydraulic control valve, with solenoid valve control system, pressure-driven electrical signal to control opening/closing. Plastic valve, carefully crafted to meet industrial design standards, can be retrofitted on site, BSP threaded connection, strong durability, resistance to pesticides, water and fertilizer corrosion and cavitation, Y-type valve body adopts full-bore high-flow design, large overflow, and water head Low loss, combined with integral ultra-durable flexible diaphragm and pilot valve core, the valve closes smoothly and slowly, the required driving pressure is low, and the diaphragm is effectively prevented from corrosion and deformation. Well-designed and easy-to-use for easy online inspection and maintenance
Solenoid valve installation instructions
1. Clean and flush the impurities and dirt in the pipeline before installation; if the thread needs to be wrapped with raw material tape and other fillers, pay attention not to drop the debris into the pipeline to prevent the solenoid valve from being blocked;
2. When installing, pay attention to keeping the arrow direction on the valve body consistent with the flow direction of the medium; if there is reverse pressure, a check valve must be installed;
3. In order to ensure and extend the service life of the solenoid valve, generally the coil is installed upwards; when space or conditions are limited, some series allow vertical installation;
More details please contact us.......
